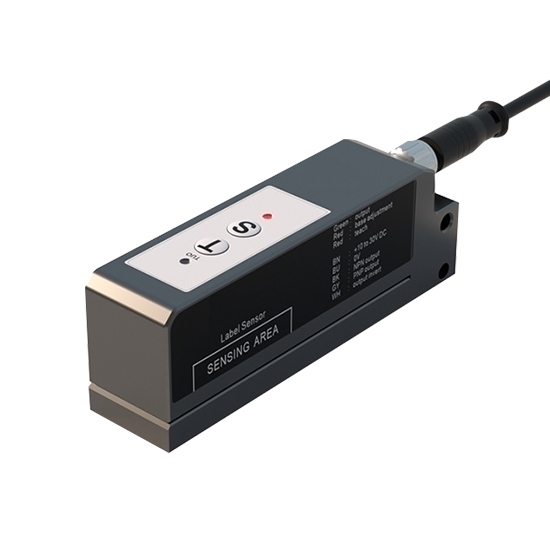

Capacitive Label Detection Sensor, NPN+PNP Output

This capacitive label detection sensor is an advanced industrial component designed for reliable label presence detection in demanding automation environments. Its robust differential capacitance sensing principle allows it to handle a wide array of label materials with high accuracy. The labeling machine sensor integrates user-friendly intelligent features for simplified setup and maintenance, making it a versatile and efficient choice for modern production lines.

Specification

Feature

• Broad Label Compatibility: The capacitive label detection sensor is engineered for strong applicability, capable of stably detecting transparent, non-transparent, paper, and PVC composite labels without issues.
• Intelligent Self-Learning: Equipped with a one-touch self-learning function, the label eye sensor automatically learns and sets the optimal sensitivity for the specific label and gap, ensuring peak performance with minimal user effort.
• Dual Output Flexibility: This label detection sensor provides both NPN and PNP output signals simultaneously, offering high adaptability and seamless integration with a vast range of PLCs and control system architectures.
• High-Speed Response: With a fast switch frequency and rapid response time, the capacitive label sensor meets the demands of high-speed applications, guaranteeing accurate detection without slowing down the production process.

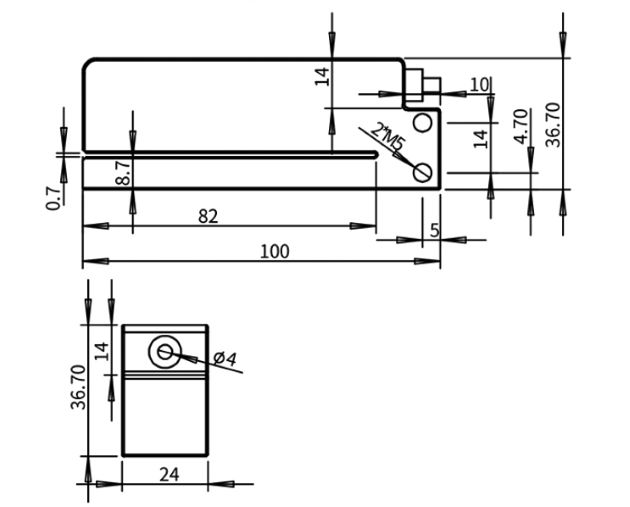

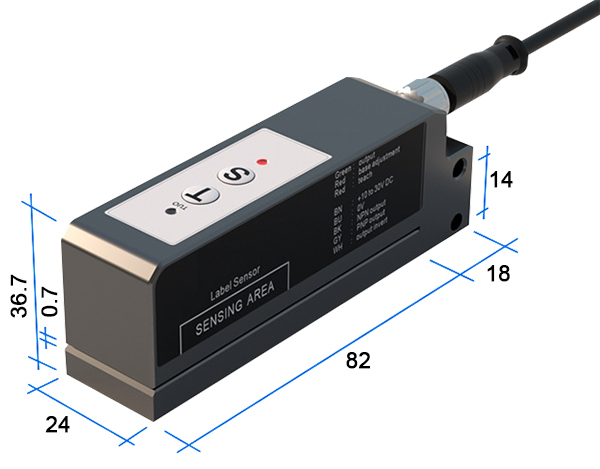

Dimension (Unit: mm)

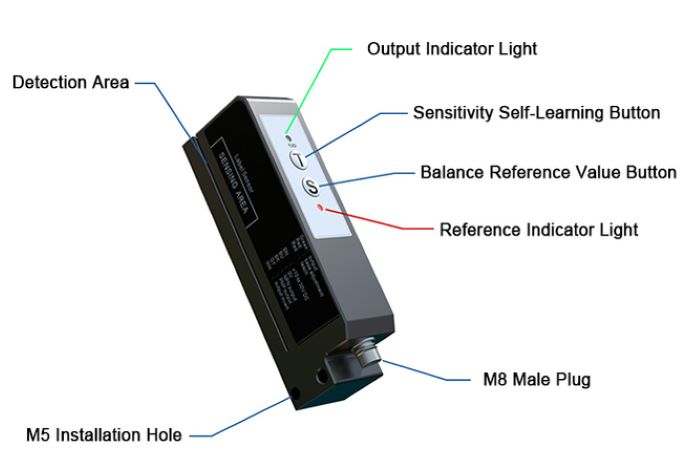

Details

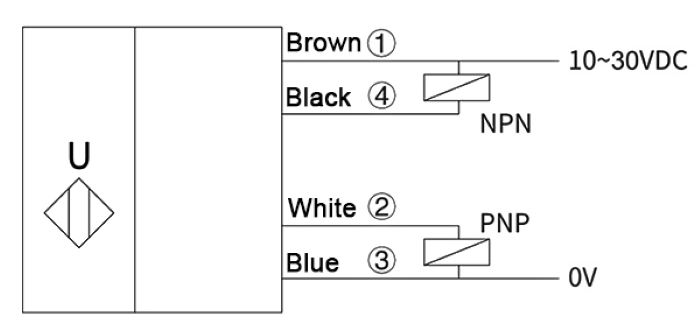

Wiring Diagram

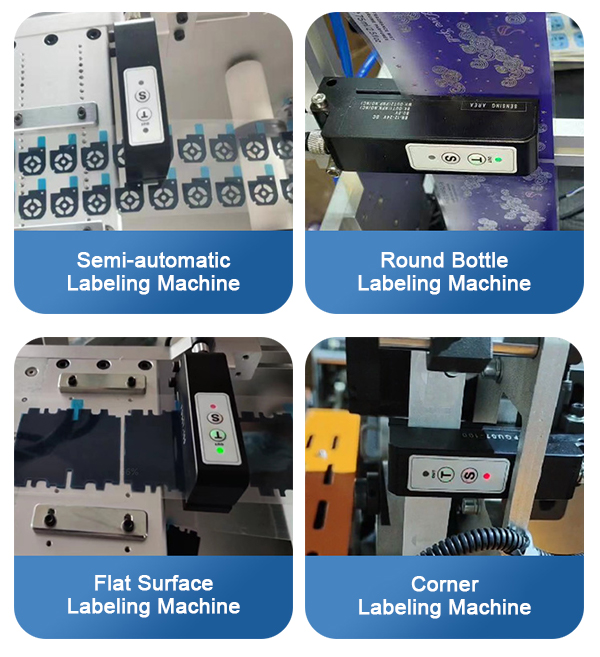

Application

Tips: Capacitive Label Detection Sensor Operating Instructions

Capacitive label detection sensor features intuitive button controls for calibration and setup. The following instructions explain the functions of the S and T keys.

S Key - Setting Balance/Baseline & Output Mode

1. Set Balance Value: Remove the label from the detection slot. Press and hold the 'S' key for 3 seconds. The indicator light will blink and then become steadily lit. If the light does not stay on, please repeat the operation.
2. Switch Output Mode: To toggle the output signal between Normally Open (NO) and Normally Closed (NC), press and hold the 'S' key for more than 6 seconds.

T Key - Intelligent Sensitivity Setting (Self-Learning)

1. Preparation: Insert the label into the sensor's detection slot, ensuring it is within the effective sensing area.
2. Teaching/Learning: Press and hold the 'T' key for 3 seconds. The indicator light will blink continuously. Release the key; the sensor will enter a 10-second setup state.
3. Action: Gently and slowly pull the label back and forth through the slot. It is best to keep the label gaps parallel to the detection slot and move it steadily, ensuring the movement passes at least five label gaps. The indicator light will stop blinking once the setting is complete.
4. Important Note: During the setup state, the label must remain inside the detection slot and must not be completely removed.
