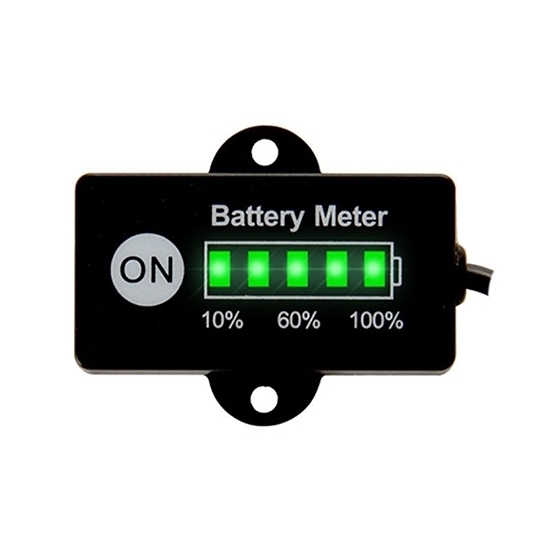

LED Battery Charge Indicator, Lead Acid/Lithium Battery

Buy LED battery level indicator for lead-acid and lithium batteries. Displays battery level instantly on power-up. Quick and easy to install, designed for golf carts, RVs, forklifts, and electric vehicles.

Specification

Feature

• Wide Battery Compatibility: Suitable for Lead Acid, LiFePO4, and LiCoO2 batteries.
• Power-On Detection: LED battery charge indicator automatically detects the current remaining battery level on power-up.
• Display: 5 LED battery lights indicate 10 battery levels via blinking and steady lighting.
• Battery Level Display: LED battery indicator shows real-time remaining battery capacity.
• Power Control: Turn on or off using the ON button.
• Voltage Detection: LED battery gauge automatically detects 12V or 24V systems; voltage above 16.5V is recognized as 24V, below 16.5V as 12V.

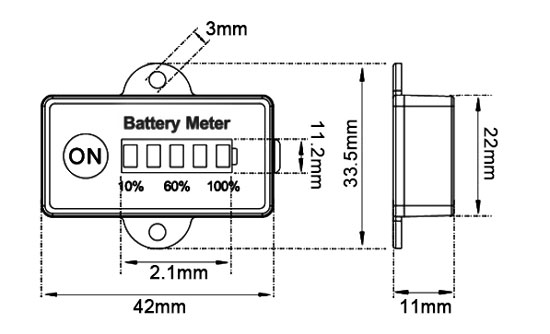

Size (unit: mm)

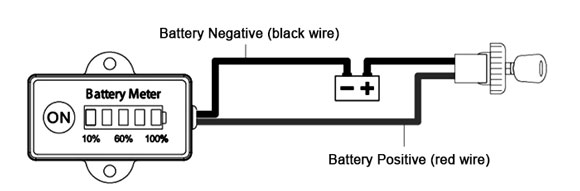

Wiring

Application

Tips: How to install the LED battery charge indicator?

The battery gauge can be installed easily using two methods: secure it with screws for a permanent fit, or use double-sided adhesive for a quick, tool-free attachment. Choose a flat, dry surface and ensure the connections to the battery are correct and stable.
