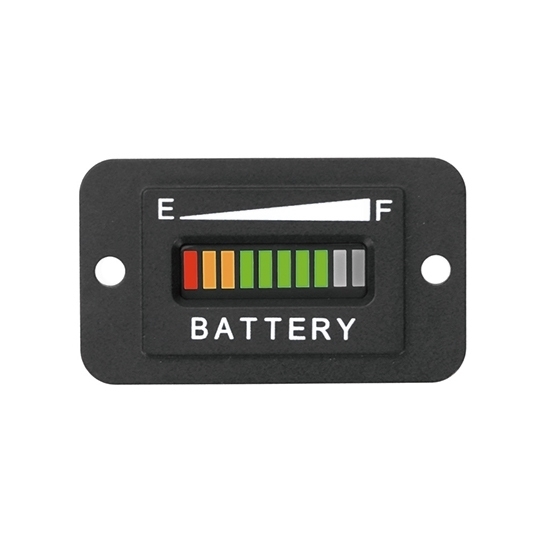

Electric Motorcycle Battery Level Indicator , IP67, 48V

5 out of 5 based on 1 reviews | Write a review

$56.66

Electric motorcycle battery level indicator for sale. Works with 48V batteries, IP67 waterproof. Features clear 3-color battery lights and screw-mounted design for easy installation. Automatically shows battery level at power-on, with delayed charge/discharge display and low battery warning. Ideal for RVs golf carts, forklifts, and other lead acid battery applications.

SKU: ATO-BI-EM

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Buy battery indicator online. Electric motorcycle battery gauge for 48V batteries, automatically displays charge level, monitors charging and discharging, and provides low battery alerts. Easy to install and suitable for RVs, golf carts, and forklifts.

Specification

Model	ATO-RL-BI003-1
Display Method	LED
Operating Current	≤100mA
Operating Temperature	-20℃–75℃
Operating Voltage	DC 9-85V
Housing Material	PC545
IP Rating	IP67
Display Area Size	25.5 * 7.6mm
Overall Dimensions	53.1 * 31.1 * 34.8mm
Panel Cutout Dimensions	36 * 24mm
Weight	28.1g

Feature

Three-color LED Indicator: Clear battery level display with three different battery colors.
Power-on Display: The electric motorcycle battery indicator automatically displays current voltage on power-up.
Low Battery Alerts: Second yellow LED flashing at 20%, and first red LED and second yellow LED flashing alternately at 10%.
Discharge Delay: 155s delay prevents the battery gauge rapid display changes during heavy load.
Charging Indication: Flowing LED display, adding one segment every 200s while charging.
Installation: Screw-mounted design for easy installation.
Reverse Polarity Protection: The electric motorcycle battery level meter triggers reverse polarity protection if wired incorrectly.
Battery Compatibility: Suitable for liquid lead-acid batteries.

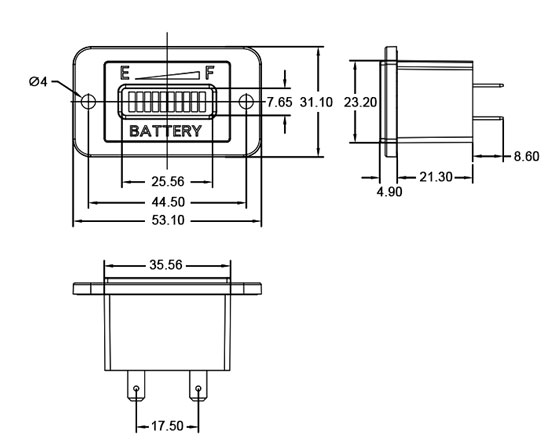

Size (unit: mm)

Motorcycle battery level indicator size

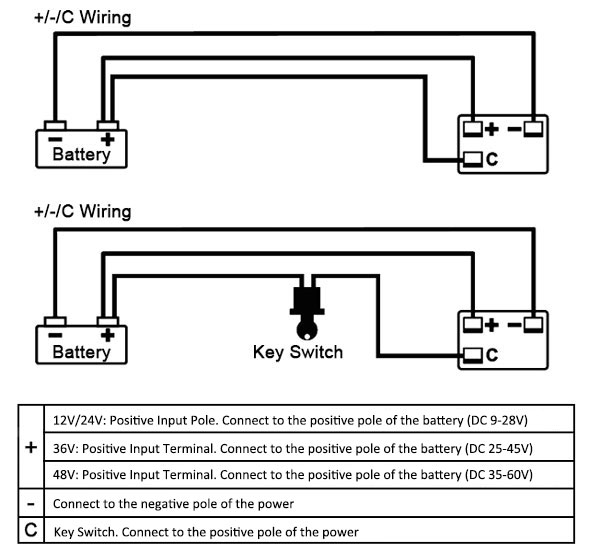

Wiring

Motorcycle battery level gauge wiring

Application

Battery indicator application

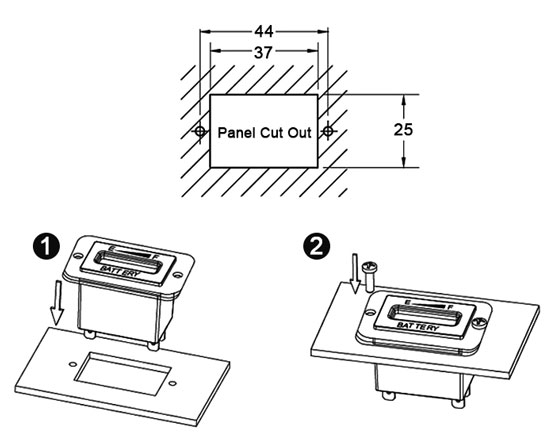

Tips: How to install the electric motorcycle battery level indicator?

The battery level indicator comes with a screw-mounted design for easy and secure installation. Follow these steps:

Motorcycle battery level indicator installation
