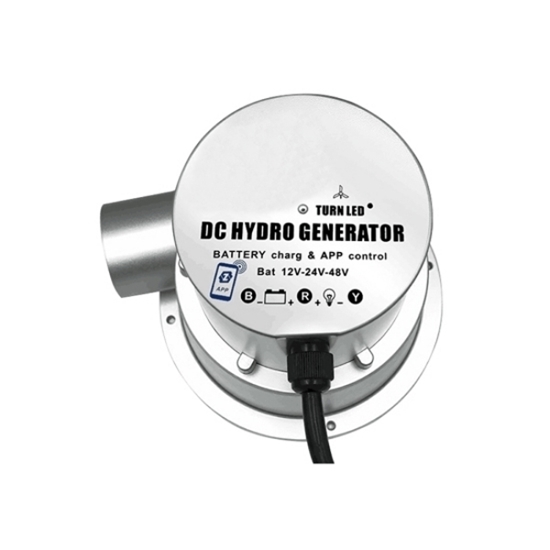

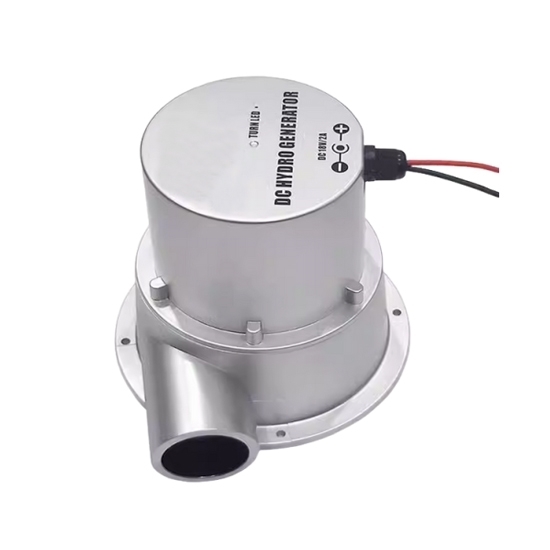

12V/24V/48V Micro Hydro Generator, 36W/50W, MPPT

Note: This MPPT micro hydro generator cannot be used for drinking water.

The micro hydropower turbine is equipped with advanced MPPT technology, which can maximize energy conversion efficiency. It can also be remotely controlled directly via mobile phone, allowing users to monitor power generation status anytime and anywhere and flexibly adjust charging voltage.

Specification

Features

• Integrated MPPT Technology: Advanced maximum power point tracking system in hydro power generator maximizes energy conversion efficiency for 12V/24V/48V battery systems
• Bluetooth Smart Monitoring: Enables real-time performance tracking and remote voltage adjustment via mobile connectivity
• Compact & Durable Construction: Features high-strength ABS and stainless steel components making portable water turbine generator ideal for residential and outdoor installations

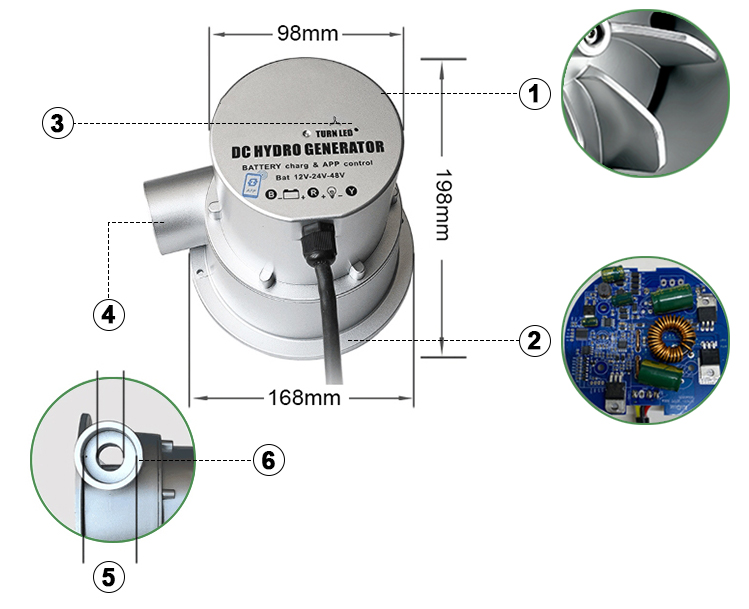

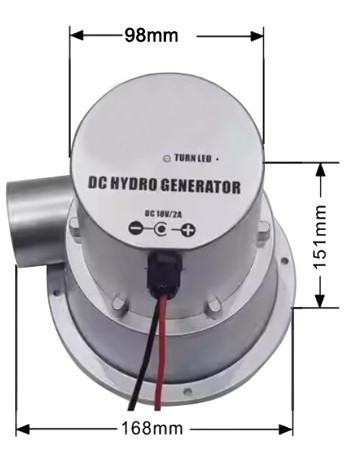

Dimension & Details

1. Impeller: Using water flow to drive generators to convert water energy into electricity to achieve green and sustainable power supply.
2. MPPT board: Intelligent charging management, real-time tracking and optimization of the maximum power output of hydropower generation.
3. LED Indicator: When mini hydro turbine generator wheel spins, the LED flashes to clearly show operating status.
4. 20mm Impact Outlet: Designed with a 20mm diameter outlet to ensure efficient water impact.
5. 40mm Water Inlet: Built with a 40mm inlet, optimized for smooth water entry.
6. Efficient Flow Conversion: The upgraded inlet design maximizes kinetic energy transfer from water to electricity and can be connected directly to a 40mm water pipe.

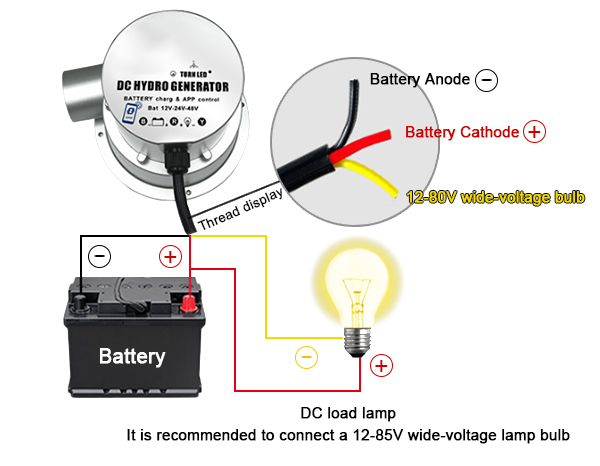

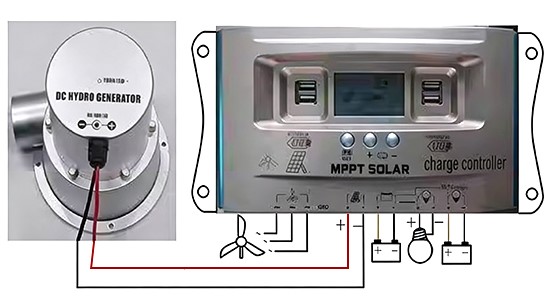

Wire Diagram

Installation Requirements

1. Ensure a vertical drop of at least 4 meters with a filled 4 cm pipe for proper operation.
2. Let the water from the 4-meter pipeline strike the turbine wheel to drive it efficiently.
3. The turbine wheel should face downward to prevent water from entering the machine.
4. Install the unit in a ventilated area that is sheltered from direct sun and rain.
5. Secure the equipment firmly in place to avoid movement or collisions.
6. Do not immerse the machine in water under any circumstances.

Application

Tips: What is an MPPT micro-hydro generator?

An MPPT water turbine generator is a small-scale power generation system that converts the kinetic energy of flowing or falling water into electricity, typically used for homes, cabins, or small communities. Unlike large hydroelectric dams, small water turbine requires only a modest water flow with a drop in elevation, making it ideal for streams or rivers in rural or off-grid areas. By driving a turbine connected to a generator, it produces renewable, continuous, and reliable energy, often used to charge batteries or directly supply household electrical needs.
