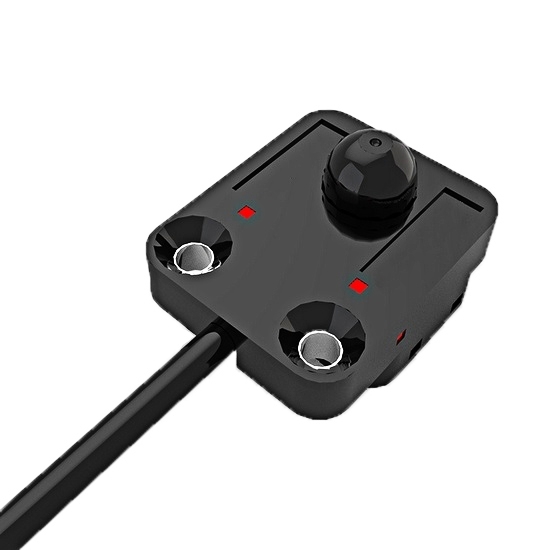

Micro Photoelectric Sensor, Button Type, 12V-24VDC

Built with stainless steel M3 bracket, 3-side LED indicators, and IP40 protection. Fast 1ms response and 5 million-cycle lifespan ensure reliable, long-term operation in demanding environments.

Specification

Features

1. Accurate Detection: Detects various target materials regardless of color, texture, or reflectivity, ensuring stable and precise sensing.
2. Extended Lifespan: Over 5 million mechanical operations deliver exceptional durability and long-term reliability.
3. Stainless Steel Mounting Bracket: M3 steel bracket enhances structural strength and installation stability.
4. Multi-Directional LED Indicators: Four LEDs on three sides provide clear, visible status from multiple viewing angles.
5. Specialized Application: Ideal for detecting the presence of semiconductor wafer carriers (FOUP) in automation environments.

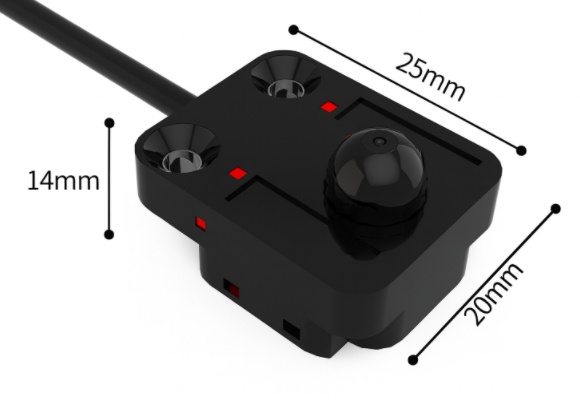

Dimension

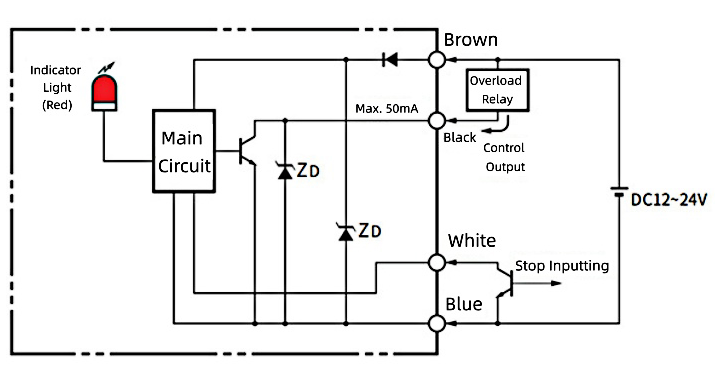

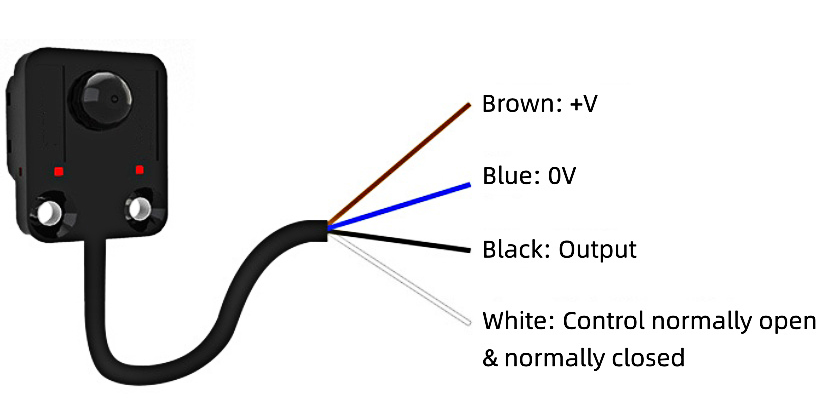

Wiring Diagram

Tips: How do surface color and reflectivity affect photoelectric sensor performance?

Surface color and reflectivity directly influence the amount of light reflected back to the sensor. Dark or matte surfaces absorb more infrared light, resulting in weaker signals, while bright or highly reflective surfaces may produce stronger reflections or even false triggering due to glare. Variations in these properties can cause fluctuations in detection accuracy if the sensor does not compensate for them. Advanced photoelectric sensors, like the ATO Button-Type Miniature Photoelectric Sensor, use intelligent signal-processing chips and high-quality IR LED modules to automatically adjust for these differences, ensuring stable and precise detection. This makes it ideal for reliable operation in diverse industrial automation applications.
