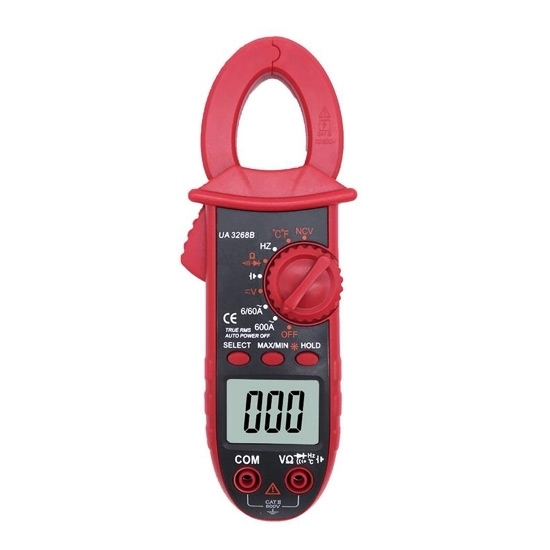

    Mini Clamp Meter, AC Current 600A, NCV/TRMS/Capacitance/Temperature Function

    5 out of 5 based on 1 reviews | Write a review
    The mini clamp meter is a digital clamp multimeter can be used to measuring AC current 0-600A, AC/DC voltage 0-600V, resistance 0-20MΩ, frequency 0-100kHz, capacitance 0-100mF and temperature -40℃~+1000℃ (-40℉~1832℉). Digital mini clamp meter has special functions of NCV and TRMS. The maximum jaw opening size is 28mm.
    SKU: ATO-CLAM-3268B
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Digital clamp meter has AC current range 0-600A, TRMS/NCV/temperature/capacitance functions, maximum jaw opening size 28mm, 4 digit display and maximum value 1999.


    Basics Model ATO-UA3268B
    Weight 160g
    Size (L*W*H) 185*51*25mm
    Display 4 digit LCD display
    Maximum display value 1999
    Power supply DC 3V, 2 AAA batteries
    Maximum jaw opening size 28mm
    Woring environment Temperature: 5℃~35℃ (41℉~95℉), relative humidity:<75%
    Storage temperature -10℃~+50℃ (14℉~122℉)
    Accessories A pair of test probes, a pair of temperature probes, a user manual, 2 AAA batteries
    Functions Item Range Accuracy
    AC current 600A ±(1.5%+5 digits)
    DC voltage 600V ±(1.0%+5 digits)
    AC voltage 600V ±(1.2%+5 digits)
    Resistance 20MΩ ±(1.0%+2 digits)
    Frequency 100kHz ±(1.5%+5 digits)
    Capacitance 100mF ±(4.0%+3 digits)
    Temperature -40℃~+1000℃ (-40℉~1832℉) ±(1.0%+3 digits)
    Special functions TRMS True RMS measurement for sine wave signal
    NCV Non-contact voltage test
    Diode test Display forward voltage value of diode
    On-off buzzer Continuity test buzzer
    Data hold Hold the reading when taking a measurement
    Automatic power off Automatic power off when 15 minutes no operation
    Overload protection Overload protection for 100% range
    Range selection Automatic range selection and manual range selection
    Backlight Backlight for LCD display
    Inspection light Inspection light for clamp operation

    Tips: Clamp meter NCV function, the Non-Contact voltage measurement
    Set the function range switch to the NCV position. At this time, the digital clamp meter displays 'NCV' and '----'symbols, and the top of the clamp meter is close to the object to be detected such as the mains phase line, the power switch and the outlet. When the voltage is detected to be greater than 110V (AC RMS), the meter lights up the corresponding signal strength indicator (high, medium and low) according to the detected signal strength, and the buzzer will give out alarm at different frequencies.

    1. Even if there is no indication, the voltage may still exist. Do not rely on non-contact voltage detectors to determine if there is voltage on the shield. Detection operations may be affected by socket design, insulation thickness and type of different factors.
    2. When the input voltage of the instrument input terminal, due to the existence of induced voltage, the voltage sensing indicator may also be bright.
    3. Sources of external environment interference (such as flash, motor, etc.) may falsely trigger non-contact voltage detection.
