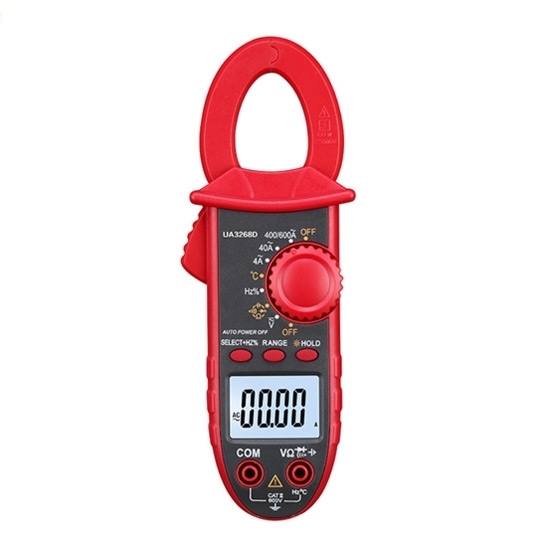

    Mini Clamp Meter True RMS AC/DC Current 600 amp

    5 out of 5 based on 1 reviews | Write a review
    $105.39
    $117.10
    The mini clamp meter is a digital clamp meter can be used to measuring AC/DC current 0-600A, AC/DC voltage 0-600V, capacitance 0-100mF, temperature -50℃~+1000℃ (-58℉~1832℉), resistance 0-60MΩ and frequency 0-10MHz. The maximum jaw opening size is 28mm. Digital AC/DC clamp meter has special functions of True RMS, diode test, backlight and inspection light.
    SKU: ATO-CLAM-3268D
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Digital clamp meter has AC/DC current (inrush current) range 0-600A, TRMS/temperature/capacitance functions, maximum jaw opening size 28mm, 4 digit display and maximum value 5999.

    Specification:

    Basics Model ATO-UA3268D
    Weight 160g
    Size (L*W*H) 185*51*25mm
    Display 4 digit LCD display
    Maximum display value 5999
    Power supply DC 3V, 2 AAA batteries
    Maximum jaw opening size 28mm
    Woring environment Temperature: 5℃~35℃ (41℉~95℉), relative humidity:<75%
    Storage temperature -10℃~+50℃ (14℉~122℉)
    Accessories A pair of test probes, a pair of temperature probes, a user manual, 2 AAA batteries
    Functions Item Range Accuracy
    DC current 600A ±(2.0%+10 digits)
    AC current 600A ±(2.0%+10 digits)
    Inrush current 600A ±(2.0%+10 digits)
    DC voltage 600V ±(0.8%+5 digits)
    AC voltage 600V ±(1.2%+5 digits)
    Resistance 60MΩ ±(0.8%+3 digits)
    Frequency 10MHz ±(0.5%+3 digits)
    Capacitance 100mF ±(3.0%+5 digits)
    Temperature -50℃~+1000℃ (-58℉~1832℉) ±(1.0%+4 digits)
    Special functions TRMS True RMS measurement for sine wave signal
    Diode test Display forward voltage value of diode
    On-off buzzer Continuity test buzzer
    Data hold Hold the reading when taking a measurement
    Automatic power off Automatic power off when 15 minutes no operation
    Overload protection Overload protection for 100% range
    Range selection Automatic range selection and manual range selection
    Backlight Backlight for LCD display
    Inspection light Inspection light for clamp operation

    Details

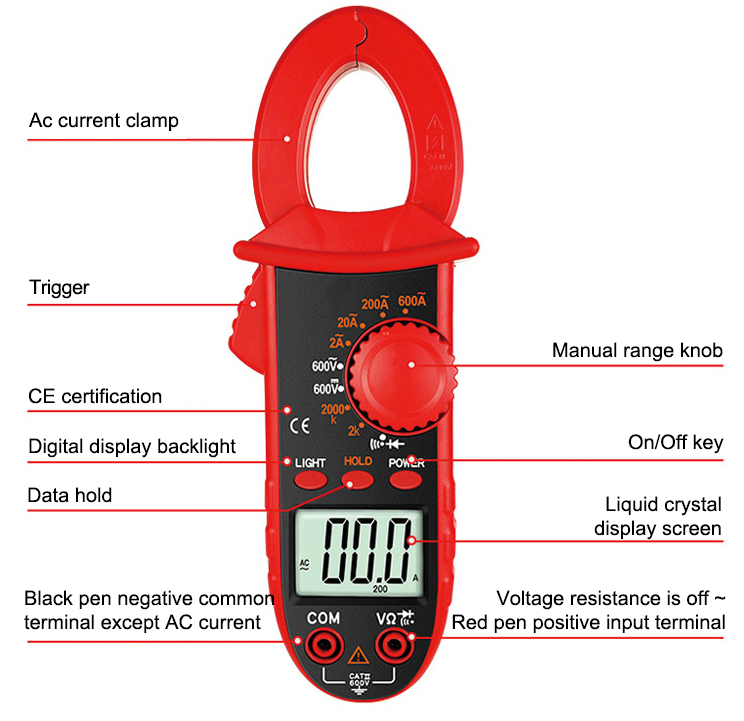

    Mini Clamp Meter Details

    Tips: What is the different between clamp meter and digital multimeter?
    In the industrial production process, some operating low-voltage equipment or circuits need to know the current situation at any time, but the equipment must be operated continuously. In order not to affect the production or bring unnecessary losses, it is impossible to connect the digital multimeter to the equipment in series after powering off, and then measure current in the circuit. Therefore, in order to measure the current without disconnecting the circuit, the clamp meter is developed from the basic digital multimeter. Although it is less accurate than a multimeter, it provides an effective reference standard for maintenance personnel. And it is simple and convenient to operate. Therefore, the difference between a clamp meter and a digital multimeter is that the way of measuring current. The clamp meter can directly measure the current in the line by pressing the trigger to open the jaws and placing the single line to be tested in the middle of the clamp without disconnecting the power line. While the ordinary digital multimeter measures the current, the multimeter black and red pointer string must be connected the power line in series.
