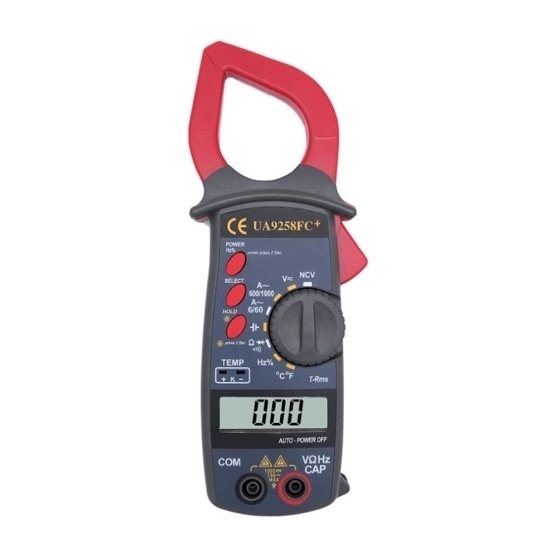

    Digital Clamp Meter AC 600A with Temperature/TRMS/NCV Function

    $89.98
    $99.98
    Digital clamp meter with temperature function has the measuring range of -50℃~+1000℃ (-58℉~1832℉), duty ratio 10%~90%, AC current 0-600A, AC/DC voltage 0-600V, resistance 0-60MΩ, frequency 0-10MHz and capacitance 0-100mF. The maximum jaw opening size is 36mm. Digital clamp meter also has special functin of non-contact voltage test and True RMS measurement for sine wave signal.
    SKU: ATO-CLAM-9258FC
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Promotion: If you buy ≥3pcs clamp meters at one time, you will get 10% discount.

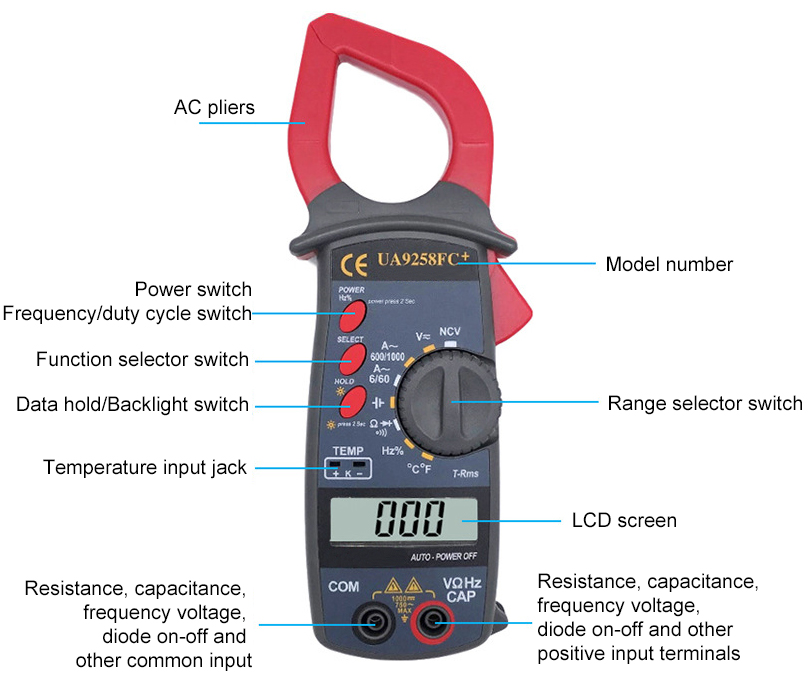

    Digital clamp meter has AC current range 0-600A, TRMS/NCV/temperature/capacitance functions, maximum jaw opening size 36mm, 4 digit display and maximum value 5999.

    Specification:

    Basics Model ATO-UA9258FC+
    Weight 380g
    Size (L*W*H) 210*67*36mm
    Display 4 digit LCD display
    Maximum display value 5999
    Power supply DC 9V, 6F22 battery
    Maximum jaw opening size 36mm
    Woring environment Temperature: 18℃~28℃ (64.4℉~82.4℉), relative humidity:<75%
    Storage temperature -10℃~+50℃ (14℉~122℉)
    Accessories A pair of test probes, a pair of temperature probes, a user manual, 6F22 battery
    Functions Item Range Accuracy
    AC current 600A ±(2.5%+10 digits)
    DC voltage 600V ±(0.5%+5 digits)
    AC voltage 600V ±(0.8%+5 digits)
    Resistance 60MΩ ±(1.2%+3 digits)
    Frequency 10MHz ±(0.3%+10 digits)
    Capacitance 100mF ±(5.0%+5 digits)
    Temperature -50℃~+1000℃ (-58℉~1832℉) ±(1.9%+6 digits)
    Duty ratio 10%~90% ±(0.5%+3 digits)
    Special functions TRMS True RMS measurement for sine wave signal
    NCV Non-contact voltage test, with buzzer and indicator
    Diode test Display forward voltage value of diode
    On-off buzzer Continuity test buzzer
    Data hold Hold the reading when taking a measurement
    Automatic power off Automatic power off when 15 minutes no operation
    Overload protection Overload protection for 100% range
    Range selection Automatic range selection and manual range selection
    Back light Back light for LCD display

    Tips:
