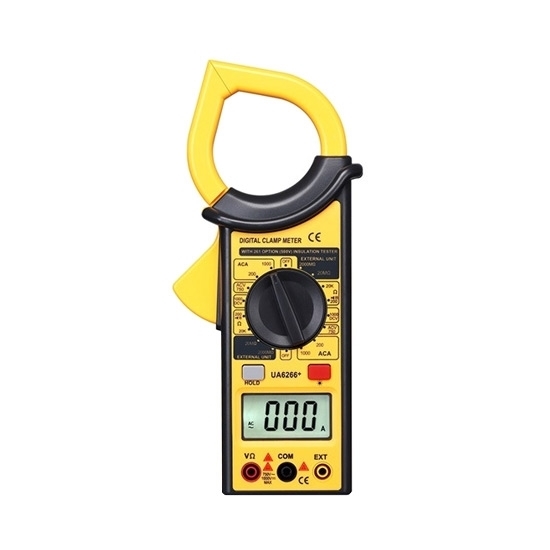

Clamp Meter for AC Current 1000A/AC Voltage 750V/DC Voltage 1000V

5 out of 5 based on 1 reviews | Write a review

$76.49

Old price: $84.99

The digital clamp meter is an AC clamp meter with AC current range 0-1000A, AC voltage range 0-750V, DC voltage range 0-1000V, resistance range 0-2000MΩ and maximum jaw opening size 55mm. AC clamp meter also has special functions of white backlight, automatic power off, manual range selection, data hold, diode test, on-off buzzer and overload protection.

SKU: ATO-CLAM-6266

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Digital clamp meter has AC current range 0-1000A, maximum jaw opening size 55mm, 4 digit display and maximum value 1999.

Specification:

Basics	Model	ATO-UA6266+
	Weight	310g
	Size (LWH)	2307037mm
	Display	4 digit LCD display
	Maximum display value	1999
	Power supply	DC 9V, 6F22 battery
	Maximum jaw opening size	28mm
	Woring environment	Temperature: 5℃~35℃ (41℉~95℉), relative humidity:＜75%
	Storage temperature	-10℃~+50℃ (14℉~122℉)
	Accessories	A pair of test probes, a user manual, 6F22 battery
Functions	Item	Range	Accuracy
	AC current	1000A	±(3.0%+10 digits)
	DC voltage	1000V	±(0.8%+3 digits)
	AC voltage	750V	±(1.2%+5 digits)
	Resistance	2000MΩ	±(5.0%+2 digits)
Special functions	Diode test	Display forward voltage value of diode
	On-off buzzer	Continuity test buzzer
	Data hold	Hold the reading when taking a measurement
	Automatic power off	Automatic power off when 15 minutes no operation
	Overload protection	Overload protection for 100% range
	Range selection	Manual range selection
	Backlight	Backlight for LCD display

Details

Tips:

Clamp Meter: Your Ultimate Tool for Electrical Testing

Learn how a clamp meter works and why it's an essential device for safe and efficient electrical troubleshooting.

Why a Clamp Meter is Essential for You?

Discover why a clamp meter is the ultimate tool for diagnosing and measuring electrical systems with ease and precision.

Existing reviews of Clamp Meter for AC Current 1000A/AC Voltage 750V/DC Voltage 1000V

Clamp meter suitable for carrying in the tool bag

I bought the clamp meter to test the current load on the AC wall socket. For anyone in the maintenance field, this is a great gauge that is small enough to fit in a tool bag.

From: Phomeda | Date: 09/01/2023

Was this review helpful? Yes No (0/0)
