    Nema 23 Stepper Motor Linear Actuator, 2 phase, 4A, 2Nm

    $209.54
    4 amp 2 Nm cheap price stepper motor linear actuator comes in Nema 23 frame size, special nut design and higher IP protection. It not only reduce cost but also reduce failure rate due to the less number of components and more simple construction.
    *
    *
    SKU: ATO-STEPL-42
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

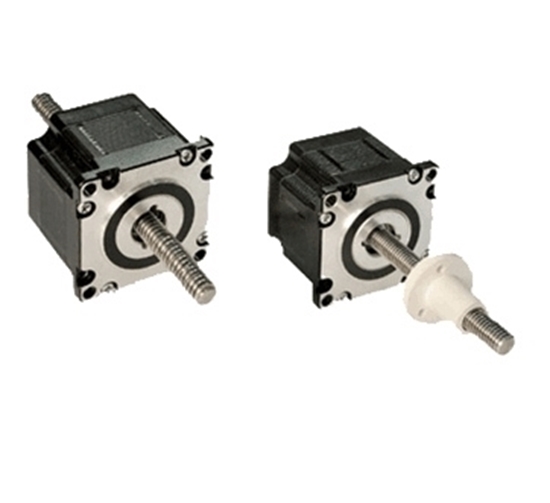

    This Nema 23 stepper motorl inear actuator has 2 phase stepper motor and 152mm length lead screw, available in external shaft style and non-captive shaft style version. Rated current of 4A and holding torque of 2 Nm, there are 9 different lead screw specifications for selection.

    Stepper Motor Linear Actuator Specification

    Model Type External Shaft Non-Captive Shaft
    57H280-4004AST 57H280-4004GTS
    Weight 2 kg
    Motor Length 80 mm
    Phase 2 phase
    Step Angle 1.8°
    Rated Current 4 A
    Resistance 0.65 Ω
    Holding Torque 2 Nm
    Rotor Inertia 400 g-cm2

    Select Leadscrew
    Choose your stepper motor linear actuator screw from one of the available options:

    Screw Diameter Lead Travel Per 1.8 Step
    (in) (mm) (in/rev) (mm/rev) (in/step) (mm/step)
    0.315 8 0.079 2 0.00039 0.01
    0.315 8 0.157 4 0.00079 0.02
    0.315 8 0.315 8 0.00157 0.04
    0.394 10 0.079 2 0.00039 0.01
    0.394 10 0.157 4 0.00079 0.02
    0.394 10 0.394 10 0.00197 0.05
    Note: Screw of 8mm diameter is made of copper, and the screw of 10mm diameter is made of plastic.

    Stepper Motor Linear Actuator Dimension (Unit=mm)

    1. Non-captive shaft style

    nema 23 non captive shaft stepper motor linear actuator dimension

    L=80mm

    2. External shaft style

    nema 23 external shaft stepper motor inear actuator dimension

    L=80mm

    Details

    Nema 23 Stepper Motor Linear Actuator Details

    Tips: Daily maintenance of stepper motor linear actuator
    We must have maintenance of the stepper motor linear actuator in our daily work in order to guarantee the safety, reliability, economy and long-time running of the stepper motor linear actuator so as to meet the demand of production:

    1. Keep the motor clean and prevent oil, water and other pollution from entering the motor.
    2. Check whether the connecting terminal bolt and base fixed bolt of the motor are loose.
    3. Check the rotation of the motor fan.
    4. Check whether the motor shell is obviously heated and whether the bearings at both ends have oil leakage.
    5. Please note if there is abnormal nose, vibration and special smell of the motor in operation.

    ATO external stepper linear actuator in this video is 2 phase 4 wire comes in Nema 23 frame size. We will show you how to use PLC connect to the hybrid stepper motor system, and control this external stepper motor linear actuator for simple forward and reverse motion by the pulse and direction command issued by PLC.

    VFD Two-Wire Control Wiring with Push Button for Forward Motor

    In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

    Calculation of Lead Screw and Stepper Motor

    This video introduces the calculation of stepper motor. You need to know the step angle of the stepper motor and the pitch of the lead screw as well as the number of threads and subdivisions of the driver.

    Rotation Angle Control of Stepper Motor

    The angle control principle of stepper motor is to control the number of pulse outputs of PLC.

    1. The output frequency of PLC is related to the speed of motor.

    2. Pay attention to the dip switch on the stepper motor driver, which should match the current of stepper motor, and pay attention to how many pulses control the stepper motor to rotate one circle.
