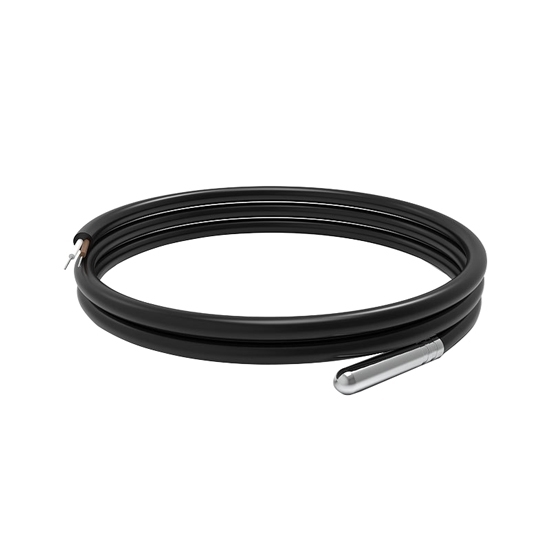

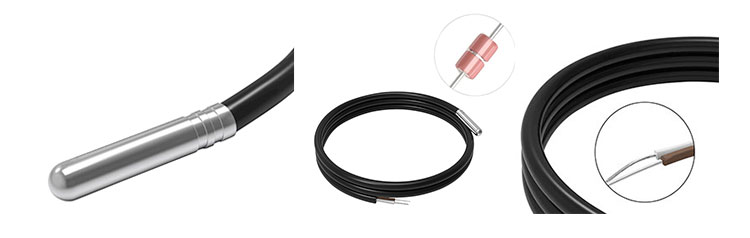

Highly accurate and reliable ntc temperature sensor probe for temperature -40 ~ 300°C, the use of insulation, thermal conductivity, waterproof material encapsulated into the required shape, stainless steel material to form a double-channel compression ring junction, is not easy to seepage and fall off. The diameter of the housing can be selected from 6*30mm, or 6*50mm.
||10K,100K (Available Options)
||Molex, JST, DuPont, CWB, CJT, U-type Terminal Blocks, etc.
|Material Physical Properties
||Stainless Steel, Copper Nickel-plated, Copper, Aluminum, ABS, PVC, Epoxy Resin
||Heat Shrinkable Tubing, PVC Tubing, Glass Fiber Tubing, Teflon Tubing
|Housing Diameter and Length
||6*30MM/6*50MM (Available Options)

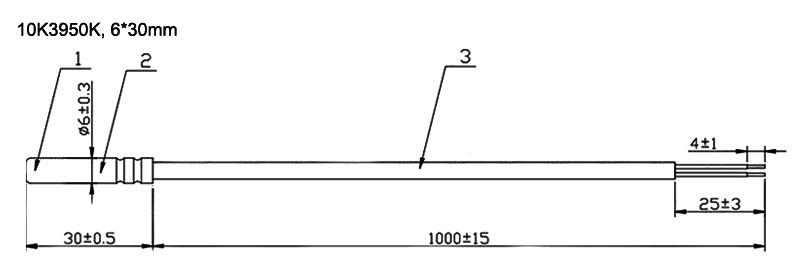

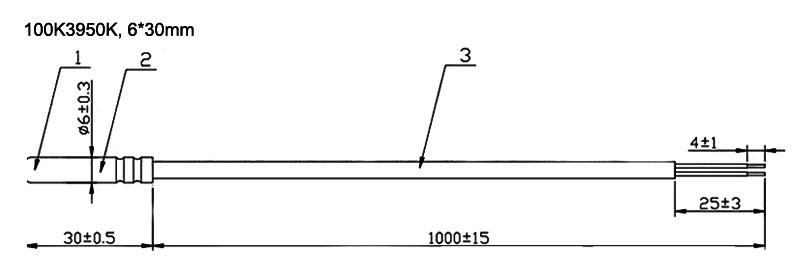

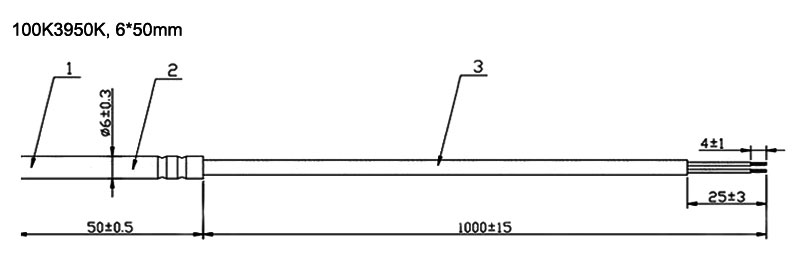

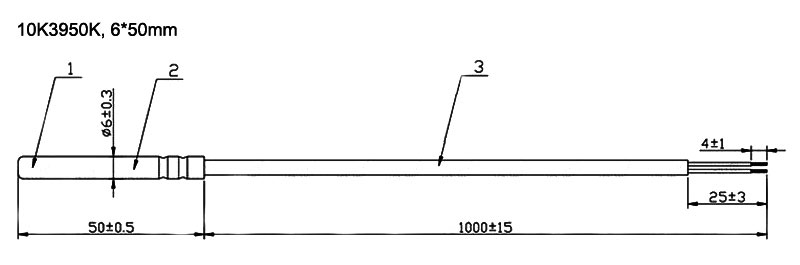

Dimensions (unit: mm)
Tips: What is an NTC Temperature Sensor Probe?
An ntc temperature sensor is a temperature measurement device based on the thermistor principle. Its probe is made of a thermosensitive material with a negative temperature coefficient, i.e., the resistance value decreases as the temperature increases.
The operating principle of the ntc temperature sensor is based on the fact that the resistance of the thermistor material changes with temperature. When the temperature rises, the resistance of the thermal material decreases and vice versa. This property makes ntc sensors ideal for a wide range of temperature measurements.
NTC temperature sensor probes are typically characterized by a fast response, high sensitivity, and accuracy. They are widely used in a variety of applications, including electronic equipment, the automotive industry, medical devices, and more. Due to the compact and flexible design of ntc temperature sensor probes, they can be easily embedded in a variety of devices and systems to achieve real-time monitoring and control of ambient temperature, providing reliable temperature data for a variety of applications.
