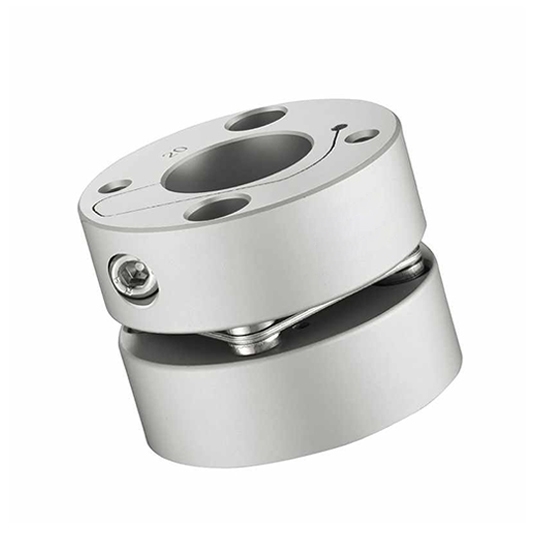

    One Diaphragm Coupling, 4mm to 8mm

    5 out of 5 based on 1 reviews | Write a review
    One diaphragm coupling diameter 19mm, length 20mm, 4mm to 8mm, shaft sleeve material high-strength aluminum alloy, high torque, speed 10000rpm, used in occasions with frequent load starting or working load changes.
    SKU: ATO-SC-GSM1920
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Shaft coupling for connecting servo motors and stepping motors, single diaphragm, bore 4mm to 8mm, diameter 19mm x length 20mm, light weight, easy to install.


    Model ATO-SC-GSM1920
    Length 20mm
    Width 19mm
    Bore 4mm to 8mm
    Rated Torque 1 N.m
    Allow Eccentricity 0.1mm
    Allowable Deflection Angle 1∠°
    Allowable Axial Deviation ±0.09
    Allowable Speed 10000 RPM
    Static Torsional Stiffness 1400N.m/rad
    Moment of Inertia 6.7 x 10-7
    Weight 12g
    Certificate ISO9001, REACH, RoHS
    Warranty 12 Months

    Single Diaphragm Flexible Coupling Dimension (unit: mm)

    Diaphragm coupling dimension

    d1/d2 Inner Diameter Size Φd L LF S F M Tightening Torque
    3-4-5-6-6.35-7-8 19 20 9.1 1.8 3.3 M2.5 1 N.m


    Diaphragm coupling detail


    Shaft Diameter Keyway Standard Machining Dimensions Keyway Size
    d1/d2 b t (bXh)
    Width of groove Tolerance Depth of groove Tolerance
    φ6~φ7.9 2 ±0.0125 1 ±0.10 2x2
    φ8~φ10 3 1.4 3x3
    φ10.1~φ12 4 ±0.0150 1.8 4x4
    φ12.1~φ17 5 2.3 5x5
    φ17.1~φ22 6 2.8 6x6
    φ22.1~φ30 8 ±0.0180 3.3 ±0.20 8x7
    φ30.1~φ38 10 3.3 10x8
    φ38.1~φ44 12 ±0.0215 3.3 12x8
    φ44.1~φ50 14 3.8 14x9
    φ50.1~Ф58 16 4.3 16x10
    φ58.1~φ65 18 4.4 18x11

    Keyway Machining Standard Drawing

    Diaphragm coupling keyway dimension

    Tips: Flexible Shaft Coupling Features

    1. Zero clearance: The entire coupling is not allowed to have clearance during transmission.
    2. Low inertia: On the basis of ensuring the transmission strength, the weight of the coupling should be reduced as much as possible. Good flexibility:
    3. The precision coupling needs to absorb the deviation between the shaft and the shaft produced during the installation process to a large extent.
    4. Compact structure: The shaft coupling is usually small in size, and its clockwise and counterclockwise rotation characteristics are exactly the same.
    5. Maintenance-free: After the shaft coupling is installed, there is basically no need for maintenance, and the installation is extremely convenient.
