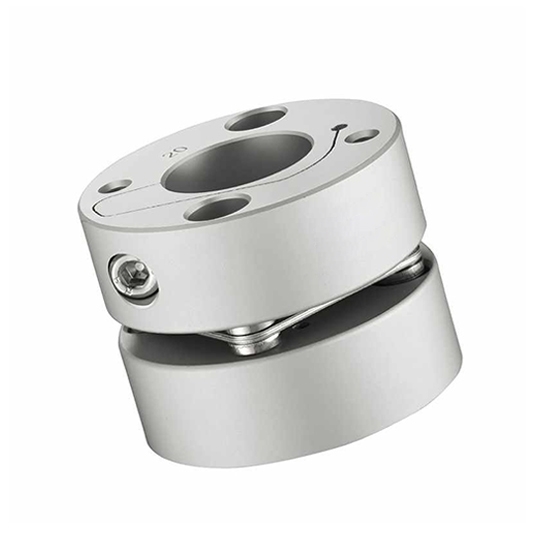

    One Diaphragm Coupling, 8mm to 16mm

    5 out of 5 based on 1 reviews | Write a review
    High torque flexible shaft coupling size 39mm x 34.5mm, one diaphragm, bore 8mm to 16mm, maximum speed 10000rpm, rated torque 10N.m, backlash-free shaft and sleeve connection can be used for forward and reverse rotation.
    SKU: ATO-SC-GSM39345
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    8mm to 16mm shaft coupler with 1 diaphragm, 39 diameter x 34.5 length, diaphragm coupling is made of aluminum alloy, strong oxidation resistance, light weight, easy to install, 12 months warranty.


    Model ATO-SC-GSM39345
    Length 34.5mm
    Width 39mm
    Bore 8mm to 16mm
    Rated Torque 10 N.m
    Allow Eccentricity 0.1mm
    Allowable Deflection Angle 1∠°
    Allowable Axial Deviation ±0.23
    Allowable Speed 10000 RPM
    Static Torsional Stiffness 8100N.m/rad
    Moment of Inertia 2.2 x 10-5
    Weight 88g
    Certificate ISO9001, REACH, RoHS
    Warranty 12 Months

    Single Diaphragm Flexible Coupling Dimension (unit: mm)

    Diaphragm coupling dimension

    d1/d2 Inner Diameter Size Φd L LF S F M Tightening Torque
    8-9-9.525-10-11-12-12.7-14-15-16 39 34.5 14.9 4.5 5 M4 3.5 N.m


    Diaphragm coupling detail


    Shaft Diameter Keyway Standard Machining Dimensions Keyway Size
    d1/d2 b t (bXh)
    Width of groove Tolerance Depth of groove Tolerance
    φ6~φ7.9 2 ±0.0125 1 ±0.10 2x2
    φ8~φ10 3 1.4 3x3
    φ10.1~φ12 4 ±0.0150 1.8 4x4
    φ12.1~φ17 5 2.3 5x5
    φ17.1~φ22 6 2.8 6x6
    φ22.1~φ30 8 ±0.0180 3.3 ±0.20 8x7
    φ30.1~φ38 10 3.3 10x8
    φ38.1~φ44 12 ±0.0215 3.3 12x8
    φ44.1~φ50 14 3.8 14x9
    φ50.1~Ф58 16 4.3 16x10
    φ58.1~φ65 18 4.4 18x11

    Keyway Machining Standard Drawing

    Diaphragm coupling keyway dimension

    The difference between one diaphragm coupling and two diaphragm coupling
    Diaphragm couplings are generally divided into one diaphragm couplings and two diaphragm couplings. The difference between the two is the ability to handle various deviations. In view of the complex bending of the diaphragm, the single diaphragm coupling is not well adapted to eccentricity. The double diaphragm coupling can bend in different directions at the same time to compensate for eccentricity.
