Passive RF Bandpass Filter, 9~13 GHz

Passive RF (Radio Frequency) bandpass filter is an electronic circuit designed to allow signals within a specific frequency range to pass through while attenuating signals outside of that range. This band pass filter is crucial in applications such as audio processing, antenna systems, and signal conditioning.

Specification

• Model: ATO-BPF-9/13-SE
• Frequency Range: 9~13 GHz (9000~13000MHz)
• Impedance: 50 Ohm
• Insertion Loss: ≤2.0dB
• Passband Fluctuation: ≤1.0dB
• Restraint Outside the Band: ≥50dB@DC-8300MHz, ≥50dB@13700-25000MHz
• VSWR: ≤1.80:1
• Input/ Output Connectors: SMA-Female
• Operation Temperature: -40℃~+70℃
• Surface Fishing: Black Paint
• Dimension: 56*14*7mm

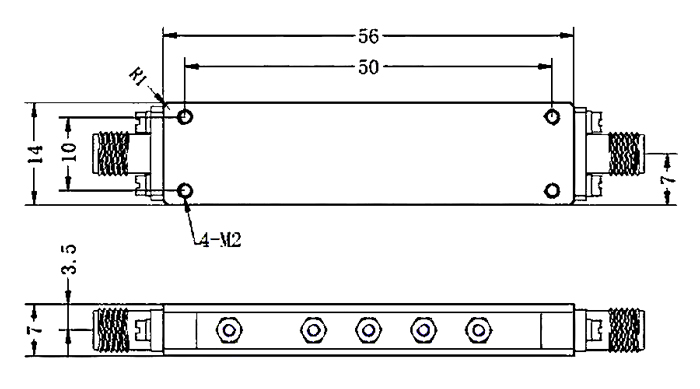

Dimension (Unit: mm)

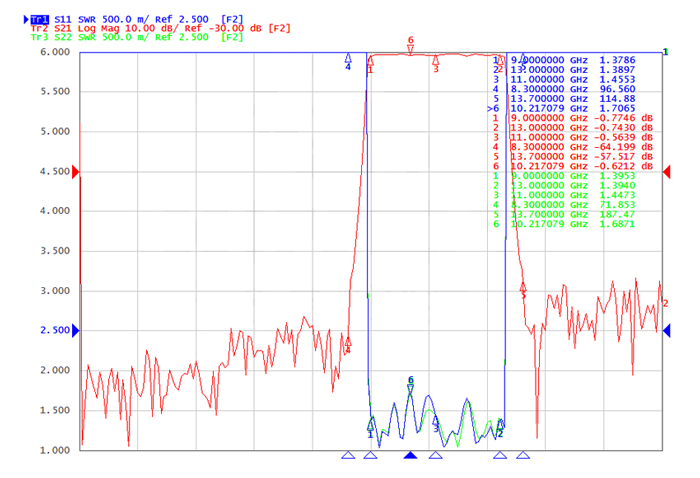

Test Curve Diagram

Tips: Can passive RF bandpass filters be used in audio systems?
