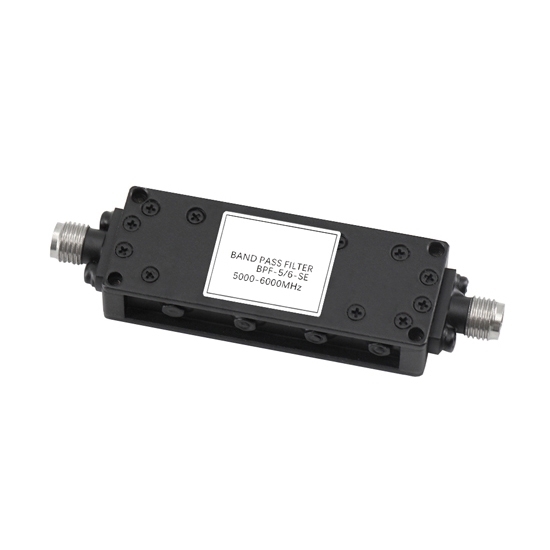

Passive RF Bandpass Filter, 5~6 GHz

In the realm of audio applications, passive RF bandpass filters are instrumental in mitigating unwanted noise and interference, facilitating the transmission of a clean and unblemished signal. For antennas, these BPF band pass filters contribute to the tuning process, allowing for the reception of desired frequencies while rejecting undesired signals.

Specification

• Model: ATO-BPF-5/6-SE
• Frequency Range: 5~6 GHz (5000~6000MHz)
• Impedance: 50 Ohm
• Insertion Loss: ≤1.0dB
• Passband Fluctuation: ≤0.6dB
• Restraint Outside the Band: ≥45dB@DC-4500MHz, ≥45dB@6500-12000MHz
• VSWR: ≤1.50:1
• Input/ Output Connectors: SMA-Female
• Operation Temperature: -40℃~+70℃
• Surface Fishing: Black Paint
• Dimension: 48*18*10mm

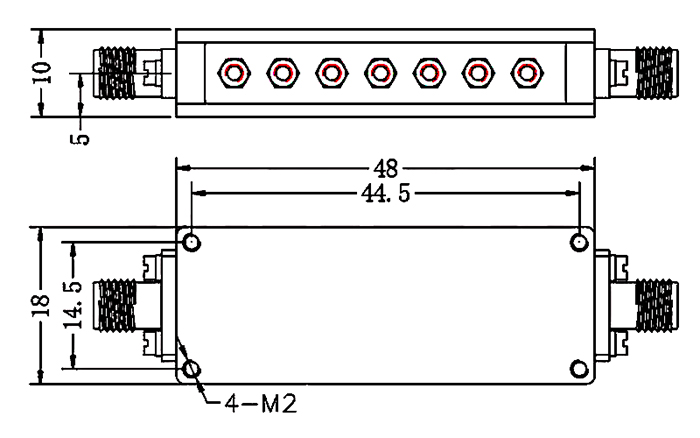

Dimension (Unit: mm)

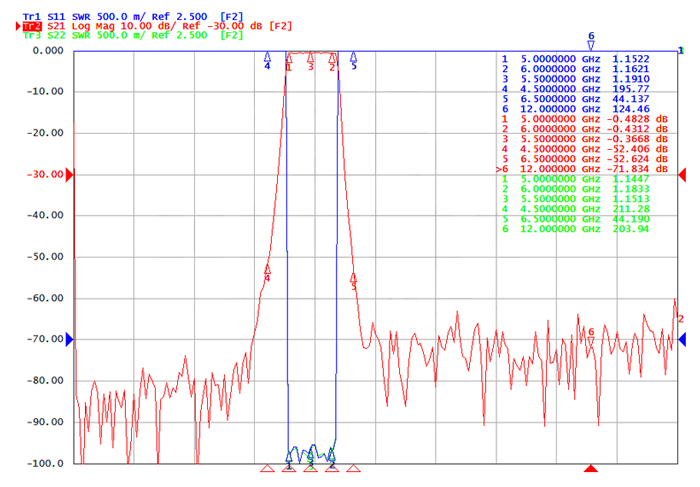

Test Curve Diagram

Tips: What applications are suitable for passive RF bandpass filters?

Passive RF bandpass filters find applications in various wireless communication systems, such as cellular networks, satellite communication, and RFID systems. They are crucial for filtering unwanted signals and noise, allowing only the desired frequency range to pass through. In wireless receivers, bandpass filters are employed to select specific channels, ensuring proper signal reception and minimizing interference. In radar systems, these filters help isolate the desired target signals from clutter and background noise. Additionally, passive RF bandpass filters play a key role in spectrum analyzers, where they aid in frequency discrimination and analysis. Overall, their applications extend to any RF system where selective frequency response and signal purity are essential for optimal performance and reliable communication.
