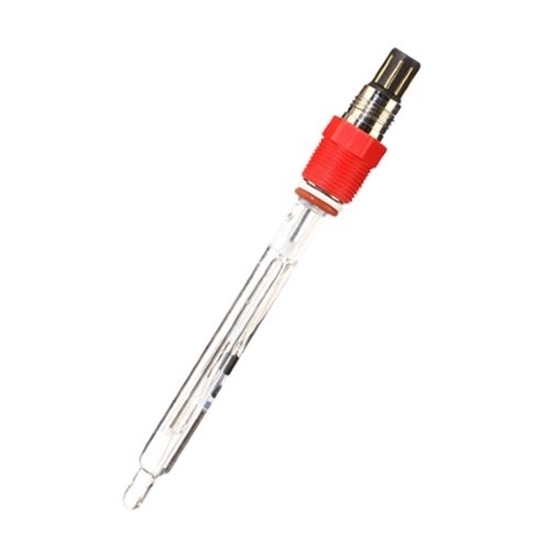

    pH Electrode for High Pressure

    5 out of 5 based on 2 reviews | Write a review
    The pH glass electrode with Germany Cartridge-style conducting system has free of silver ions, ring type protection diaphragm, high tenacity glass shell, 0-80℃ (32-176℉) temperature range, 10Bar (1MPa) compressive strength, K8S connection, 6 months service life.
    SKU: ATO-PHELE-6020
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The pH glass electrode can be widely used for wastewater treatment, pure water industry, laboratory, etc.


    • Malleable ring type PTFE protection diaphragm can prevent measurement media deposition and blockage.
    • Shell material is high tenacity glass, high temperature resistant, high pressure resistant.
    • Solid reserve salt ring design for low ion concentration or high flow rate environment.
    • PH electrode adopts Germany Cartridge-style conducting system, free of silver ions, better stability.
    • PC protection cover can storage saturated KCL solution to keep the electrode active.
    • Accessories: PTFE sheath or stainless steel sheath. Increase the acid and alkali resistance of the electrode, easy to install.
    • High-quality low-noise cable, can achieve 60m long distance signal transmission.


    Model ATO-PHETE-PH6020
    Weight 1kg
    Dimension Length: 120mm, diameter: 12mm
    Measuring range 0-12pH
    Temperature range 0-80℃ (32-176℉)
    Temperature compensation * Internal temperature sensor (NTC 10K)
    Compressive strength 10Bar (1MPa)
    Installation size PG13.5 pipe thread
    Shell material Glass
    Storage temperature -5~+30℃
    Cable length * 5m/10m/15m, or other length less than 50m (need customization)
    Service life 6 months

    Specification of sheaths (optional accessories):

    Internal thread PG13.5 pipe thread PG13.5 pipe thread
    External thread 3/4NPT 3/4NPT
    Material PTFE (Polytetrafluoroethylene) Stainless steel

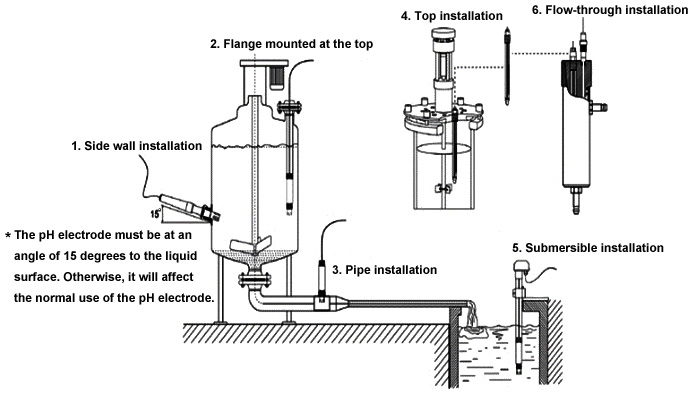

    The pH electrod installation methods:
    PH electrod installation methods
    1. Side wall installation (*The pH electrode must be at an angle of 15 degrees to the liquid surface. Otherwise, it will affect the normal use of the pH electrode.)
    2. Flange mounted at the top
    3. Pipe installation
    4. Top installation
    5. Submersible installation
    6. Flow-through installation

    Tips: What is a pH electrode?
    An industrial on-line pH measuring system generally consists of four parts, pH electrode (pH sensor), pH meter (pH transmitter), electrode sheath and cable. A pH electrode is a part of the pH meter contacting with measured substance. It's used to measure the electrode potential. Generally, there are two methods to measure the pH value of the aqueous solutions, namely Colorimetry (pH test paper and cuvette) and potentiometric method. The latter is the only way to realize continuous on-line measurement and process monitoring. Moreover, it can obtain accurate and repeatable pH value. The electrode used in the potentiometric method is called as primary battery, which is a system used to converse the chemical reaction energy into electrical energy, voltage of the primary battery is called for electrodynamic force (EMF). EMF consists of two half-cells, one of the half-cell is called for measuring electrode, whose potential is related to specific ionic activity. Another is a reference half-cell, which is also generally called for reference electrode, it generally communicates with measured solutions and connects with the measuring instrument.

    Existing reviews of pH Electrode for High Pressure
    Stable pH electrode
    Only have been using this pH electrode a few days. I find it stable. I use it permanently in my hydroponic system along with a scientific atlas board and an esp. appears to be well sealed.
    From: Loren | Date: 22/11/2022
    Was this review helpful? Yes No (0/0)
    Questions about pH electrodes
    Hi, I had a question about your wastewater specific PH probe. Is the readout only compatible with ATO transmitters or is it possible to use the current transmitter?
    From: Mary | Date: 07/05/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Our wastewater specific probe is only compatible with our ATO transmitters.
