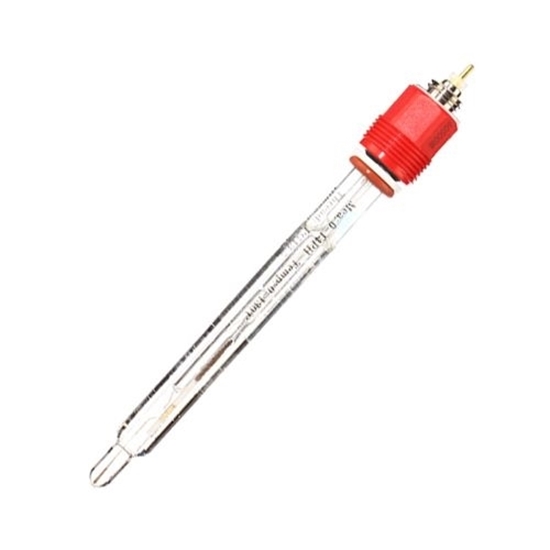

    pH Electrode for High Temperature/Sterilization

    $536.19
    The pH glass electrode with sensitive glass bulb has four glass laminating, glass shell, 0-130℃ (32-266℉) temperature range, direct lead/S8/VP/K8S, 6 months service life.
    SKU: ATO-PHETE-PH5050
    *
    *
    *
    *
    Free shipping
    Delivery date: 10-15days

    The pH glass electrode can be used for pharmaceutical, food and beverage, microbial technology.

    Function:

    • Adopt sensitive glass bulb, four glass laminating.
    • High temperature resistant aerogel and solid dielectric liquid junction.
    • Shell material is special glass, high temperature resistant, high pressure resistant.
    • High accuracy and good repeatability.
    • Accessories: PTFE sheath or stainless steel sheath. Increase the acid and alkali resistance of the electrode, easy to install.
    • High-quality low-noise cable, can achieve 60m long distance signal transmission.

    Specification:

    Model ATO-PHETE-PH5050
    Weight 1kg
    Dimension Length: 120mm, diameter: 12mm
    Measuring range 0-14pH
    Temperature range 0-130℃ (32-266℉)
    Temperature compensation Internal temperature sensor (NTC 10K)
    Zero position 7±0.3pH
    Compressive strength 0.6MPa
    Slope ≥96%
    Installation size PG13.5 pipe thread
    Shell material Glass
    Connection Direct lead/S8/VP/K8S
    Cable length 5m/10m/15m, or other length less than 50m (need customization)
    Service life 6 months

    Specification of sheaths (optional accessories):

    Model ATO-PHETE-A1 ATO-PHETE-A2
    Internal thread PG13.5 pipe thread PG13.5 pipe thread
    External thread 3/4NPT 3/4NPT
    Material PTFE (Polytetrafluoroethylene) Stainless steel

    The pH electrod installation methods:
    PH electrod installation methods
    1. Side wall installation (*The pH electrode must be at an angle of 15 degrees to the liquid surface. Otherwise, it will affect the normal use of the pH electrode.)
    2. Flange mounted at the top
    3. Pipe installation
    4. Top installation
    5. Submersible installation
    6. Flow-through installation

    Tips: How to calibrate a pH electrode?
    Preparations before use:

    1. Remove the protective sleeve from top of the electrode and keep properly.
    2. Clean the white salt deposits on the external surface of the electrode with deionized water.
    3. Swing the electrode slightly, like swinging a thermometer, so as to remove bubbles from electrodes.

    Calibration of pH electrode:

    1. Install the pH electrode and power on.
    2. Prepare 250ml pH standard solutions with distilled water or deionized water, the pH value of standard solutions are 4.00, 6.86 and 9.18 respectively.
    3. Open the electrode protective sheath and clean the electrode probe in the distilled water, turn the pH meter to the calibration interface.
    4. Put the electrode in 4.00, 6.86 and 9.18 standard solution respectively, rinse the electrode completely with distilled water when replacing the measurement standard solutions.
    5. The pH electrode can be normally used after calibration.
