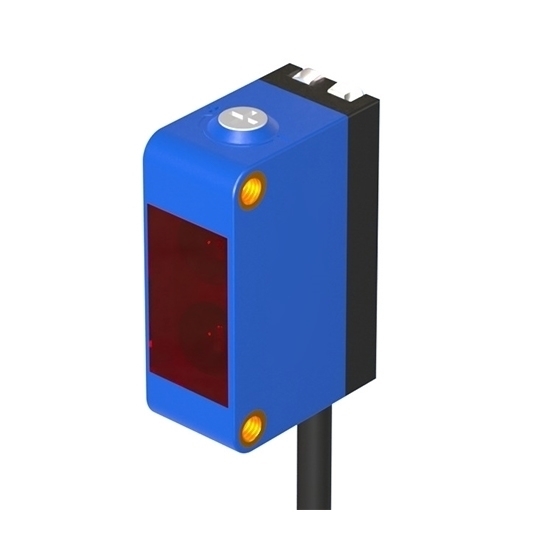

Photoelectric Distance Sensor, Diffuse Type, 10cm

5 out of 5 based on 1 reviews | Write a review

$105.85

The photoelectric distance sensor features a 10cm sensing distance with a visible red LED light. Its switchable NO/NC output ensures flexible use, while detection remains stable. Incorporating diffuse type for accurate sensing even in complex environments. Multiple protections safeguard both the sensor and connected equipment.

Output Type *

SKU: ATO-PHOS-DIS

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Buy photoelectric distance sensor online, 1–10 cm adjustable range, operating Voltage 12 ~ 24 VDC. Supports NO/NC output, stable detection, with diffuse type. Built-in protections ensure reliable performance.

Specification

Model	ATO-FGN10-10NF-C	ATO-FGN10-10PF-C
Output Type	NPN	PNP
Sensing Distance	10 cm
Light Source	Visible Red LED Light
Spot Size	Φ1 cm@10 cm
Operating Voltage	12 ~ 24 VDC
Maximum Load	150 mA
Response Time	≤ 1 ms
Current Consumption	< 20 mA
Sensitivity Adjustment	Adjustable
Control Output	NPN/ PNP Open-collector Output
Operation Mode	Light-ON/ Dark-ON
Operating Ambient Temperature	–10°C ~ +50°C (no condensation; no icing)
Operating Ambient Humidity	35% ~ 85% RH
Storage Temperature	–25°C ~ +70°C
Storage Humidity	35% ~ 95% RH
Operation Indicator	Green LED: Power Indicator; Orange LED: Output Signal Indicator
Housing Material	PC
IP Protection Rating	IP65
Cable Type	2 m Straight Cable
Dimensions	3222.612 mm
Weight	500 g

Feature

Overload Protection: The photo sensor automatically activates protection if an unstable or faulty load causes an excessive current draw.
Five-Turn Adjustable Sensitivity: This photoelectric distance sensor is designed with a large knob for easy adjustment of the sensing range, enabling precise positioning to achieve the optimal detection point.
Reverse Polarity Protection: The mini photo sensor is safeguarded against damage if the power supply wires are accidentally reversed.
Short-Circuit Protection: In the event of a load short-circuit, this electric distance photo sensor protects both itself and the connected load from being damaged.
High-Transmittance Filter Lens: Effectively filters out interference from other optical and electromagnetic sources.

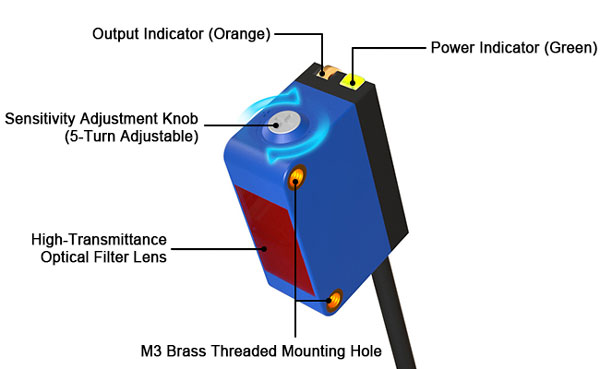

Detail

Led photoelectric sensor detail

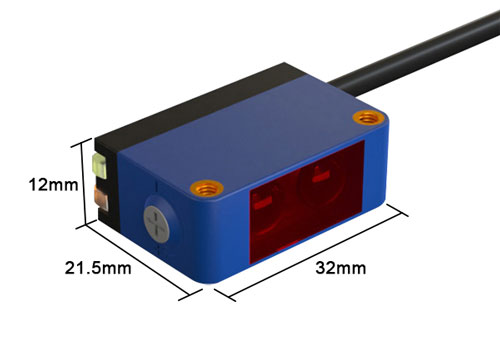

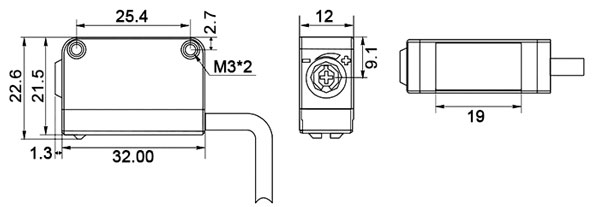

Size (unit: mm)

Led photoelectric sensor

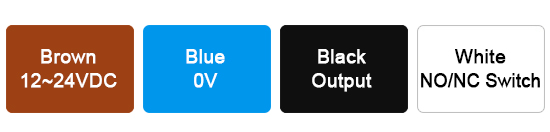

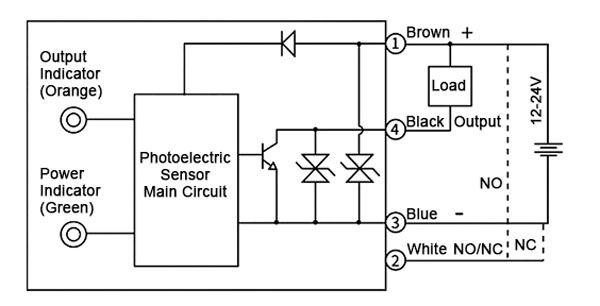

Wiring

Led photoelectric sensor

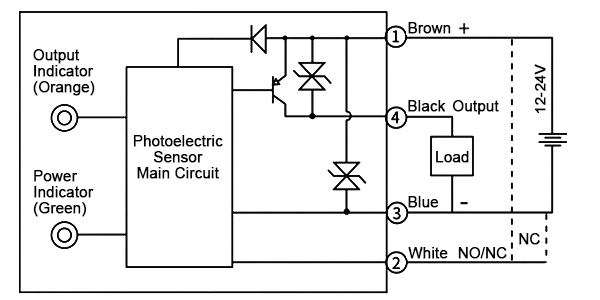

NPN Output

Led photoelectric sensor

PNP Output

Led photoelectric sensor

Application

Led photoelectric sensor application

Existing reviews of Photoelectric Distance Sensor, Diffuse Type, 10cm

Works as Expected

After installing this sensor, I found it quite easy to use. The red light helps with positioning, and the sensor has been detecting objects consistently. The adjustable NO/NC output also made it easier to connect to our existing setup.

From: Marrick | Date: 02/09/2026

Was this review helpful? Yes No (0/0)
