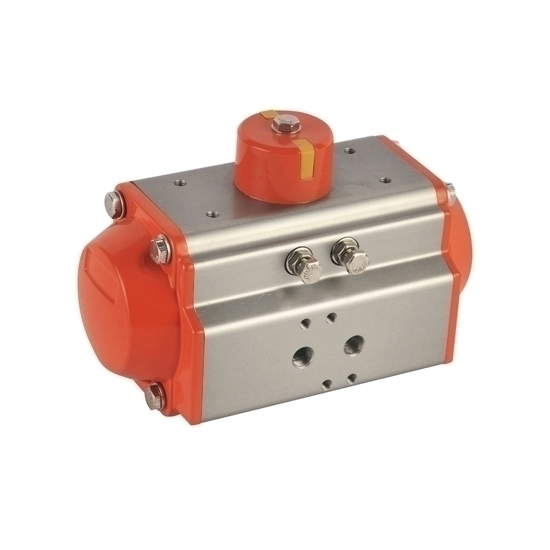

Double Acting Pneumatic Valve Actuator, 160mm Bore Size

Write a review

$578.49

Cost-effective pneumatic valve actuator for opening and closing butterfly or ball valve, double acting, powered by compressed air, air supply port 1/4 inch, bore size 160mm, air pressure 2.5bar ~ 8bar, max. working pressure 10 bar, aluminum alloy material. Small size, light weight, easy to install and operate.

Operating Temperature *

SKU: ATO-AT-160D

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Output Torque Table

Pneumatic valve actuator is an executive device that uses air pressure to open and close ball valve, butterfly or regulating valve. The pneumatic actuator powered by compresses air is easy to repair and maintain, and has good adaptability to the environment.

Specifiation

Model: ATO-AT160D
Bore Size: 160mm (6.3 inch)
Air Supply Port: 1/4 inch
Power Source: Compressed Air
Actuator Type: Double Acting
Air Pressure: 2.5bar ~ 8bar
Max Working Pressure: 10bar
Operating Temperature (Optional): -20℃ ~ 80℃, -35℃ ~ 80℃, -20℃ ~ 150℃
Rotation Angle: 90°±5%
Body Material: Aluminum Alloy
Life Time: One Million Time

Dimensions

Pneumatic actuator dimension

ATO-AT160D

Q	A	B	C	D	E	F	G	H	I
Φ102/Φ125mm	450mm	193mm	89mm	104mm	226mm	197mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	30mm	80mm	4mm	4mm	12mm	24mm	16mm	32mm

Details

Pneumatic valve actuator details

PN	Number	Name	Standard Material
1	4	Position Indicator	Polypropylene+GF
2	1	Position Indicator Seat	Polypropylene+GF
3	1	Snap Ring	Stainless Steel
4	1	Bearing	Stainless Steel
5	1	Bearing	Polyphthalamide
6	1	Bore Body	Extruded Aluminum alloy
7	2	Bearing	Polyphthalamide
8	2	Piston	Die Cast Aluminum
9	2	O-Ring	Nitrile(NBR70)
10	2	Bearing	Polyphthalamide
11	8	End Cover bolt gasket	Stainless Steel
12	2	End Cover bolt	Stainless Steel
13	2	Left and Right end Cover	Die Cast Aluminum
14	2	O-Ring	Nitrile(NBR70)
15	2	Guide Sleeve	Polypropylene+GF
16	1	O-Ring	Nitrile(NBR70)
17	1	Bearing	Nylon46
18	1	Bearing	Polyphthalamide
19	1	Cam Switch	Stainless Steel
20	1	Actuating Shaft	Steel alloy
21	1	Bearing	Nylon46
22	1	O-Ring	Nitrile(NBR70)
23	1	O-Ring	Nitrile(NBR70)
24	2	Spacer for Limit Bolt	Stainless Steel
25	2	Limit Nut	Stainless Steel
26	2	Limit Bolt	Stainless Steel
27	min.5/max.12	Spring	High alloy Spring Steel
28	1	Spring Seat	Polypropylene+GF

Tips: What are the advantages of pneumatic valve actuators?

It has positive and negative functions.
The moving speed is large, but the speed will become slower when the load increases.
The output force is related to the operating pressure.
High reliability, but the valve cannot be maintained after the gas source is interrupted (it can be maintained after adding a retaining valve).
It is inconvenient to realize segment control and program control.
Simple maintenance and good adaptability to the environment.
Large output power.

Double Acting Pneumatic Valve Actuator Output Torque Table

Unit: Nm

Model	Standard	3bar	3.5bar	4bar	4.5bar	5bar	5.5bar	6bar	7bar	8bar
ATO-AT032D	3.6	4.3	5	5.7	6.4	7.3	8	8.7	10	11.6
ATO-AT050D	8.4	10.1	11.7	13.5	15.1	16.7	18.4	20	23.4	26.7
ATO-AT063D	14.8	17.7	20.6	23.6	26.5	29.4	32.3	35.3	4101	47
ATO-AT075D	29.2	35	40.8	46.6	52.5	58.3	64.1	69.9	81.5	93.2
ATO-AT088D	45.9	55	64.2	73.3	82.5	91.6	101.1	110.1	128.1	146.1
ATO-AT100D	66.8	80.1	93.4	106.3	120.3	133.3	146.3	160.3	183.3	213.3
ATO-AT125D	139	167	195	223	250	278	303	333	389	444
ATO-AT145D	217	261	304	348	391	434	478	521	608	695
ATO-AT160D	285	341	398	455	512	577	625	682	795	909
ATO-AT190D	533	639	746	852	976	1065	1171	1277	1490	1703
ATO-AT240D	893	1072	1250	1430	1608	1787	1965	2144	2502	2859
ATO-AT270D	1306	1565	1824	2084	2343	2603	2862	3121	3640	4159
