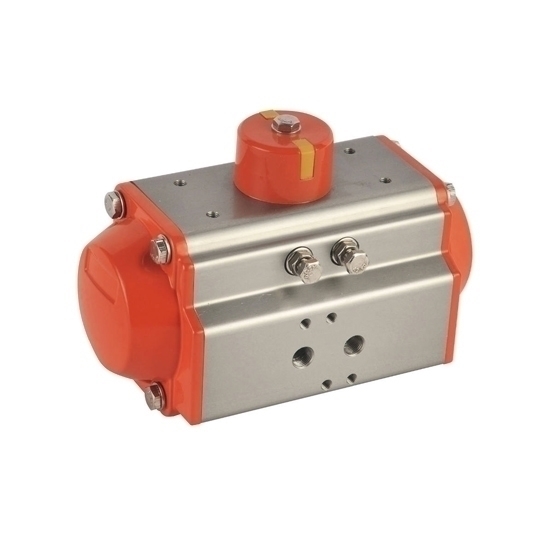

    Double Acting Pneumatic Valve Actuator, 190mm Bore Size

    $766.99
    ATO double acting pneumatic valve actuator for opening and closing butterfly or ball valve, powered by compressed air, air supply port 1/2 inch, bore size 190mm, air pressure 2.5bar ~ 8bar, aluminum alloy material. Low price, small size, light weight, easy to install and operate.
    *
    SKU: ATO-AT-190D
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Pneumatic valve actuator is an executive device that uses air pressure to open and close ball valve, butterfly or regulating valve. The pneumatic actuator powered by compresses air is easy to repair and maintain, and has good adaptability to the environment.

    Specifiation

    • Model: ATO-AT190D
    • Bore Size: 190mm (7.48 inch)
    • Air Supply Port: 1/4 inch
    • Power Source: Compressed Air
    • Actuator Type: Double Acting
    • Air Pressure: 2.5bar ~ 8bar
    • Max Working Pressure: 10bar
    • Operating Temperature (Optional): -20℃ ~ 80℃, -35℃ ~ 80℃, -20℃ ~ 150℃
    • Rotation Angle: 90°±5%
    • Body Material: Aluminum Alloy
    • Life Time: One Million Time

    Dimensions

    Pneumatic actuator dimension

    ATO-AT190D

    Q A B C D E F G H I
    Φ102/Φ140 518mm 208mm 103mm 105mm 272mm 232mm 30mm 130mm PF
    J K O P S T U V W X
    M6 1/4" 30mm 80mm 4mm 4mm 12mm 24mm 16mm 32mm

    Details

    Pneumatic valve actuator details

    PN Number Name Standard Material
    1 4 Position Indicator Polypropylene+GF
    2 1 Position Indicator Seat Polypropylene+GF
    3 1 Snap Ring Stainless Steel
    4 1 Bearing Stainless Steel
    5 1 Bearing Polyphthalamide
    6 1 Bore Body Extruded Aluminum alloy
    7 2 Bearing Polyphthalamide
    8 2 Piston Die Cast Aluminum
    9 2 O-Ring Nitrile(NBR70)
    10 2 Bearing Polyphthalamide
    11 8 End Cover bolt gasket Stainless Steel
    12 2 End Cover bolt Stainless Steel
    13 2 Left and Right end Cover Die Cast Aluminum
    14 2 O-Ring Nitrile(NBR70)
    15 2 Guide Sleeve Polypropylene+GF
    16 1 O-Ring Nitrile(NBR70)
    17 1 Bearing Nylon46
    18 1 Bearing Polyphthalamide
    19 1 Cam Switch Stainless Steel
    20 1 Actuating Shaft Steel alloy
    21 1 Bearing Nylon46
    22 1 O-Ring Nitrile(NBR70)
    23 1 O-Ring Nitrile(NBR70)
    24 2 Spacer for Limit Bolt Stainless Steel
    25 2 Limit Nut Stainless Steel
    26 2 Limit Bolt Stainless Steel
    27 min.5/max.12 Spring High alloy Spring Steel
    28 1 Spring Seat Polypropylene+GF

    Tips: Pneumatic valve actuator vs. electric valve actuator

    Pneumatic valve actuator advantages

    • The load is large, which can adapt to the application of high torque output.
    • Quick action and quick response.
    • Good adaptability to working environment, especially in harsh working environments such as flammable, explosive, dusty, strong magnetism, radiation and vibration, it is superior to hydraulic, electronic and electrical control.
    • The motor is easily damaged when the stroke is blocked or the valve stem is tied.

    Electric valve actuator advantages

    • Compact structure and small size. Compared with pneumatic actuators, electric actuators are relatively simple in structure. A basic electronic system includes actuators, three-position DPDT switches, fuses and some wires, which are easy to assemble.
    • The drive source of the electric actuator is very flexible. Generally, the on-board power supply can meet the needs, while the pneumatic actuator needs an air source and a compression drive device.
    • Electric actuators have no danger of "air leakage" and are highly reliable, while the compressibility of air makes pneumatic actuators slightly less stable.
    • There is no need to install and maintain various pneumatic pipelines.
    • The load can be maintained without power, while the pneumatic actuator requires a continuous pressure supply.
    • The electric actuator is quieter because no additional pressure device is required. Usually, if the pneumatic actuator is under heavy load, a silencer should be installed.

    Double Acting Pneumatic Valve Actuator Output Torque Table

    Unit: Nm


    Model Standard 3bar 3.5bar 4bar 4.5bar 5bar 5.5bar 6bar 7bar 8bar
    ATO-AT032D 3.6 4.3 5 5.7 6.4 7.3 8 8.7 10 11.6
    ATO-AT050D 8.4 10.1 11.7 13.5 15.1 16.7 18.4 20 23.4 26.7
    ATO-AT063D 14.8 17.7 20.6 23.6 26.5 29.4 32.3 35.3 4101 47
    ATO-AT075D 29.2 35 40.8 46.6 52.5 58.3 64.1 69.9 81.5 93.2
    ATO-AT088D 45.9 55 64.2 73.3 82.5 91.6 101.1 110.1 128.1 146.1
    ATO-AT100D 66.8 80.1 93.4 106.3 120.3 133.3 146.3 160.3 183.3 213.3
    ATO-AT125D 139 167 195 223 250 278 303 333 389 444
    ATO-AT145D 217 261 304 348 391 434 478 521 608 695
    ATO-AT160D 285 341 398 455 512 577 625 682 795 909
    ATO-AT190D 533 639 746 852 976 1065 1171 1277 1490 1703
    ATO-AT240D 893 1072 1250 1430 1608 1787 1965 2144 2502 2859
    ATO-AT270D 1306 1565 1824 2084 2343 2603 2862 3121 3640 4159
