Proximity Sensor, Inductive, M30, PNP

5 out of 5 based on 2 reviews | Write a review
$39.95
M30 proximity sensor can detect a variety of metals, small size, long life, cheap price, anti-interference ability, 10mm detection distance, shielded type installation, manufacturer direct sale.
*
SKU: ATO-PROS-I30
30-day Returns
Free Shipping
Delivery date: 6-12 days

Inductive proximity sensor with M30*1.5 thread, PNP type output, manufacturer direct sale.

Functions:

  • Red LED checks the state of proximity sensor

  • High repeated positioning accuracy

  • High switching frequency

  • Wide voltage range

  • Antivibration, dust, water and oil prevention

  • Reverse power protection, short circuit protection, directly connecting with PLC

  • Can replace small switches and limit switches

Specification:

Model ATO-PSI-30A10ZP
Installation type Shielded Unshielded
All the output methods DC type NPN NO NO
NC NC
NO+NC NO+NC
PNP NO NO
NC NC
NO+NC NO+NC
2 wire NO NO
NC NC
AC type 2 wire NO NO
NC NC
3 wire NO+NC NO+NC
Detection range 10mm±10% 15mm±10%
Setting distance 0-8mm 0-13mm
Delay distance ≤10% detection range
Detection object Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Standard detection object Iron 30*30*1mm Iron 54*54*1mm
Response frequency DC: 0.5kHz, AC: 50Hz
Supply voltage DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage AC1000V 50/60Hz 1min between charging part and housing
Voltage influence Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance ≥50MΩ (DC500 megameter) between charging part and housing
Material Housing: Nickel plated brass, Detection surface: ABS
Protection class IP67
Cable length 1.2m

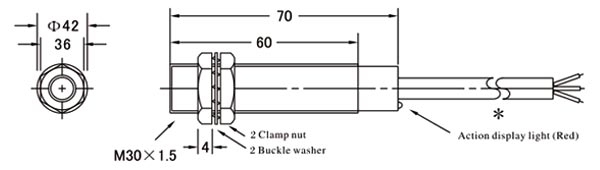

Dimensional drawing (unit: mm):
Proximity sensor inductive M30 dimensional drawin
Wiring diagram:
Proximity sensor PNP wiring

Tips: Proximity sensor's common problems on detect distance

  1. Proximity sensor can't detect the distance of detected object.
  2. Sensor is installed within the detection range with unstable signal in the actual detection (sometimes detectable and sometimes undetectable).
  3. Actual detection distance is different from the standard detection distance indicated in sensor (or less than the detection distance, or larger than the detection distance).

Since there is a certain tolerance detection distance in proximity sensor that is 10% of the standard detection distance, that is to say, the detected object installed at the maximum distance could be influenced by its material so that the perception of sensor is at the critical point, causing the object sometime detectable and sometimes not. In addition, some equipment or detected object has certain distance deviation in the process of operation or swinging. If a detected object is installed at the maximum detection distance, there could be a malfunction or bad reception.

Existing reviews of Proximity Sensor, Inductive, M30, PNP
About inductive sensor
I need to know if you carry inductive sensor 120V two or three wires. About 20 to 30mm of sensing.
From: Yangon | Date: 07/08/2024
Was this review helpful? Yes No (0/0)
ATO Responded
For inductive sensor 120V two or three wires, we recommend SKU: ATO-PROS-I30, the maximum detection distance is 15mm±10%.
M30 proximity sensor detects the distance
Will the M30 proximity sensor detect passing plastic bottles and aluminum cans?
From: Baran | Date: 05/09/2021
Was this review helpful? Yes No (0/0)
ATO Responded
Yes, it is completely possible, but the detection distance may be biased.
