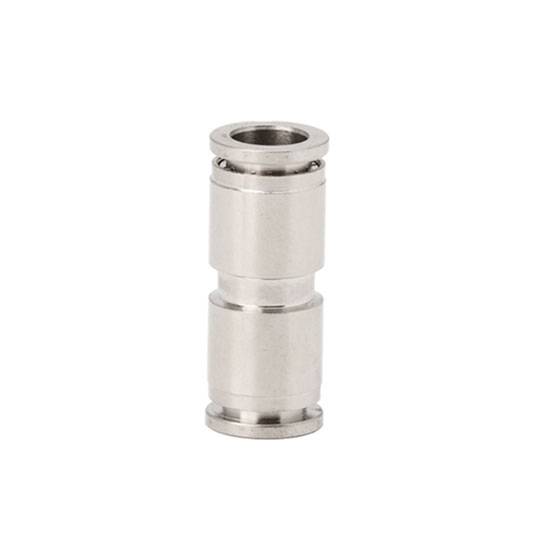

    Quick Connect Air Compressor Fitting, 6mm

    5 out of 5 based on 1 reviews | Write a review
    Air compressor hose fitting is mainly used for air piping and quick connectors of pneumatic tools, outer diameter 6mm, 10mm, 12mm and 16mm are optional, withstand strong pressure, no trip, strong oxidation resistance, not easy to be corroded.
    This product has a minimum quantity of 5
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Quick connect air compressor fitting is suitable for connecting PU and nylon pipes, OD 6mm, widely used for air hoses, pneumatic tools, air nail guns, blow guns and high pressure cleaning machines.


    Model ATO-AHF-PU06
    Outer Diameter 4mm, 6mm,  8mm, 10mm, 12mm, 14mm, 16mm
    Applicable Tube PU/Nylon pipe
    Working Pressure -1 kPA ~ 2.5 A5mPA
    Applicable Fluid Compressed air, vacuum, oil
    Working Temperature -60℃ ~ 80℃
    Weight 0.1 kg
    Warranty Period 12 Months

    Quick Connect Air Compressor Fitting Details

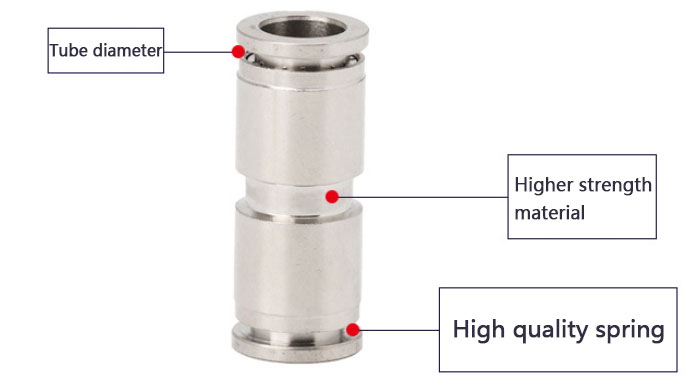

     Air compressor fittings quick connect detail

    Tips: Air hose fitting application

    Air hose fitting is suitable for the connection of pneumatic pipes, compressed air, and nitrogen, and the pipes can be frequently loaded and unloaded in working positions, such as the operation of pneumatic tools in the assembly line. It can also be used for hydraulic equipment, chemicals, ship piping, etc.
