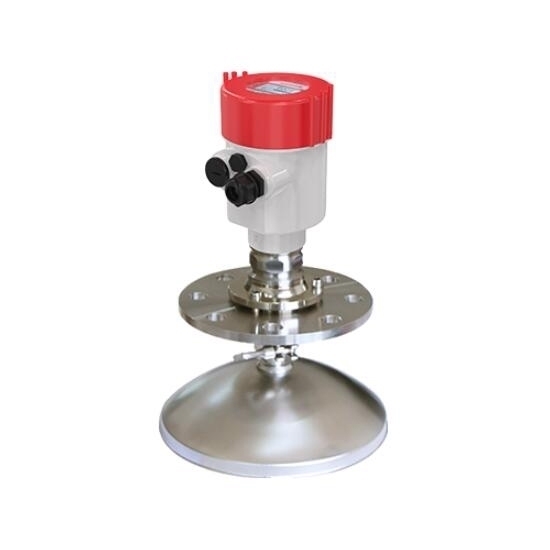

    Radar Level Sensor, Non-contact Solid Measurement, 0-50M

    $2,145.59
    Low price radar level sensor is a non-contact solid measurement. Radar level transmitter consists of protection head with LCD display, waterproof connectors, internal radar antenna, and installation accessory for measuring various solids. Measuring range: powder 0-30m, 0-45m, granules 0-50m, chunks 0-50m, selectable output signal of 4-20mA, RS485 or 4-20mA+HART, power supply of DC 12-24V or AC 220V, flange installation, resolution 1mm.
    *
    *
    *
    SKU: ATO-LEVS-904
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Ultrasonic radar level sensor for non-contact power, granule, chunk and other solids measurement has maximum measuring range 0-50m, can transmit and output 4-20mA, HART or RS485 signal to remote control system.

    Specification

    Model ATO-LEVS-RD904
    Shipping Weight 7.5kg
    Measuring Range Powder: 0-30m Powder: 0-45m Granules: 0-50m Chunks: 0-50m
    Accuracy ±25mm
    Resolution 1mm
    Display LCD Display
    Measured Interval 1s (according to parameter setting)
    Adjustment Time 1s (according to parameter setting)
    Microwave Frequency 26GHz
    Output Signal* 4-20mA, Modbus RTU (RS485 Port), 4-20mA+HART
    Power Supply* DC 12-24V, AC 220V/50Hz
    Material Shell Aluminum, Process Connection 304 Stainless Steel
    Paraboloid Φ196mm Φ246mm Φ246mm Φ246mm
    Pressure -0.1 ~ 0.3MPa
    Shock Resistance 10m/s2, (10~150)Hz
    Communication Protocol Modbus
    Medium Solids
    Storage Temperature -40~+100℃
    Process connection (antenna) temperature -40~+150℃
    Medium Temperature* -40~+250℃
    Protection Class IP67
    Electrical Connection 2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2" NPT
    Installation* DN80 Flange DN80 Flange DN80 Flange+DN250 Steel Plate DN250 Flange
    Warranty 12 Months

    Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

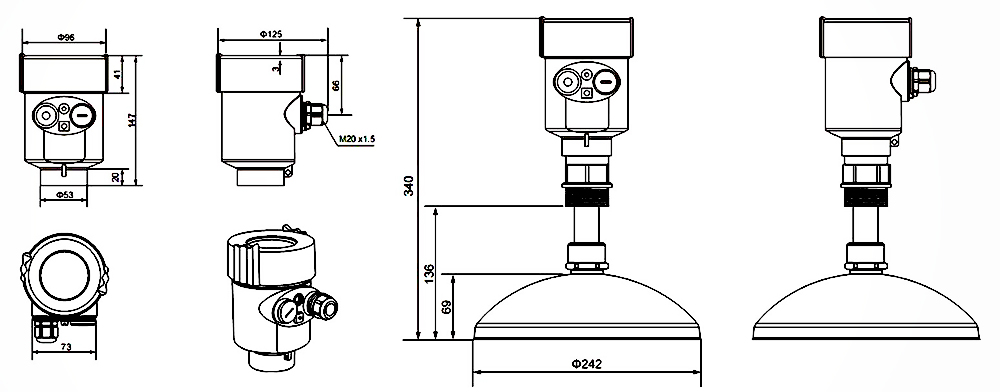

    Dimensions (Unit: mm)

    Dimensions of radar level sensor

    Installation

    Radar level sensor 10m installation

    Wiring

    Radar level sensor 10m wiring

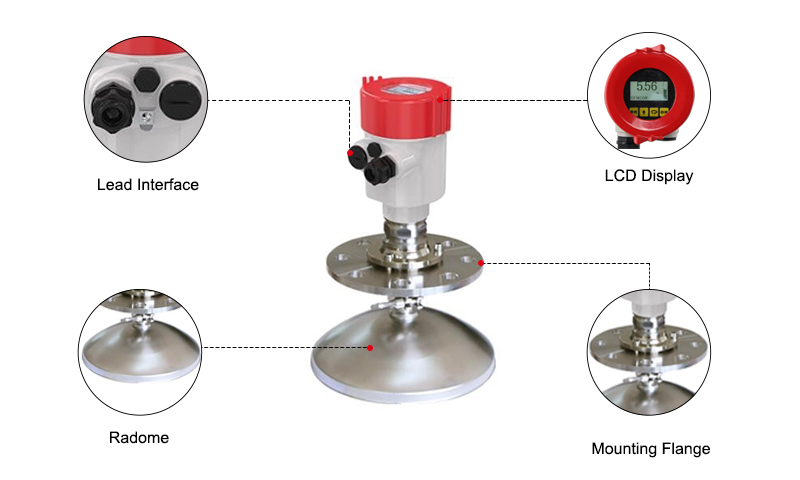

    Details

    0-50m Radar Level Sensor Details

    Tips: What are the types of level sensor?

    • Ultrasonic liquid level sensor
      Ultrasonic liquid level sensor is a non-contact sensor, which uses the principle of ultrasonic reflection, that is, the liquid level height is calculated by monitoring the time difference between ultrasonic transmission and reflection, so as to achieve the purpose of liquid level measurement.
    • Capacitive liquid level sensor
      The capacitive liquid level sensor uses the capacitive detection principle, and the capacitive liquid level gauge measures the level of the liquid level by measuring the change of capacitance. It is a metal rod inserted into the liquid container, the metal rod is used as one pole of the capacitor, and the wall of the container is used as the other pole of the capacitor. The medium between the two electrodes is the liquid and the gas above it.
    • Float liquid level sensor
      The float liquid level sensor is a non-contact liquid level sensor, which uses the magnetic float of the float level switch to rise or fall with the liquid level to make the reed switch chip at the set position in the sensor detection tube move, and send out the contact opening (Off) convert the signal.
    • Hydrostatic liquid level sensor
      The measurement principle is that the static pressure generated by the liquid column is a function of the liquid density and liquid level. The pressure sensor installed at the bottom of the storage tank measures the gauge pressure relative to the atmospheric pressure, and converts the measured value into the liquid level according to the known medium density.
    • Radar liquid level sensor
      Radar liquid level sensor has the same advantages as the laser measurement principle, and is not affected by the measurement medium, less affected by the external environment, and does not require repeated calibration, especially suitable for in-tank measurement of large containers with heated steam, such as residual oil, asphalt and other monitoring fields.
