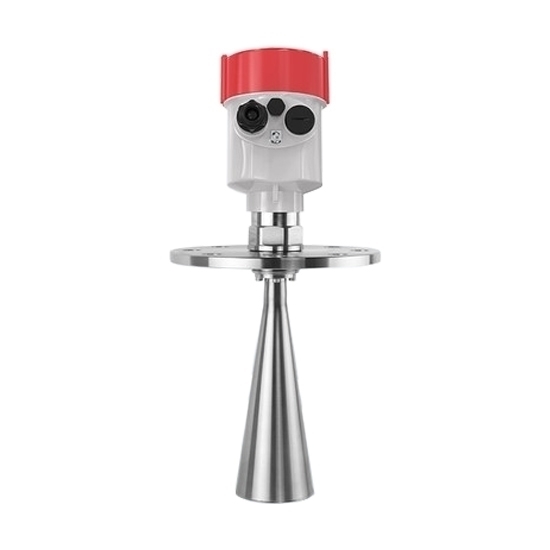

    Radar Level Sensor, Non-contact Corrosive Liquid Measurement, 0-30M

    $1,452.09
    Economical price radar level sensor is a non-contact measurement. Measuring range from 0 to 30m, selectable output signal of 4-20mA, RS485 or 4-20mA+HART, power supply of DC 12-24V or AC 220V, installation of G1-1/2"A thread or flange. Radar level transmitter consists of protection head with LCD display, waterproof connectors, internal radar antenna, horn and installation accessory for measuring various highly corrosive liquids.
    SKU: ATO-LEVS-902
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Ultrasonic radar level sensor for non-contact various slightly corrosive liquid level measurement has maximum measuring range 0-30m, can transmit and output 4-20mA, HART or RS485 signal to remote control system.

    Specification

    Model ATO-LEVS-RD902
    Shipping Weight 6.5kg
    Measuring Range 0-30m
    Accuracy ±5mm (Range 5m), ±10mm (Range 20m), ±15mm (Range 30m)
    Resolution 1mm
    Display LCD Display
    Measured Interval 1s (according to parameter setting)
    Adjustment Time 1s (according to parameter setting)
    Microwave Frequency 26GHz
    Output Signal* 4-20mA, Modbus RTU (RS485 Port), 4-20mA+HART
    Power Supply* DC 12-24V, AC 220V/50Hz
    Material Shell: Aluminum, Process Connection: 304 Stainless Steel, Horn: 304/ 316L Stainless Steel/ Tetrafluoroethylene
    Horn Antenna Size* Φ78mm/ Φ98mm
    Pressure -0.1 ~ 0.4MPa
    Shock Resistance 10m/s2, (10~150)Hz
    Communication Protocol Modbus
    Medium Temperature Resistant, Pressure Resistant, Slightly Corrosive Liquids
    Storage Temperature -40~+100℃
    Process connection (antenna) temperature -40~+150℃
    Medium Temperature -40~+250℃
    Protection Class IP67
    Electrical Connection 2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2" NPT
    Installation* G1-1/2"A thread, Flange
    Warranty 12 Months

    Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

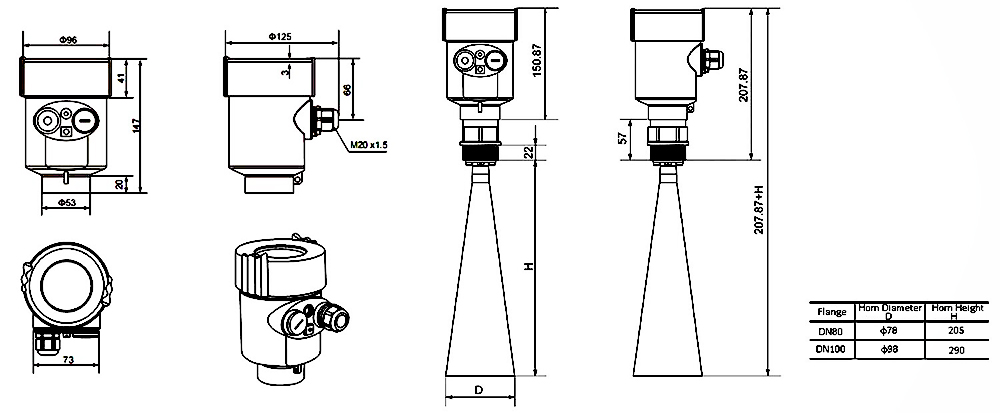

    Dimensions (Unit: mm)

    Dimensions of radar level sensor

    Installation

    Radar level sensor 10m installation

    Wiring

    Radar level sensor 10m wiring

    Tips for using a non-contact radar level sensor

    • Avoid the feed port to avoid false reflections.
    • The radar level sensor should not be installed in the center of the arched tank (otherwise the false echo received by the sensor will be enhanced), and it should not be installed very close to the tank wall. The best installation position is 1/2 of the radius of the container.
