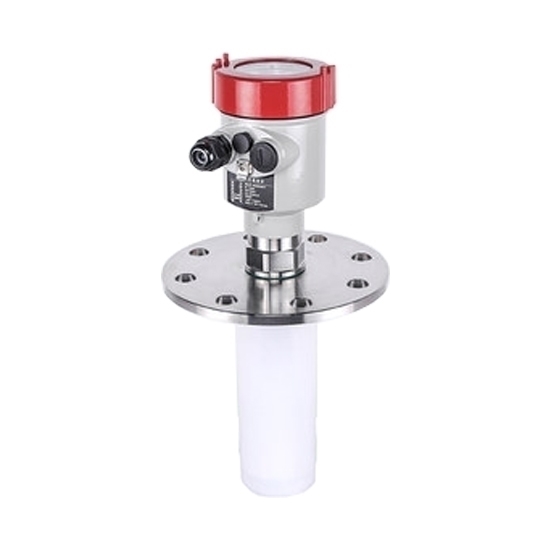

    Radar Level Sensor, Non-contact Liquid Measurement, 0-20M

    Economical price radar level sensor is a non-contact solid measurement. Measuring range from 0 to 20m, selectable output signal of 4-20mA, RS485 or 4-20mA+HART, power supply of DC 12-24V or AC 220V, installation of DN80, DN100 or DN150 flange. Radar level transmitter consists of protection head with LCD display, waterproof connectors, internal radar antenna, horn and installation accessory for measuring various solids.
    SKU: ATO-LEVS-902T
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Ultrasonic radar level sensor for non-contact corrosive liquid, vapors, volatile liquid level measurement has maximum measuring range 0-20m, can transmit and output 4-20mA, HART or RS485 signal to remote control system.


    Model ATO-LEVS-RD902T
    Shipping Weight 6.5kg
    Measuring Range 0-20m
    Accuracy ±10mm
    Resolution 1mm
    Display LCD Display
    Measured Interval 1s (according to parameter setting)
    Adjustment Time 1s (according to parameter setting)
    Microwave Frequency 26GHz
    Output Signal* 4-20mA, Modbus RTU (RS485 Port), 4-20mA+HART
    Power Supply* DC 12-24V, AC 220V/50Hz
    Material Shell: Aluminum, Process Connection: 304 Stainless Steel, Horn: 304 Stainless Steel
    Horn Antenna Size* Φ78mm/ Φ98mm/ Φ146mm
    Pressure -0.1 ~ 2.0MPa
    Shock Resistance 10m/s2, (10~150)Hz
    Communication Protocol Modbus
    Medium Corrosive Liquids, Vapors, Volatile Liquids
    Storage Temperature -40~+100℃
    Process connection (antenna) temperature -40~+150℃
    Medium Temperature* -40~+130℃, -40~+230℃
    Protection Class IP67
    Electrical Connection 2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2" NPT
    Installation* Flange
    Warranty 12 Months

    Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

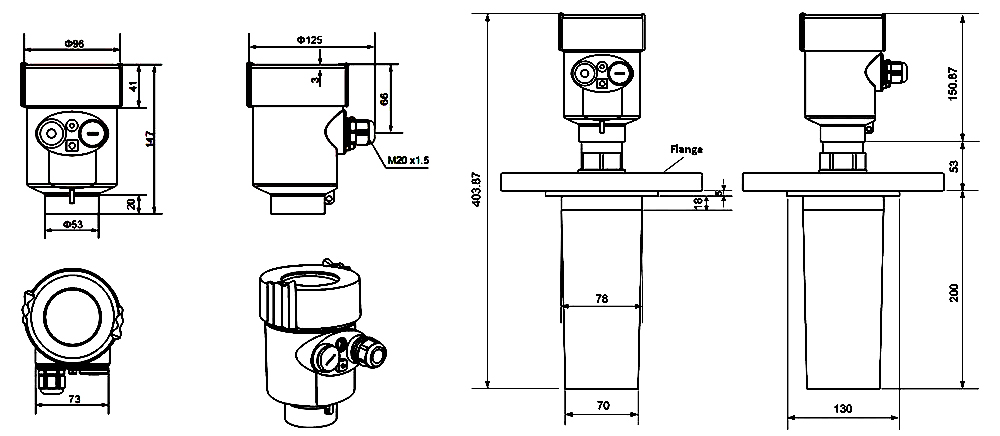

    Dimensions (Unit: mm)

    Dimensions of radar level sensor


    Radar level sensor 10m installation


    Radar level sensor 10m wiring

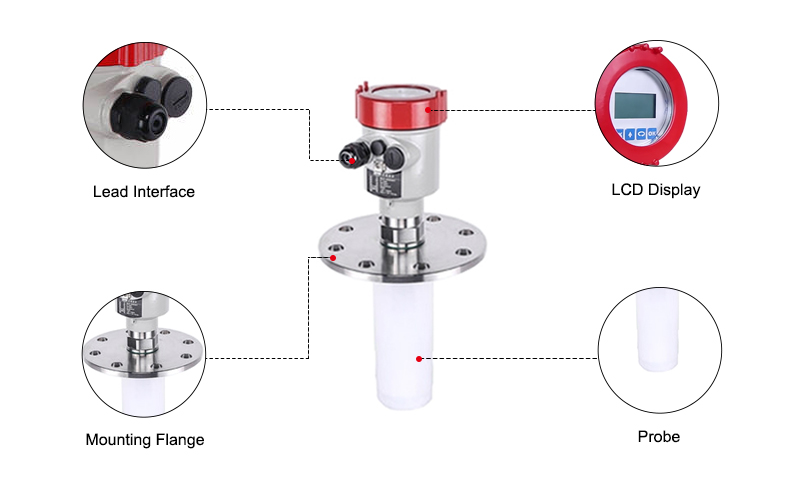

    0-20M Radar Level Sensor Details

    Tips: Radar level sensor measurement range description

    1. The top dead zone refers to the minimum distance between the highest material surface of the material and the measurement reference point.
    2. Bottom dead zone refers to a distance near the very bottom of the cable that cannot be accurately measured.
    3. The effective measurement distance is between the top dead zone and the bottom dead zone.

    Note: Radar level sensor can only ensure reliable measurement of the level in the tank when the material is between the top dead zone and the bottom dead zone.
