Rebar Scanner and Corrosion Detector

$2,484.19
Favorable price rebar scanner and corrosion detector for sale. This is an advanced tool used in civil engineering and construction to assess the structural integrity of reinforced concrete. By providing real-time data on rebar distribution and corrosion levels, it enable engineers to make informed decisions regarding maintenance, repair, or replacement of deteriorating structures.
SKU: ATO-ELB-RXS300
30-day Returns
Free Shipping
Delivery date: 6-12 days

Rebar scanner and corrosion detector are advanced tools used in construction and infrastructure maintenance. The rebar scanner employs electromagnetic or ground-penetrating radar technology to non-destructively locate and map reinforcement bars (rebar) within concrete structures. This helps ensure structural integrity by assessing the placement and condition of the reinforcement.

Specification

Model ATO-ELB-RXS300
Rebar Scanning Protective Layer Thickness Measuring Range (Nominal) First Range: 6~90mm
Second Range: 7~200mm
Protective Layer Thickness Calibration Range 0~±50mm
Rebar Diameter Measuring Range (Nominal) φ6~φ50mm
Error Range of Rebar Diameter Measuring Value ±1 Level
Maximum Allowable Error in Measuring Value of Rebar Protective Layer Thickness
Protective Layer Thickness First Range Protective Layer Thickness Second Range
6~59mm, ≤±1 7~79mm, ≤±1
60~69mm, ≤±2 80~119mm, ≤±2
70~90mm, ≤±4 120~200mm, ≤±4
Rebar Corrosion Detection Detection Method Potential Method, Gradient Method
Measuring Potential ±3000mV
Test Accuracy ±0.1mV
Measuring Point Spacing 1~100cm
Data Storage Capacity 5400 Test Areas, 228,000 Measurement Point Data
Measure Area 8100m2
Data Storage Capacity Can Store More Than 200,000 Measurement Points
Data Transmission Method Type-C Data Interface
Ambient Temperature -10°C~+50°C (Avoid Direct Sunlight for Long periods)
Relative Humidity 90%RH
Electromagnetic Interference No Strong Alternating Electromagnetic Field
Power Supply Built-in Rechargeable Lithium Battery
Dimension 219x56x139mm


Application

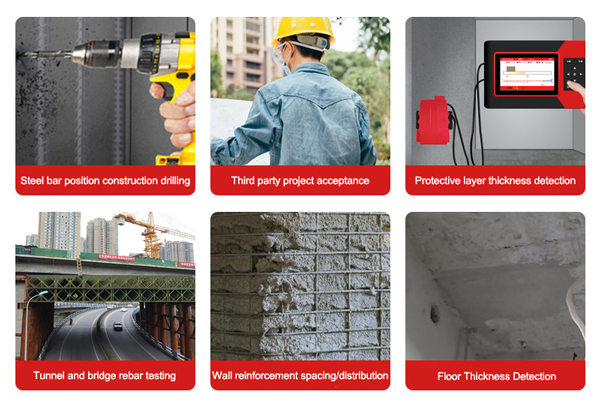

Rebar scanner and corrosion detector application

Tips: Are rebar scanners suitable for post-construction inspections?

Yes, rebar scanners are highly suitable for post-construction inspections. These tools utilize advanced technology such as electromagnetic or ground-penetrating radar to detect and locate reinforcement bars (rebar) within concrete structures. Post-construction inspections are crucial to ensure the structural integrity and safety of buildings and infrastructure. Rebar scanners provide non-destructive testing, allowing inspectors to assess the condition of the reinforced concrete without causing damage. They can identify the spacing, depth, and diameter of rebars, helping detect any anomalies, corrosion, or construction defects. This information is valuable for evaluating the overall health of the structure and making informed decisions about maintenance or repairs. Rebar scanners contribute to efficient and cost-effective post-construction assessments, promoting structural durability and safety.
