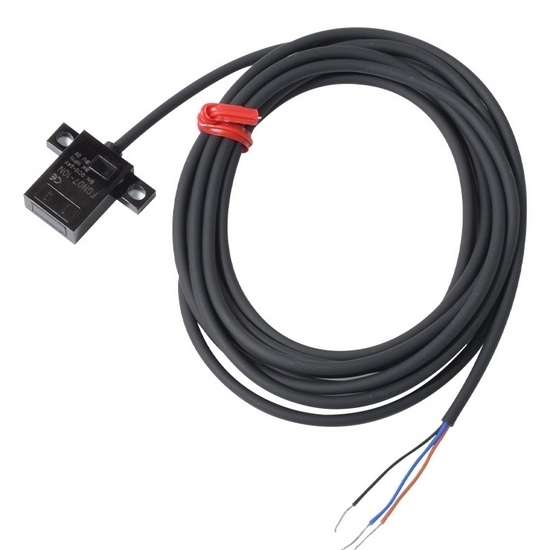

    Mini Rectangular Photoelectric Switch, 10mm, 24V
    rectangular photoelectric switch
    rectangular photoelectric switch

    Mini Rectangular Photoelectric Switch, 10mm, 24V

    5 out of 5 based on 1 reviews | Write a review
    $52.94
    ATO Mini rectangular photoelectric switch features a compact body, offering a 0–10mm diffuse sensing distance and operating on 24V DC, while providing fast <1ms infrared detection for precise short-range performance in tight automation spaces.
    *
    SKU: ATO-PHOS-24V
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Designed for tight spaces, this micro photoelectric sensor delivers stable infrared detection with strong ambient-light resistance. Multi-directional sensing and multiple output options can be selected according to individual needs. Built-in protection and a durable design ensure reliable industrial performance.

    Specification

    Model

    ATO-FGN07-10N; ATO-FGN07-10P;

    ATO-FGN07-10NA; ATO-FGN07-10PA

    ATO-FGN07-10ND; ATO-FGN07-10PD;

    ATO-FGN07-10NAD; ATO-FGN07-10PAD
    Detection Direction Front Above
    Detection Type Diffuse Reflection
    Detection Distance 0-10mm
    Connection Method 3-core cable (2.5mm diameter, 2m length)
    Power Supply Voltage 12-24VDC
    Light Source 940nm infrared modulated light
    Control Output NPN.NO/NC, PNP.NO/NC
    Sensitivity Adjustment None
    Maximum Output Current 50mA
    Current Consumption <25mA
    Response Time <1ms
    Power Polarity Reversal Protection Built-in
    Short Circuit & Overload Protection Built-in
    Hysteresis 10%
    Ambient Temperature -25°C to 55°C
    Ambient Humidity 35%-85% RH
    Ambient Light Intensity Daylight: 10,000 lx, Artificial Light: 3,000 lx
    IP Rating IP66
    Dimensions 26×20×7mm
    Weight 200g
    Notes Customizable 5V products available

    Supplementary Form

    Model Detection Direction Output Method Operating Voltage
    ATO-FGN07-10N Front Detection NPN NO DC12-240V
    ATO-FGN07-10P PNP NO
    ATO-FGN07-10NA NPN NC
    ATO-FGN07-10PA PNP NC
    ATO-FGN07-10ND Above Detection NPN NO DC12-24V
    ATO-FGN07-10PD PNP NO DC12-240V
    ATO-FGN07-10NAD NPN NC DC12-24V
    ATO-FGN07-10PAD PNP NC


    Feature

    1. Compact Design: Mini photoelectric sensor 26×20×7mm fits tight spaces.
    2. Fast Detection: <1ms response with 0–10mm short-range sensing.
    3. Ambient-Light Resistant: 940nm infrared works in bright or dusty environments.
    4. Durable & Reliable: Built-in protection ensures stable industrial performance.

    Dimension

    Rectangular photoelectric switch dimension_1

    Rectangular photoelectric switch dimension_2

    Wiring Diagram

    Rectangular photoelectric switch wiring diagram_1

    Rectangular photoelectric switch wiring diagram_2

    Rectangular photoelectric switch wiring diagram_3

    Tip: How to select the appropriate photoelectric switch model for a system?

    Selecting the right mini rectangular photoelectric sensor requires considering both the sensing direction and the output type to match the control system requirements. Evaluate the installation environment, target material, and detection distance to ensure consistent detection performance. Choosing the proper model helps integrate the sensor seamlessly into equipment while maintaining stable, short-range detection.

    Existing reviews of Mini Rectangular Photoelectric Switch, 10mm, 24V
    It works very well
    Works well in tight spaces and gives quick, reliable short-range detection. Handles bright light without issues and feels solid for daily use.
    From: Ford | Date: 27/11/2025
    Was this review helpful? Yes No (0/0)
    Load more reviews...
    Write your review for Mini Rectangular Photoelectric Switch, 10mm, 24V
    • Only registered users can write reviews
    • Bad
    • Excellent
    Related products
    Micro Ir Diffuse Photoelectric Switch, M3/M4/M5/M6/M8

    Micro Ir Diffuse Photoelectric Switch, M3/M4/M5/M6/M8

    $49.12
    SKU: ATO-PHOS-M
    Compact micro IR diffuse photoelectric switch with 10–30V wide voltage range and multi-protection design. Features imported optical module, a stainless steel shell, and 5ms fast response for stable, accurate detection. Ideal for automation and small equipment applications.

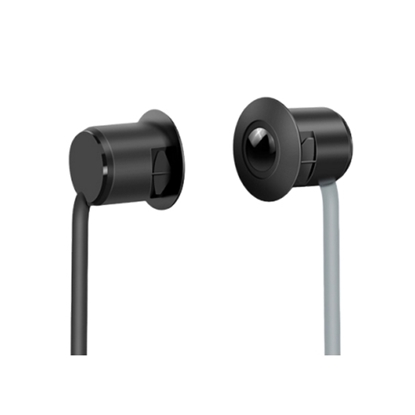

    Micro Ir Through Beam Photoelectric Switch, 10-30VDC
