Refrigeration Pressure Switch, -0.2 to 32 Bar

$84.23
Factory price refrigeration pressure switch for sale online, provides different pressure adjustment range options -0.2-7.5 bar/8-32 bar, the maximum working pressure can reach 35 bar, suitable for a variety of media such as refrigerant, air, water and oil. It is often used to control the pressure of the compressor in the refrigeration system.
*
*
SKU: ATO-RPS-LF58
30-day Returns
Free Shipping
Delivery date: 6-12 days

The refrigeration pressure switch can control high and low pressure. Its internal micro switch structure ensures good performance of the switch.

Features

  • Refrigeration pressure switch has an accuracy of up to ±0.2 bar and a service life of 200,000 times.
  • The pressure switch has good sealing performance, effectively prevents leakage, and improves the reliability of the product.
  • It adopts a shrapnel switch structure, stable performance, and ensures long-term reliable operation.
  • The pressure/differential pressure scale line interface is clear, providing a good visual experience, and is convenient for users to read quickly.

Specification

Technical parameters

Model ATO-LF5832
Low pressure end High pressure end
Pressure adjustment range (Bar) -0.2-7.5 8-32
Pressure difference (Bar) 0.7~4 4
Factory setting (Bar) Cut off (on) 3 20
Cut on (off) 2 16
Maximum working pressure (Bar) 20 35

Electrical parameters

Rated current (A)\rated voltage (V)
125VAC
250VAC
24VDC
250VAC
Full load current
20A
10A
8A
50VA
Instantaneous current
72A
72A
64A
4A
Temperature -40~120℃
-40~260℃
Medium Refrigerant, Air, Water, Oil

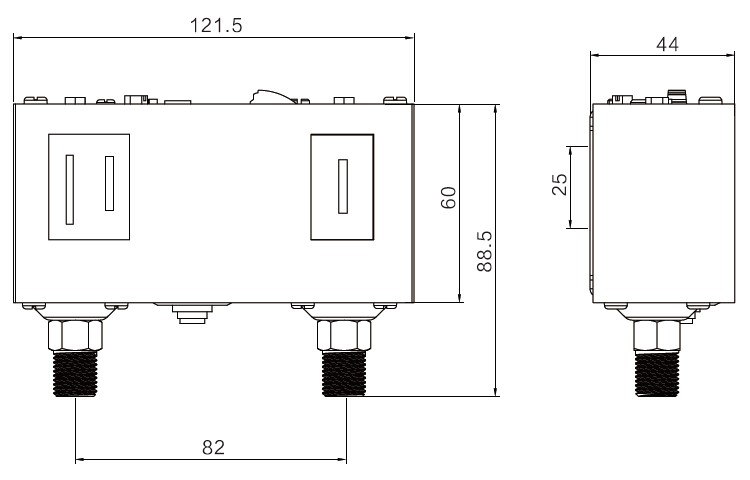

Dimension (mm)

Refrigeration pressure switch dimension

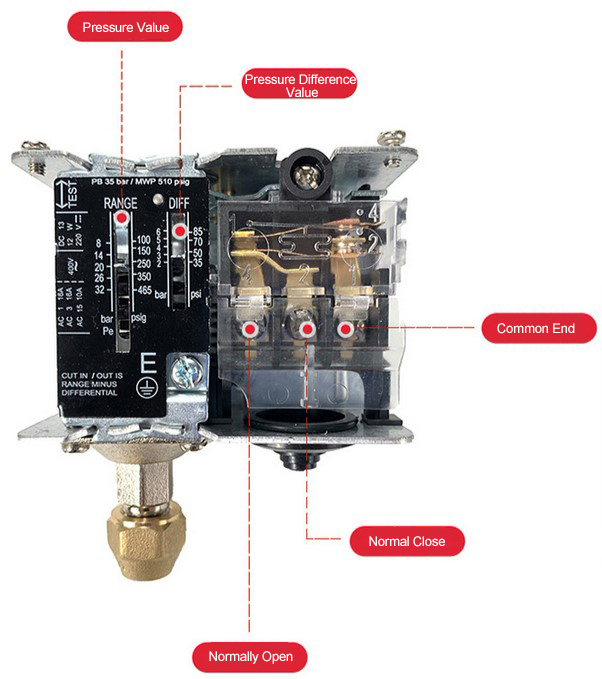

Details

Refrigeration pressure switch detail

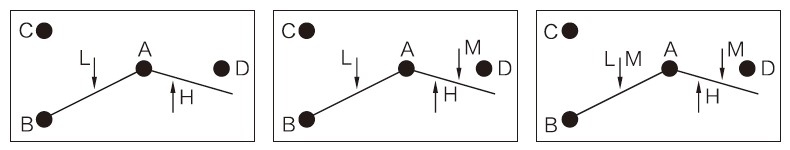

Contact function

The arrow indicates the direction of increase, and M indicates manual reset.

Refrigeration pressure switch contact function

Applications

Refrigeration pressure switch application

Tips: What is a refrigeration pressure switch?

A refrigeration pressure switch is a device used to monitor and control pressure changes in a refrigeration system. It can automatically start and stop the equipment according to the pressure in the system, thereby ensuring that the system operates within a safe and stable pressure range. Its main function is to protect the refrigeration system, avoid equipment damage caused by overpressure or underpressure, and ensure the efficient operation of the refrigeration system. Pressure switches are widely used in air-conditioning systems, refrigeration equipment, refrigerators, and other refrigeration applications, playing a key protection and control role.

This pressure switch usually has high-precision pressure control, which can accurately start or stop equipment such as compressors and condensers when the pressure changes. In addition, it has a sturdy structure and a long service life. Through excellent sealing and durable materials, the refrigeration pressure switch can operate stably in harsh working environments, ensuring the long-term reliability of the system.
