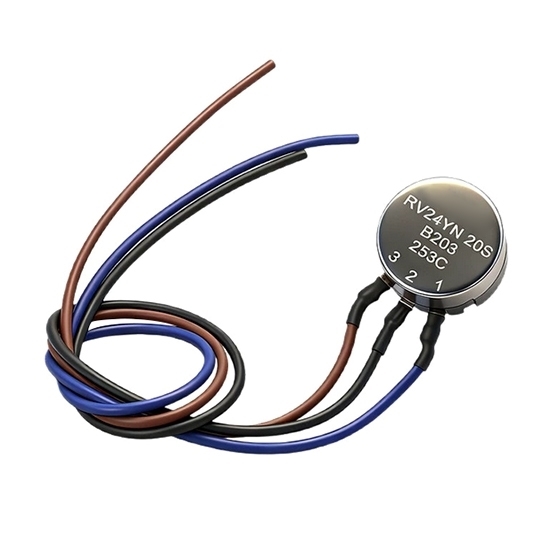

Rotary Potentiometer with Wire, 1K/2K/5K/10K/20K Ohm

Wired rotary potentiometer with  ±10% tolerance, AC 500V withstand voltage, and -10℃ to +60℃ operating temperature provides stable performance in various environments. Featuring corrosion-resistant housing, dust-resistant wiring port this potentiometer ensures reliable operation for instruments, automotive electronics, and industrial systems. Order this precision potentiometer today.

Specification

Features

1. Smooth & Precise Rotary Adjustment: Designed with a 300°±10° rotation angle and stable operating torque, this rotary potentiometer delivers smooth adjustment and accurate signal control, making it suitable for applications requiring precise and reliable variable resistance adjustment.
2. Silver-Plated Copper Contacts: The potentiometer adopts silver-plated copper contacts to enhance electrical conductivity and contact sensitivity, ensuring faster response, lower signal loss, and stable performance during continuous operation.
3. Long Service Life: With a rotational life of more than 15,000 cycles and strong mechanical construction, this precision potentiometer provides excellent durability and maintains consistent performance in long-term use.
4. Stable Electrical Performance: Featuring 100MΩ minimum insulation resistance, AC 500V withstand voltage, and low slider noise of ≤47mV, this rotary potentiometer with wire ensures safe operation and stable signal output for precision control systems.
5. Durable Housing: Built with a corrosion-resistant housing and high mechanical strength, this potentiometer with wire offers enhanced durability and reliable operation in industrial equipment, automation systems, and electronic devices.
6. Easy Integration with Wired Design: The integrated wire connection and dust-resistant wiring port simplify installation while improving connection reliability, allowing this wired rotary potentiometer to be easily integrated into various control panels and electronic systems.
7. Wide Application Compatibility: Designed for industrial automation, smart home devices, instruments, automotive electronics, energy equipment, and entertainment systems, this potentiometer provides a versatile solution for different control applications.

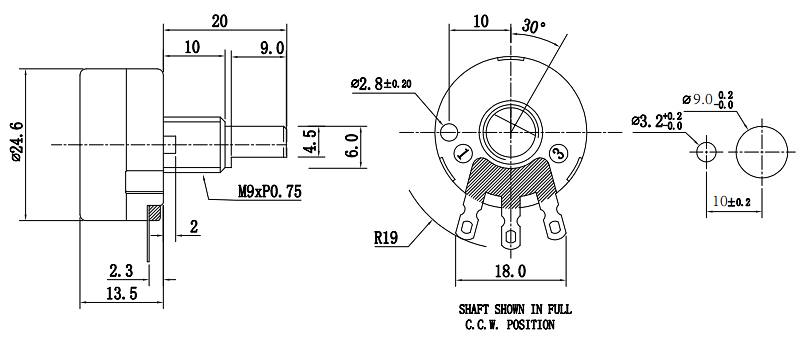

Dimension (unit: mm)

Tips：How to choose the right potentiometer resistance value?

Selecting the correct potentiometer resistance value is essential for achieving stable control performance. The resistance value should be chosen according to the circuit voltage, current requirements, input impedance, and adjustment accuracy. Lower resistance potentiometers are generally suitable for higher current applications, while higher resistance models are often used for signal adjustment and voltage control with lower power consumption. A value that is too low may increase circuit loading and power loss, while a value that is too high may reduce signal stability due to external interference. Proper resistance selection helps ensure smooth adjustment, accurate output, and reliable long-term operation of the rotary potentiometer.
