    Signal Isolator 4-20mA with USB, LCD Display, RS485

    5 out of 5 based on 1 reviews | Write a review
    Signal Isolator can support DC current/DC voltage/RTD sensor/thermocouple input signals, such as 4-20mA, 0-20mA, 0-10mA, 0-5V, 0-10V, 1-5V, etc. Signal isolator has pluggable terminals, external USB interface, optional LCD display and RS485 communication. USB interface can be connected with external programming device to set type of input temperature, transmitter range and other parameters. LCD display can show parameters of different channel, actual measured value, theoretical output value, unit and channel number by buttons.
    Availability: Out of stock
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    This SKU ATO-SIGNI-506E is out of stock.
    We recommend you another signal isolator ATO-SIGNI-602S, which has up to 2 input channels & 4 output channels, types of signal 4-20mA, 0-10mA, 0-20mA, 0-5V, 1-5V and 0-10V.

    Signal isolator can convert 4-20mA/0-20mA/0-10mA/0-5V/0-10V/1-5V signal to standard signal or other customized signal.


    Model ATO-SINIR-506E
    Shipping weight 0.5kg
    Dimension 109*18.5*116.5mm
    Input signal * 4-20mA, 0-20mA, 0-10mA, (4-20mA)^0.5, (0-10mA)^0.5, 0-5V, 0-10V, 1-5V, ±5V, (0-5V)^0.5, (1-5V)^0.5
    Input impedance Current output: ≤250Ω, voltage output: ≥500kΩ
    Output signal * 4-20mA, 0-20mA, 1-10mA, 0-5V, 1-5V
    Output load Current RL≤500Ω, voltage RL≥250kΩ
    Relay alarm output Capacity: DC 30V/2A, AC 125V/0.6A
    Communication * MODBUS-RTU protocol, RS485
    Power supply DC 24V±10%, AC 100-265V/50-60Hz
    Accuracy 0.2%FS±1 digit
    Number of input & output channels 1 input channel & 1 output channel, 1 input channel & 2 output channels, 2 input channels & 2 output channels
    Power dissipation DC 24V 1 output channel: ≤1.7W, DC 24V 2 output channels: ≤2.2W, AC 100-265V 1 output channel: ≤2.5W, AC 100-265V 2 output channels: ≤3W
    Temperature drift 50ppm/℃
    Work environment Temperature: 0~50℃, humidity: ≤85%RH, far away from caustic gas
    Installation 35mm DIN rail

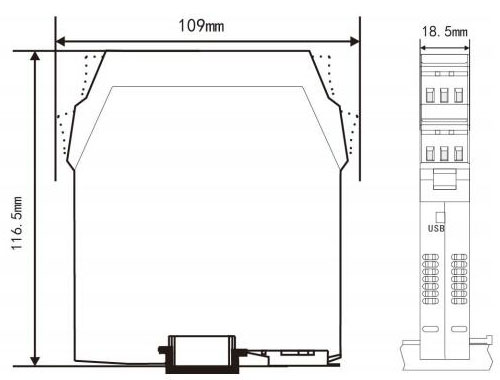

    Dimensional drawing:
    Signal isolator 4-20ma dimensional drawing

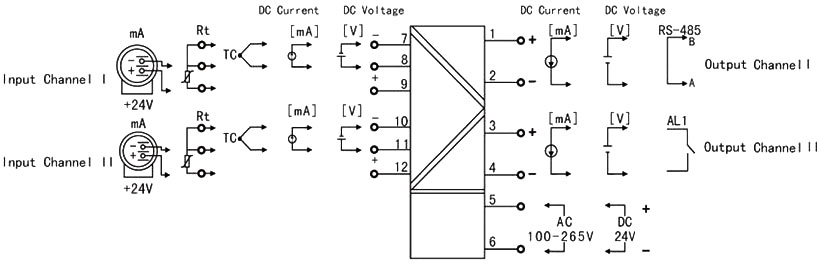

    Wiring diagram:
    Signal isolator 4-20ma wiring diagram
    Tips: Functions of signal isolator

    1. Isolate input signal and output signal
      On the one hand, the signal isolator can solve the problem of different ground reference points generated when the ground loop is connected with the equipment. On the other hand, it can effectively remove the radio frequency and electromagnetic interference that circuits may suffer during transmission.
    2. Signal isolation and distribution
      Two output signals can be both identical, and different from each other. Two receiving equipments are completely isolated. Any equipment fails, it will not affect the entire loop and the other equipment.
    3. Avoid power conflict
      The signal access terminal of the receiving device is equipped with a 24V power supply, however, a 4-wire transmitter is used on site and the output signal is an active signal. When connecting an output loop powered signal isolator, it is powered by the receiving device through a signal output line. Moreover, the active signal of the 4-wire transmitter will be output to the receiving device after isolation, thus it not only avoids the power conflict, but also isolates the signal.
    4. Provide power supply and isolate
      The 4-wire external powered signal isolator can provide power supply to a 2-wire transmitter, thus it avoids providing additional power supply to the transmitter, and also provides the signal isolation function.
    5. Signal conversion and isolation
      The isolator has the signal conversion function and can accept DC standard (or non standard) signal, thermocouple signal, RTD signal, potentiometer signal or even AC signal. Moreover, it can also output various signals that the user needs.
    6. Smart signal isolator
      In addition to the excellent performance of conventional signal isolator, a CPU control unit can also be added in a signal isolator to realize the field programmable function and RS485 communication function.
