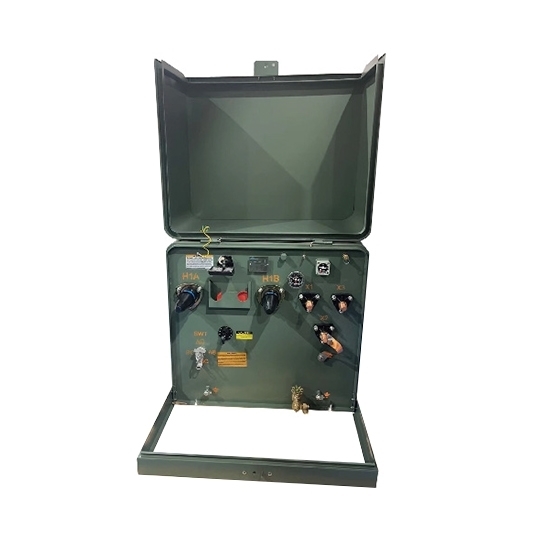

    Single Phase Pad Mounted Distribution Transformer
    Single phase pad mounted distribution transformer
    Single phase pad mounted distribution transformer
    Single phase pad mounted distribution transformer
    Single phase pad mounted distribution transformer

    Single Phase Pad Mounted Distribution Transformer

    5 out of 5 based on 1 reviews | Write a review
    $2,499.00
    Single phase pad mounted distribution transformer is a fully insulated, hermetically sealed distribution unit designed for reliable low-voltage power supply, featuring compact pad-mounted construction, low loss performance, CRGO core technology, and multiple kVA and voltage options (25–250 kVA, 7.62–19.92 kV primary, 120–240 V secondary) to ensure efficient, safe, and space-saving power distribution for residential, commercial, and utility applications.
    SKU: ATO-DT-SPPM
    30-day Returns
    Delivery date: 10-20 days

    Note: Capacity, primary voltage, secondary voltage, and certification requirements are customizable. Please contact us for more details and pricing.

    Single phase pad mounted distribution transformer features a compact, fully enclosed design for safe and efficient power distribution. With low noise, low losses, and reliable performance, it is widely used in residential, commercial, and utility power networks.

    Specification

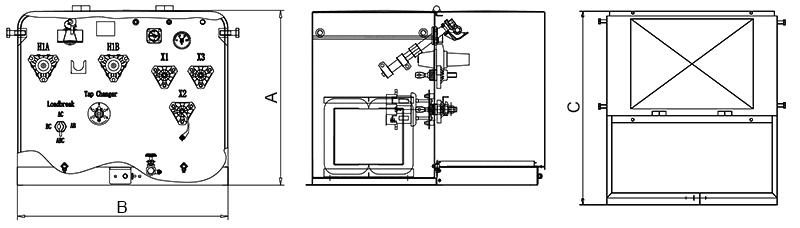

    Single phase pad mounted distribution transformer size

    Rating (kVA) HV (kV) Tap (%) LV (V) Loss (W) Dimension (mm) Weight (kg)
    No Load Full Load A B C Oil Weight Total Weight
    25 7.62 ±2*2.5% 120–240 115 420 680 830 950 175 405
    37.5 130 520 700 850 980 190 423
    50 150 660 730 875 1000 205 459
    75 190 980 800 895 1030 245 557
    100 245 1230 840 950 1105 317 697
    167 380 1560 910 990 1185 389 925
    250 550 2000 975 1090 1215 462 1215

    25 19.92 ±2*2.5% 120–240 115 420 680 830 950 175 405
    37.5 130 520 700 850 980 190 423
    50 150 660 730 875 1000 204 464
    75 190 980 800 895 1030 243 562
    100 245 1230 840 950 1105 311 694
    167 380 1560 910 990 1185 386 930
    250 550 2000 975 1090 1215 462 1215


    Feature

    1. Compact Pad-mounted Design: Single phase pad mounted distribution transformer features a space-saving ground-mounted design for easy installation in residential, commercial, and utility power distribution systems.
    2. Hermetically Sealed Construction: Fully sealed design protects internal components from moisture, dust, and environmental contaminants, enhancing reliability and service life.
    3. Low Loss & High Efficiency: Single phase pad mounted distribution transformer utilizes an optimized core design to reduce no-load losses and enhance energy efficiency.
    4. Low Noise Operation: Quiet performance makes it ideal for installation near residential and public areas.
    5. Versatile Indoor & Outdoor Use: Single phase pad mounted distribution transformer is widely used in residential, commercial, industrial, healthcare, and educational power distribution systems.
    6. Easy Installation: Single phase pad mounted distribution transformer combines a compact footprint with easy installation, reducing deployment complexity.

    Application

    The single-phase pad mounted distribution transformer serves residential neighborhoods, commercial developments, light industrial facilities, and rural agricultural areas by providing reliable and efficient power distribution in diverse environments.

    Single phase pad mounted distribution transformer application

    Tips: Pad Mounted vs Pole Mounted Distribution Transformer Comparison (Single Phase)

    Feature Pad Mounted (Single Phase) Pole Mounted (Single Phase)
    Installation Ground-mounted on concrete pad Mounted on utility pole
    System Type Underground / urban distribution Overhead / rural distribution
    Safety Fully enclosed, high protection Elevated installation, exposed structure
    Space Requires ground space No ground space required
    Maintenance Easy ground-level access Requires pole access equipment
    Protection High sealing against weather & dust Weather-resistant outdoor design
