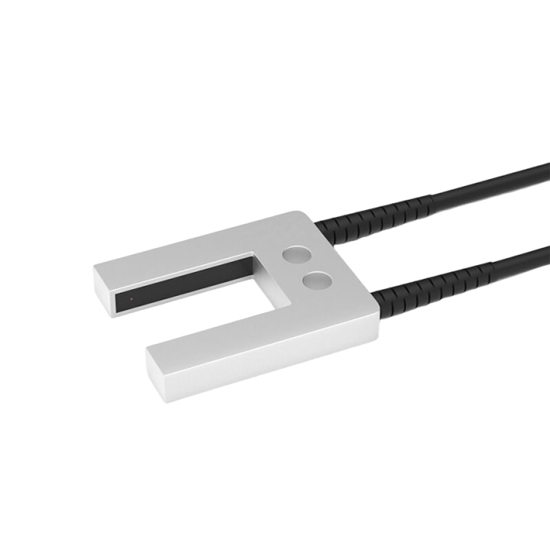

Slotted Fiber Optic Sensor, U-shaped, 12mm Distance

ATO slotted fiber optic sensor adopts imported cores, featuring excellent light conductivity and bending resistance, with an effective detection distance of 12mm. It has a fiber length of 1m and a bending radius of R25, and needs to be used with a fiber optic amplifier, being compatible with all conventional amplifiers available on the market. Industrial fiber optic sensor is easy to install, stable and anti-shake, capable of accurate detection in various working environments.

Specification

Features

• Excellent performance: ATO slotted fiber optic sensor made of aviation aluminum and imported wire cores, it has excellent light conductivity and bending resistance. The effective detection distance reaches 12mm, enabling precise detection of target objects.
• Strong adaptability: It can be adapted to all conventional optical fiber amplifiers on the market and is compatible with various equipment systems.
• Easy installation: Industrail fiber optic sensor is easy to install, stable and anti-shake, and can work stably in various complex working environments such as chemical industry, production lines, and textile industry.

Note: This fiber optic sensor needs to be used with amplifier .

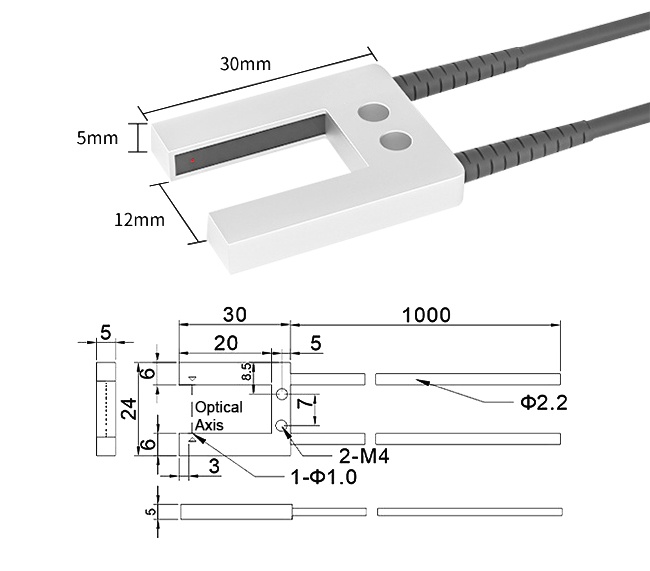

Dimensions (unit: mm)

Application

Tips: Why Do I Need ATO Slotted Fiber Optic Sensor?

The core advantages of choosing ATO fiber optic sensors lie in the combination of their industrial-grade reliability, precise performance, and high adaptability, which can perfectly meet the actual needs of automated scenarios. The specific advantages can be divided into the following three points:

1. Industrial-grade protection

ATO fiber sensor has an IP67 protection rating, featuring complete dustproof capability and the ability to withstand short-term immersion in water (within 30 minutes at a water depth of 1 meter). Meanwhile, it is made of aviation aluminum, with a sturdy structure and a weight of only 200g. It can not only cope with dusty environments such as dust in the chemical industry and fibers in the textile industry but also adapt to high-frequency vibration scenarios in production lines, and is not easy to be damaged after long-term use.

2. Precise and stable

U-shaped fiber sensor uses imported wire cores, with excellent light conductivity and bending resistance (bending radius R25). A 1-meter-long optical fiber can stably transmit optical signals; the 12mm effective detection distance combined with the single-point through-beam measurement method can accurately identify target objects, reducing misjudgments or missed judgments.

3. Strong compatibility, reducing usage costs

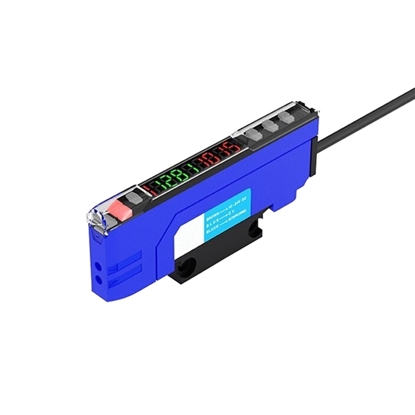

Slotted fiber optic sensor can be adapted to the FW-30N fiber amplifier from ATO Automation Shop and can also be directly adapted to all conventional fiber optic amplifiers on the market. This feature enables compatibility with enterprises' existing equipment, significantly reducing the costs of equipment upgrading and maintenance.
