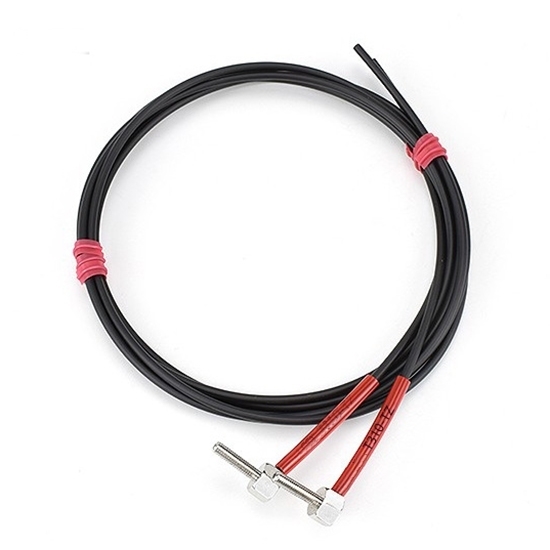

Through Beam Fiber Optic Sensor, M3/M4/M6

$79.28
This through beam fiber optic sensor has high performance and professional design, thread size M3, M4, M6 optional, fiber length 1M and 2M to adapt to a variety of fields, adjustable range of 0~800mm, can easily detect the smallest Φ0.5mm objects.
*
*
*
SKU: ATO-FIBER-TBS
30-day Returns
Free Shipping
Delivery date: 6-12 days

For precision manufacturing and automation, the excellent stability and sensitivity of the CE-certified through beam fiber optic transducer is the perfect choice to improve your inspection accuracy. Fiber optic core diameter of 1mm, outer diameter of 2.2mm, the choice of plastic optical fiber, with stainless steel or copper-nickel plated protection tube, durable.

Specification

Model ATO-LSDT310-TZ ATO-LSDT410-TZ ATO-LSDT610-TZ ATO-LSDT320-TZ ATO-LSDT420-TZ ATO-LSDT620-TZ
Thread Size M3*0.5mm M4*0.75mm M6*0.75mm M3*0.5mm M4*0.75mm M6*0.75mm
Fiber Optic Cable Length 1M 1M 1M 2M 2M 2M
Fiber Core 1mm
External Diameter 2.2mm
Sensing Distance 1000mm±10%
Adjustable Sensing Distance 0~800mm
Standard Detector 200*200mm white cardboard
Fiber Material Plastics
Minimum Detection Object Φ0.5mm
Sheath Color Red
Certification CE
Fiber Tube Material Stainless steel Stainless steel Copper nickel plating Stainless steel Stainless steel Copper nickel plating
Product Size M3*16.5-TZ M4*15.5-TZ M6*16.5-TZ M3*16.5-TZ M4*15.5-TZ M6*16.5-TZ
Net Weight 12.1~19.3g 12.1~19.5g 17.4~24.9g 12.1~19.3g 12.1~19.5g 17.4~24.9g

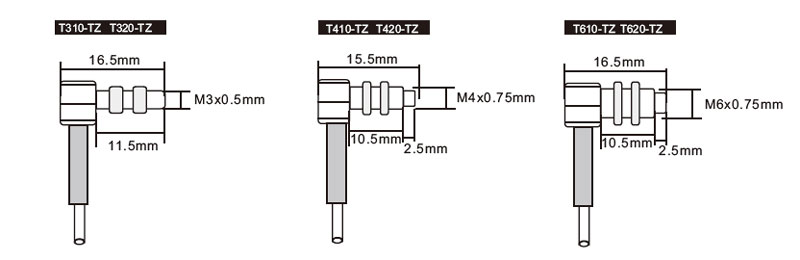

Dimensional Drawing (unit: mm)

Through beam fiber optic sensor size

Note: The transmitter is the same size as the receiver

Applications

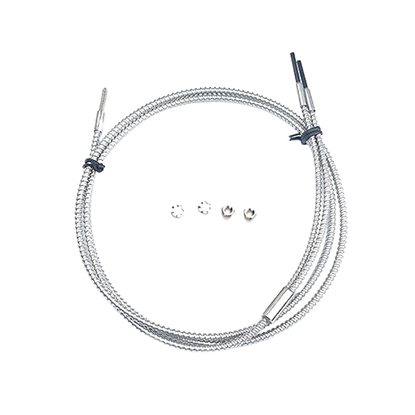

High temperature fiber optic sensor application

Tips: What are the advantages of through beam fiber optic sensors?

  1. High detection accuracy: objects as small as sub-millimeter can be detected precisely.
  2. Long detection distance: the transmitter and receiver are arranged separately, and the detection distance can reach several meters.
  3. Strong resistance to environmental interference: fiber optic material is resistant to high temperature, chemical corrosion and mechanical stress, suitable for harsh environments.
  4. High flexibility: different fiber materials and shapes can be selected according to the needs, adapting to complex installation conditions.

These features make it outstanding in the fields of electronics manufacturing, packaging and automated assembly.
