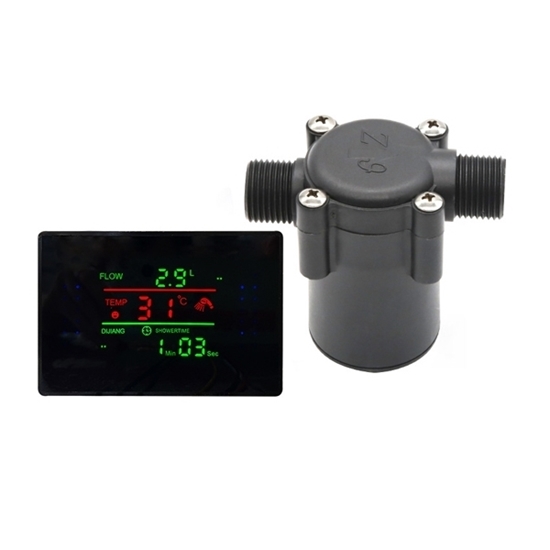

Small Water Turbine Electric Generator with Display Screen

4 out of 5 based on 1 reviews | Write a review

$71.42

Domestic small water turbine electric generator with a display is compact, durable, and eco-friendly, and delivers up to 21.2V AC at a flow rate of 6L/min, with an output range of 4.7–21V AC. Designed with a G1/2" interface (12mm inner, 20mm outer diameter, 15.5mm thread length), hydropower turbine is easy to install and ideal for small-scale energy-saving applications such as sensor faucets, smart showers, and induction sanitary ware.

SKU: ATO-WT-DS

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Proposition 65 Warning

Note: This small water turbine electric generator cannot be used for drinking water.

Micro hydro generator with a display is built from safe materials for long service life. The screen shows real-time flow, temperature, and usage time, making it ideal for bathrooms, faucets, and induction sanitary ware. With strong sealing and easy installation, water turbine generator provides stable and sustainable power for small-scale applications.

Specification

Model	ATO-HY-3683
Inner Diameter	12 mm
Outer Diameter	20 mm
Thread Length	15.5 mm
Interface Size	1/2" (G1/2)
Max Working Pressure	1.75 MPa
Test Pressure	1.2 MPa
Flow Range	2.0 ~ 15 L/min
Max Output	21.2V ±2V AC (6 L/min Flow)
Output Voltage	4.7 ~ 21V ±0.3V AC
Temperature Range	0°C ~ 120°C
Precautions	1. Avoid strong impacts and exposure to corrosive chemicals. 2. Do not drop or strike the unit. 3. Storage temperature: -25°C ~ +65°C 4. Wiring method: red+, black-

Features

Leak-Proof Construction: Features hermetic sealing design for hydroelectric power generator that effectively blocks water ingress.
Abrasion-Resistant Material: Engineered with robust components specifically to ensure extended service life.
ECO-Friendly Compliance: Meets international ROHS standards, eliminating hazardous substances.
Real-Time Performance Monitoring: Provides instant readouts of flow rate and temperature for portable hydropower turbine operation.
Compact Design: Space-optimized format enables straightforward integration into residential piping systems.
Precision Sensing Technology: High-accuracy detection mechanism delivers reliable performance data and operational efficiency.
Gentle Handling Requirement: Essential maintenance protocol for small water turbine generator to preserve system integrity.

Dimension (Unit: mm)

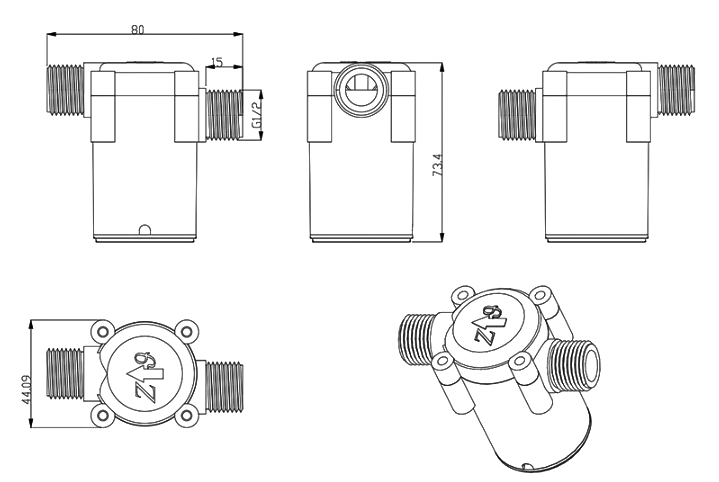

small water turbine electric generator with display screen dimension

Details

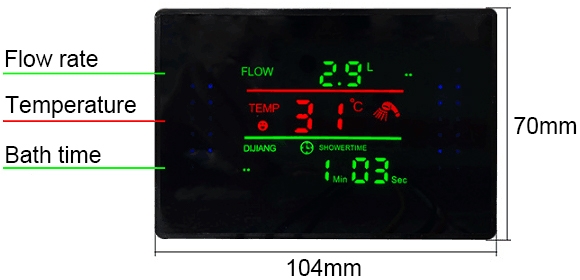

small water turbine electric generator with display screen details

Performance Characteristics

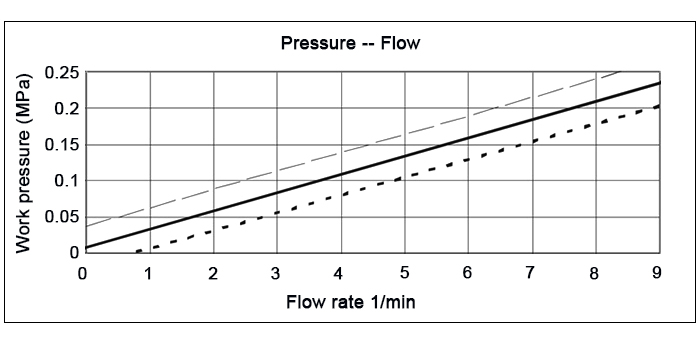

Small water turbine pressure vs. flow rate curve

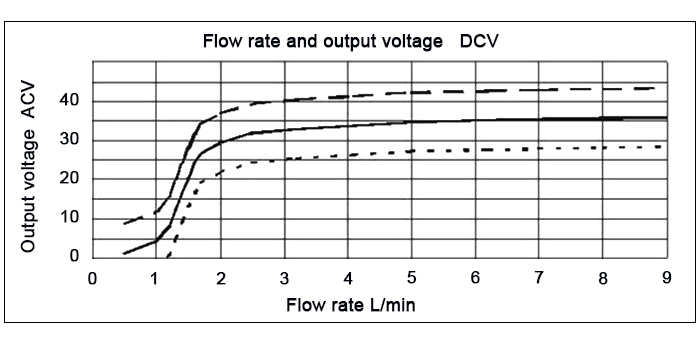

Small water turbine flow rate vs. output voltage curve

Application

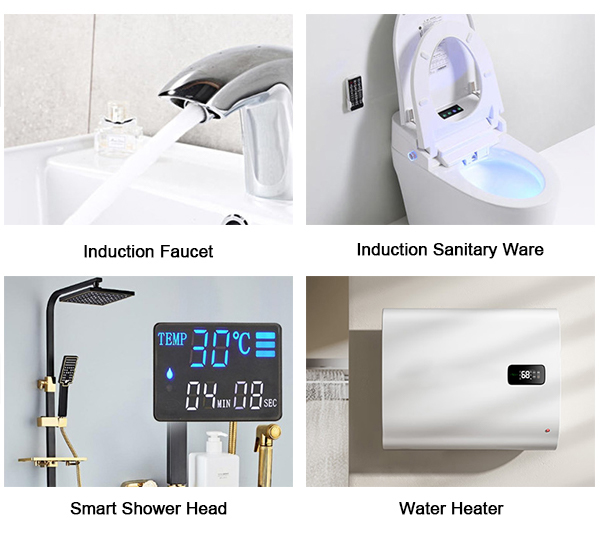

Small water turbine electric generator application

Tips: What makes the water turbine electric generator with display screen different?

The portable water turbine generator with display screen differs from traditional models by integrating a display that shows real-time data such as voltage, current, power, and water flow. Unlike ordinary generators that only output electricity, this feature of ATO hydroelectric power generator allows users to monitor performance and efficiency directly. It is more convenient and intelligent, making it ideal for homes, teaching, research, and outdoor use while offering both clean energy and easier operation.
