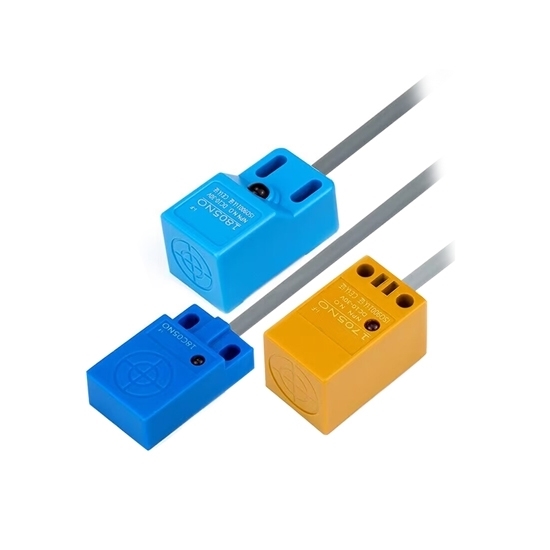

    Square Inductive Proximity Sensor, Rectangular, NPN/PNP, NO/NC

    $44.93
    Buy square inductive proximity sensors online. Square inductive proximity switches are non-contact sensors with a square design for easy installation. Good price proximity switch supports four output modes: NPN NO, NPN NC, PNP NO or PNP NC. The operating voltage is 10~30V, the detection distance is 5mm/8mm, and it has IP67 protection and high and low temperature resistance, suitable for detection in a variety of environments.
    *
    *
    SKU: ATO-SPS-3T
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Low cost square proximity switch for sale online. It is an inductive proximity sensor that comes with NPN NO, NPN NC, PNP NO, or PNP NC output modes, and IP67 protection. The square inductive proximity sensor features a durable ABS plastic shell and operates in temperatures ranging from -25℃ to 70℃.

    Specifications

    Model ATO-Q17/ATO-Q18/ATO-Q18C
    Installation Method Non-flush or Flush Installation
    Output Method NPN NO, NPN NC, PNP NO or PNP NC
    Detection Distance 5mm/8mm
    Operating Voltage 10~30V DC
    Continuous Waves <10%
    No Load Current <10mA
    Maximum Load Current 150mA
    Leakage Current <0.01mA
    Voltage Drop <1.5V
    On-Off Level 1kHz
    Response Time Less Than 0.5ms
    Switching Hysteresis <15% (Sr)
    Repeat Accuracy <3.0% (Sr)
    Protection Level IP67
    Operating Temperature -25℃~70℃
    Temperature Drift <10% (Sr)
    Overload Protection Point 180mA
    Shell Material ABS Plastic
    Standard Wire Length 2m


    Dimension (Unit: mm)

    Inductive proximity sensor dimension

    Tips: What is a square inductive proximity switch?

    A square inductive proximity switch is a type of sensor used in industrial automation to detect the presence or absence of metallic objects without physical contact. This switch operates based on the principles of electromagnetic induction. The sensor typically has a square or rectangular shape and is made of a durable material suitable for industrial environments.

    Inside the square inductive proximity switch, there is a coil that generates an electromagnetic field when an electrical current passes through it. When a metallic object enters the sensing range of the switch, it induces eddy currents in the metal, causing a change in the electromagnetic field. This change is detected by the sensor, triggering the switch to either open or close an electrical circuit. These switches are commonly used for tasks such as object detection, positioning, and automation in various industries due to their reliability, durability, and ability to function in harsh conditions.

    In this video, ATO will show you the  differences between inductive and magnetic types.
