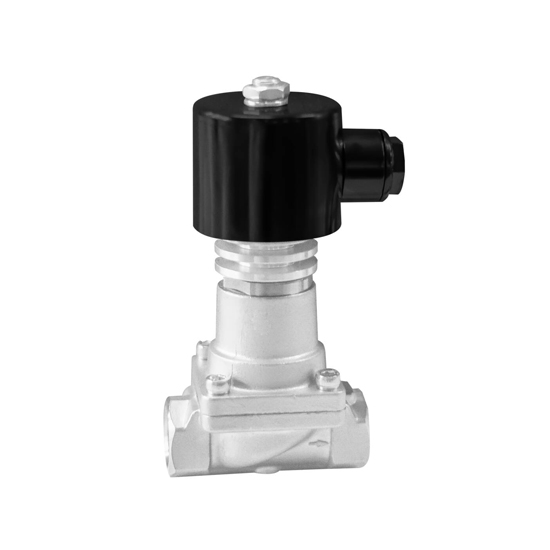

    Steam Solenoid Valve, NPT, Stainless Steel, AC 110V/220V/240V

    $307.76
    High-temperature steam solenoid valve is made of stainless-steel material and can be used for AC 110V, 220V, or 240V power supply. The steam solenoid valve offers a variety of NPT connection diameters (3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2") to meet different flow requirements, suitable for industrial steam systems and more.
    *
    *
    *
    *
    SKU: ATO-SSV-HK10SA
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High-temperature steam solenoid valve adopts a pilot piston structure, which has low power consumption characteristics and is particularly suitable for use in long-term operating pipeline systems. Its seals are designed specifically for steam environments and have a long service life, ensuring stable and reliable operation even under high temperature conditions.

    Specification

    Model ATO-HK10S-12 ATO-HK10S-15 ATO-HK10S-20 ATO-HK10S-25 ATO-HK10S-32 ATO-HK10S-40 ATO-HK10S-50
    Port Size 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
    Orifice (mm) 12 15 20 25 32 40 50
    Cv 4.5 4.5 9.3 12 24 29 48
    Min Pressure 0.05MPa 0.05MPa 0.05MPa 0.05MPa 0.05MPa 0.05MPa 0.05MPa
    Max Pressure (AC 28VA) 1.6MPa 1.6MPa 1.6MPa 1.6MPa 1.6MPa 1.6MPa 1.6MPa
    Max Pressure (DC 22W) 1.6MPa 1.6MPa 1.6MPa 1.6MPa 1.6MPa 1.6MPa 1.6MPa
    Medium Steam, hot water, oil, etc
    Fluid Temperature PEEK (-20℃~300℃), PTFE (-20℃~180℃)
    Port Thread NPT
    Voltage AC 110V/60Hz, 220V/50Hz, 240V/60Hz
    Tolerance ±10%
    Coils Y21H, 28VA (AC), 22W (DC), IP65, 100%ED Y51H, 70VA (AC), 50W (DC), IP65, 100%ED
    Material Body Stainless steel
    Seal PEEK, PTFE
    Armature tube Stainless steel 304
    Moving iron core Stainless steel 430F
    Static iron core Stainless steel 430F
    Springs Stainless steel 304
    Shading rings Copper

    Note: We can customize according to the customer's temperature requirements. If you need customized services, please contact us.

    Dimension (mm)

    Steam solenoid valve npt dimension

    Size A B C
    HK10S-12 73 48 179
    HK10S-15 73 48 176
    HK10S-20 83 60 189.5
    HK10S-25 100 72 189.5
    HK10S-32 130 96 214
    HK10S-40 130 96 214
    HK10S-50 155 122 228

    Tips: Applications of high temperature steam solenoid valve

    • High-temperature steam solenoid valves precisely regulate the flow and direction of steam, ensuring system stability and efficiency.
    • These solenoid valves are used in automated control systems to facilitate automatic switching operations, reducing manual intervention and increasing the automation level of production lines.
    • In steam systems, high-temperature solenoid valves effectively control pressure and temperature, preventing overpressure or overheating, thus protecting equipment and personnel.
    • By accurately controlling steam flow, high-temperature solenoid valves help optimize energy usage, reduce energy waste, and improve overall system efficiency.
    • Commonly used in boilers, heaters, and other steam heating equipment to regulate steam supply and achieve precise temperature and pressure control.
