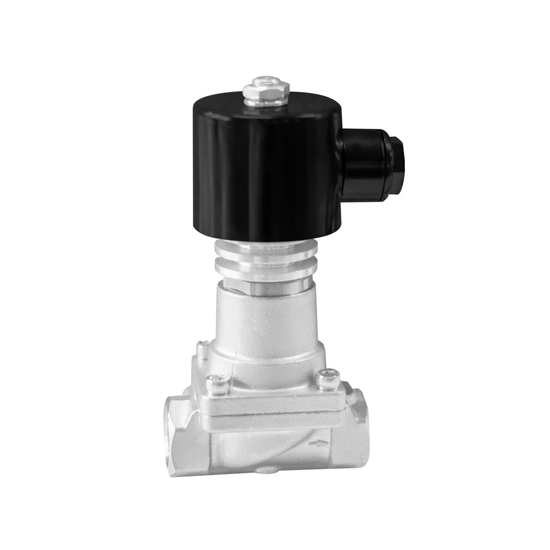

    Steam Solenoid Valve, NPT, Stainless Steel, DC 12V/24V

    $307.76
    Factory price steam solenoid valve for sale online, made of high temperature resistant stainless-steel material and equipped with NPT threaded connection ports. The voltage options are DC 12V or 24V, and multiple calibers are available, including 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2" and 2". The high-temperature steam solenoid valve can be operated in either normally open (NO) or normally closed (NC) mode.
    *
    *
    *
    *
    SKU: ATO-SSV-HK10SD
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High temperature steam solenoid valves are suitable for media such as steam, hot water, and oil, and can operate stably under pressure ranges from 0.05 MPa to 1.6 MPa. It is designed for high temperature environments and provides fluid control in various industrial applications.

    Specification

    Model ATO-HK10S-12 ATO-HK10S-15 ATO-HK10S-20 ATO-HK10S-25 ATO-HK10S-32 ATO-HK10S-40 ATO-HK10S-50
    Port Size 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
    Orifice (mm) 12 15 20 25 32 40 50
    Cv 4.5 4.5 9.3 12 24 29 48
    Min Pressure 0.05MPa 0.05MPa 0.05MPa 0.05MPa 0.05MPa 0.05MPa 0.05MPa
    Max Pressure (AC 28VA) 1.6MPa 1.6MPa 1.6MPa 1.6MPa 1.6MPa 1.6MPa 1.6MPa
    Max Pressure (DC 22W) 1.6MPa 1.6MPa 1.6MPa 1.6MPa 1.6MPa 1.6MPa 1.6MPa
    Medium Steam, hot water, oil, etc
    Fluid Temperature PEEK (-20℃~300℃), PTFE (-20℃~180℃)
    Port Thread NPT
    Voltage DC 12V/24V
    Tolerance ±10%
    Coils Y21H, 28VA (AC), 22W (DC), IP65, 100%ED Y51H, 70VA (AC), 50W (DC), IP65, 100%ED
    Material Body Stainless steel
    Seal PEEK, PTFE
    Armature tube Stainless steel 304
    Moving iron core Stainless steel 430F
    Static iron core Stainless steel 430F
    Springs Stainless steel 304
    Shading rings Copper

    Note: We can customize according to the customer's temperature requirements. If you need customized services, please contact us.

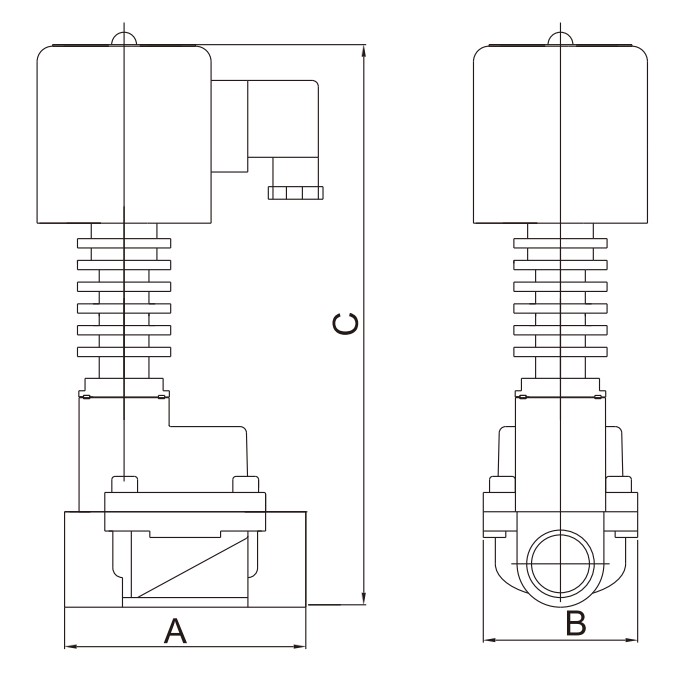

    Dimension (mm)

    Steam solenoid valve npt dimension

    Size A B C
    HK10S-12 73 48 179
    HK10S-15 73 48 176
    HK10S-20 83 60 189.5
    HK10S-25 100 72 189.5
    HK10S-32 130 96 214
    HK10S-40 130 96 214
    HK10S-50 155 122 228

    Tips: What is NPT?

    NPT (National Pipe Tapered) is a standard type of tapered pipe thread widely used for connecting piping systems. Its design feature is that the thread gradually increases, thereby forming a good sealing effect during connection, effectively preventing the leakage of liquids or gases. NPT threads comply with the standards of the American National Pipeline Manufacturers Association (ANSI), ensuring that fittings from different manufacturers can be interchangeable. Its application scope covers various industrial fields such as water pipes, gas pipelines, steam pipelines, etc., providing reliable sealing and pressure resistance performance.
