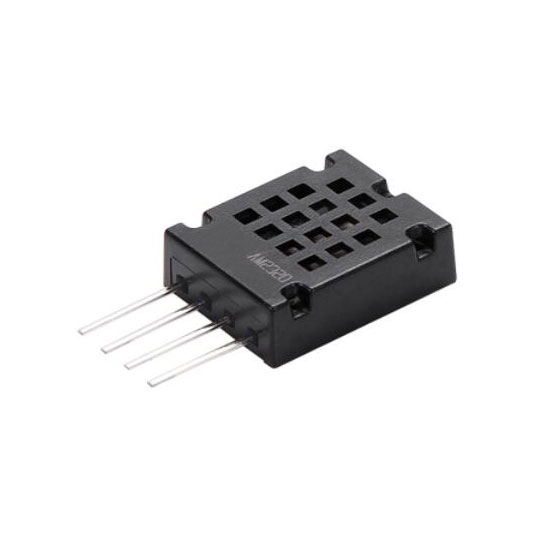

    Temperature and Humidity Sensor, Capacitive, One-wire/I2C

    $24.92
    Temperature and humidity sensor includes a capacitive humidity sensor and a digital temperature sensor, built-in one high-performance 8-bit SCM, optional one-wire/I2C communication mode, with small size, excellent quality, fast response, all automated calibration, completely interchangeability, high cost performance, low power consumption, long signal transmission distance.
    SKU: ATO-TAHS-AM2320/2
    *
    Free shipping
    Delivery date: 6-12 days

    Temperature and humidity sensor has a capacitive humidity sensor and a digital temperature sensor, optional one-wire/I2C communication mode.

    Application: Temperature and humidity sensor is widely used in HVAC, dehumidifiers, automobile, data loggers, humidity regulators, and humidity detection and control system.
    Specification:

    Item AM2320 AM2322
    Weight 0.5g
    Dimension (L*W*H) 12.1*4.5*15.0mm 7.8*4.0*11.3mm
    Communication mode Optional one-wire and I2C
    Supply voltage DC 3.3-5.5V DC 3.1-5.5V
    Measuring range of relative humidity 0~99.9%RH
    Measuring range of temperature -40~+80℃
    Accuracy of humidity ±3%RH ±2%RH
    Accuracy of temperature ±0.5℃ ±0.3℃
    Resolution 0.1℃/0.1%RH
    Long-term stability <0.5%RH/year, <0.1℃/year
    Power consumption <350μA <200μA
    Sampling period 2s
    Response time <5s
    Housing material PC
    Working environment Temperature: -40~80℃, humidity: 0~99.9% no condensation
    Storage environment Temperature: 0~80℃, humidity: <95%RH
    Wiring 1 red: VDD, 2 yellow: SDA (serial data), 3 black: GND, 4 white: SCL (serial clock, or connect to ground in one-wire mode)

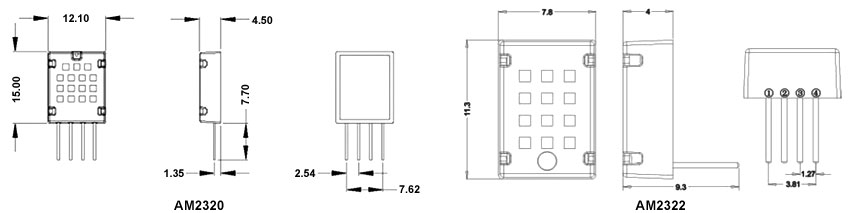

    Dimensional drawing:
    Temperature and humidity sensor AM2320 dimensional drawing
    Pin assignment:
    Temperature and humidity sensor AM2320 pin assignment
    Tips: Recovery processing of temperature and humidity sensor

    The temperature and humidity sensor placed under extreme working conditions or chemical vapors can be restored to standard conditions by following procedures.

    1. Maintain temperature and humidity sensor 2 hours (dry) at 45 ℃ and the humidity <10%RH.
    2. Then maintain temperature and humidity sensor more than 5 hours at 20-30℃ and the humidity >70%RH.
