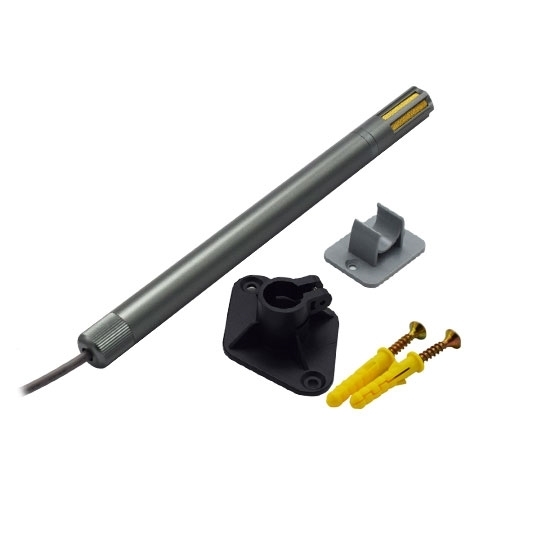

    Temperature and Humidity Sensor, Duct/Wall Mounted, I2C

    $53.97
    Temperature and humidity sensor includes a capacitive humidity sensor and a digital temperature sensor, built-in one high-performance 8-bit SCM, standard I2C interface, duct and wall mounted, all automated calibration, completely interchangeability, with excellent quality, fast response, strong anti-interference ability, long signal transmission distance above 20m.
    SKU: ATO-S-TAHS-AM2315/5A
    *
    Free shipping
    Delivery date: 6-12 days

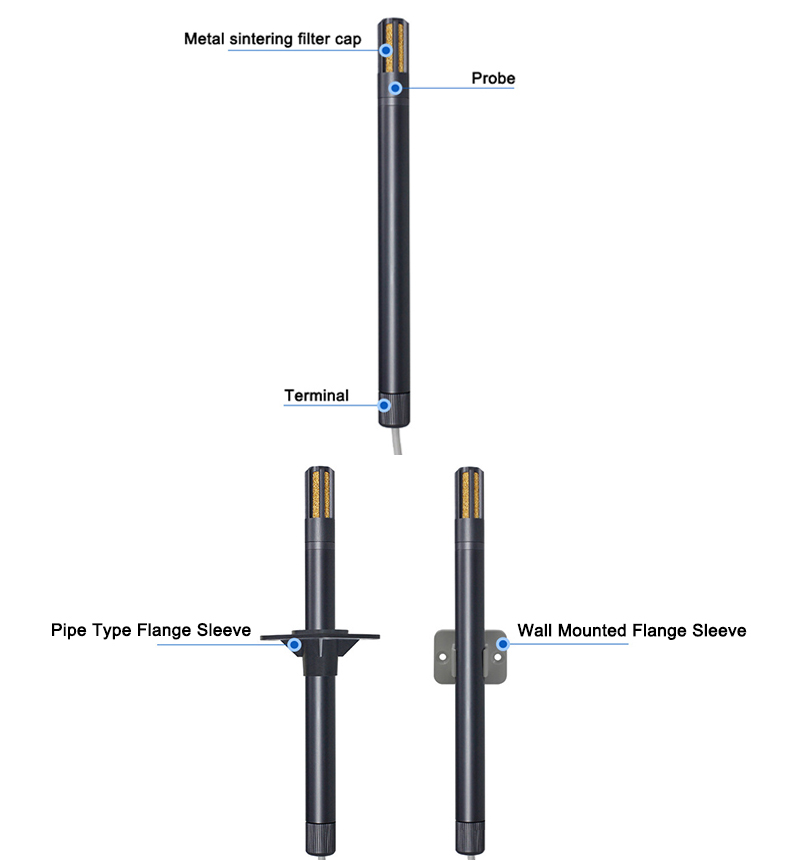

    Temperature and humidity sensor has a capacitive humidity sensor and a digital temperature sensor, standard I2C interface, duct and wall mounted.

    Application: Temperature and humidity sensor is widely used in HVAC, dehumidifiers, automobile, data loggers, humidity regulators, and humidity detection and control system.
    Specification:

    Item AM2315A AM2315
    Weight 50g 40g
    Dimension Ф16, length 150mm Ф16, length 97.4mm
    Communication mode I2C
    Supply voltage DC 3.3-5.5V DC 3.3-5.5V
    Measuring range of relative humidity 0~99.9%RH
    Measuring range of temperature -40~+80℃
    Accuracy of humidity ±2%RH
    Accuracy of temperature ±0.3℃
    Resolution 0.1℃/0.1%RH
    Long-term stability <0.5%RH/year, <0.1℃/year
    Power consumption <300μA
    Sampling period 2s
    Response time <5s
    Housing material Aluminum alloy ABS
    Working environment Temperature: -40~80℃, humidity: 0~99.9% no condensation
    Storage environment Temperature: 0~60℃, humidity: <95%RH
    Wiring 1 red: VDD, 2 yellow: SDA (serial data), 3 black: GND, 4 white: SCL (serial clock)

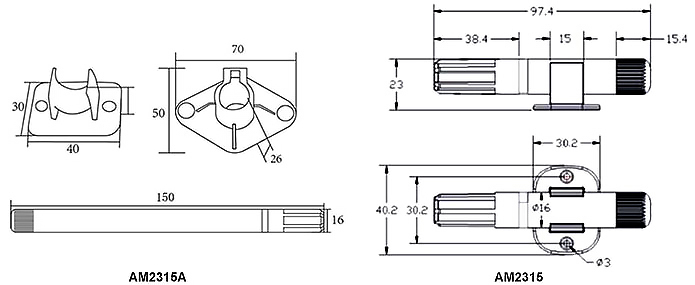

    Dimensional drawing:
    Temperature and humidity sensor AM2315A dimensional drawing
    Pin assignment:
    Temperature and humidity sensor AM2315A pin assignment
    Tips: Temperature and humidity sensor for duct mounted

    Duct temperature and humidity sensor adopts the temperature and humidity sensing module to detect the temperature and humidity, and carries out signal processing through high performance SCM. Meanwhile, it outputs various analog signals or standard signals. The sensor is widely used in building automation, climate and HVAC signal acquisition, museum and hotel climate station, greenhouse and medicine industry.
    The duct temperature and humidity sensor adopts convenient duct mounted method and outputs standard analog signal 4-20mA, 0-5V, 0-10V. It can even output the RS485 digital signal, which can be directly applied to various control systems. The machine has a better performance and a better long-term stability. Such a temperature and humidity sensor is generally suitable for a temperature range of -40-120℃ and a humidity range of 0~100%RH. The warranty period is generally one year. After the warranty period, the measurement accuracy will have temperature shift. To ensure the measurement accuracy, it is suggested that the customer calibrates the product accuracy after the product is used for 1~2 years.
