Features
- Use advanced precious metal cluster brush multi-point contact, ensure reliable contact under extremely low friction.
- Support 2A signal and 10A current, can parallel connect or customize larger current.
- Standard models are available from stock, and specifications can be customized as required.
- Can transmit video, data, analog and other signals in mix, support signal and power hybrid transmission.
- Integrated structure design, easy to install.
- Small torque, stable operation and long service life.
- Applications: automation equipment, medical equipment, engineering testing equipment, robots, continuous conveying equipment, sensors, textile equipment, chemical production equipment and any other application that requires conduct electricity or transmit various control signals in 360° rotation.
Specification
Model |
ATO-THSR-H2586 |
ATO-THSR-H3899 |
ATO-THSR-H4086 |
ATO-THSR-H50119 |
ATO-THSR-H60130 |
ATO-THSR-H60119 |
ATO-THSR-H80158 |
Hole Diameter |
25.4mm |
38.1mm |
40mm |
50mm |
60mm |
60mm |
80mm |
Outer Diameter |
86mm |
99mm |
86mm |
119mm |
130mm |
119mm |
158mm |
Max Rotating Speed |
Standard Grade |
400rpm |
400rpm |
400rpm |
400rpm |
400rpm |
400rpm |
250rpm |
Industrial Grade |
800rpm |
800rpm |
800rpm |
800rpm |
800rpm |
800rpm |
800rpm |
High Quality Grade |
1200rpm |
1200rpm |
1200rpm |
1200rpm |
1200rpm |
1200rpm |
1200rpm |
Working Life
|
Standard Grade |
20 millisons revolutions
|
Industrial Grade |
60 millisons revolutions |
High Quality Grade |
150 millisons revolutions |
Contact Material |
Standard Grade |
precious metal |
Industrial Grade |
precious metal |
High Quality Grade |
gold alloy |
Rated Voltage |
Power |
0~690VAC/VDC |
Signal |
0~440VAC/VDC |
Insulation Resistance |
Power |
≥1000mΩ/500VDC |
Signal |
≥1000mΩ/500VDC |
Lead Wire Spec. |
Power |
AWG17# Silver-plated teflon |
Signal |
AWG22# Silver-plated teflon |
Lead Wire Length |
standard 300mm (can be customized) |
Dielectric Strength |
800VAC@50Hz,60s |
Electrical Noise |
<0.01Ω |
Working Temp. |
-30℃~80℃ |
Work Humidity |
0~85% RH |
Housing Material |
AL alloy |
Torque |
0.1N.m (+0.03N.m/6 circuits) |
Certification |
CE, RoHS |
IP Grade |
IP51 |
Note: Please contact us if you need the flange

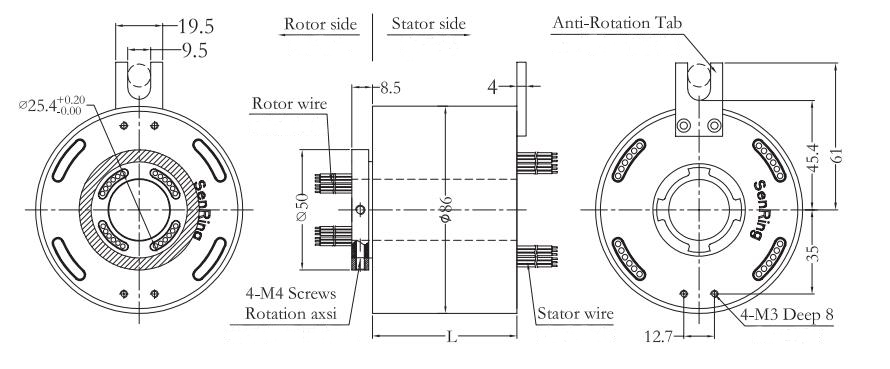

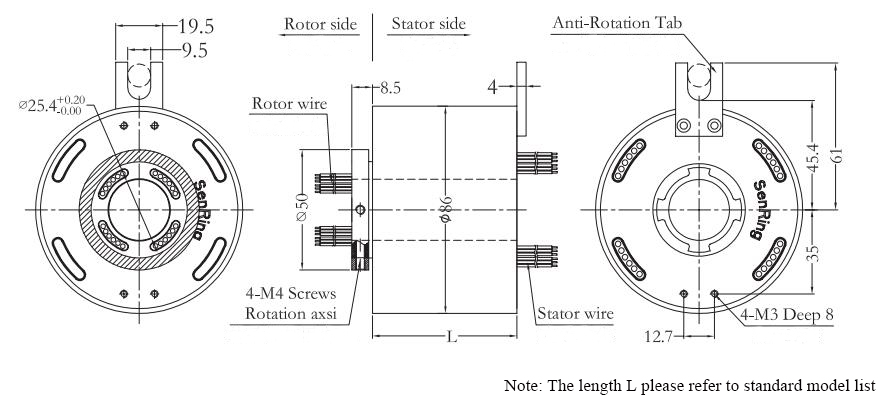

25.4mm Hole Diameter/86mm Outer Diameter Through Bore Slip Ring Dimension Drawing

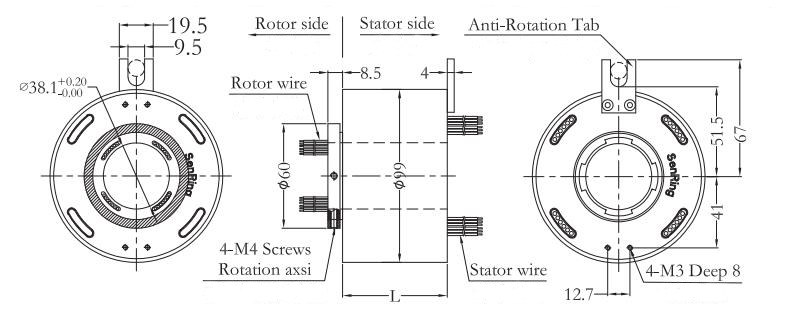

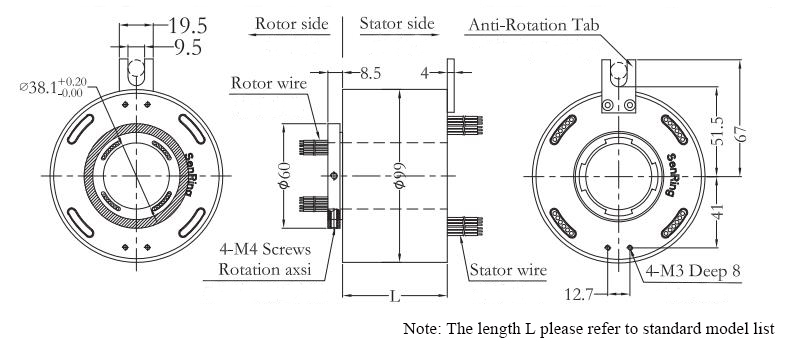

38.1mm Hole Diameter/99mm Outer Diameter Through Bore Slip Ring Dimension Drawing

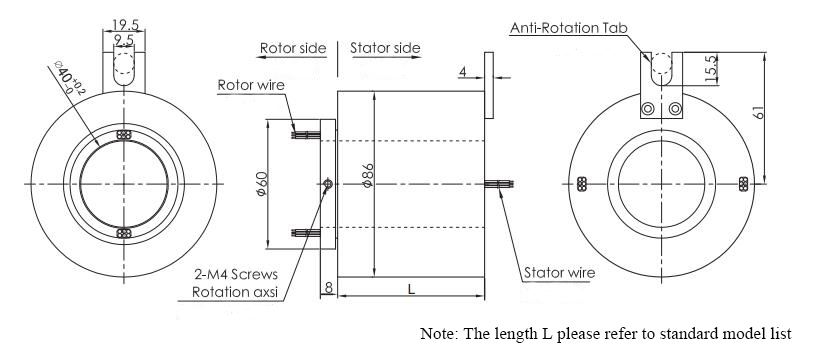

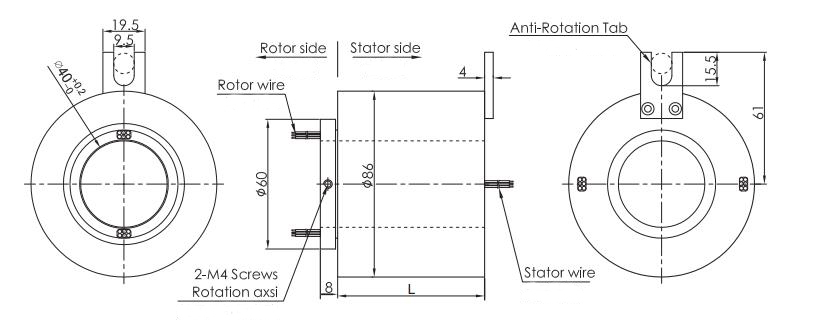

40mm Hole Diameter/86mm Outer Diameter Through Bore Slip Ring Dimension Drawing

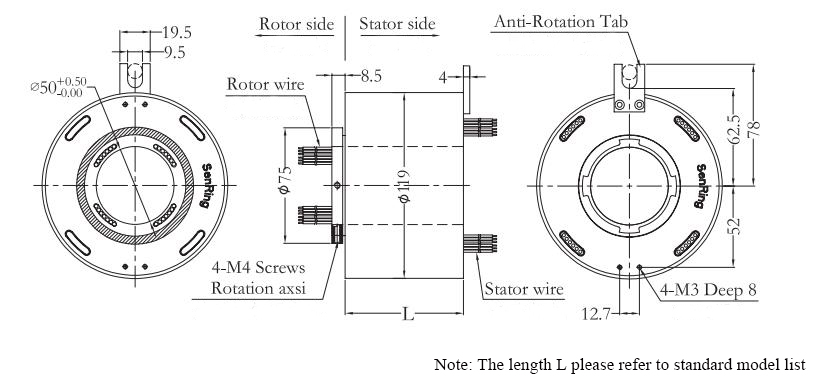

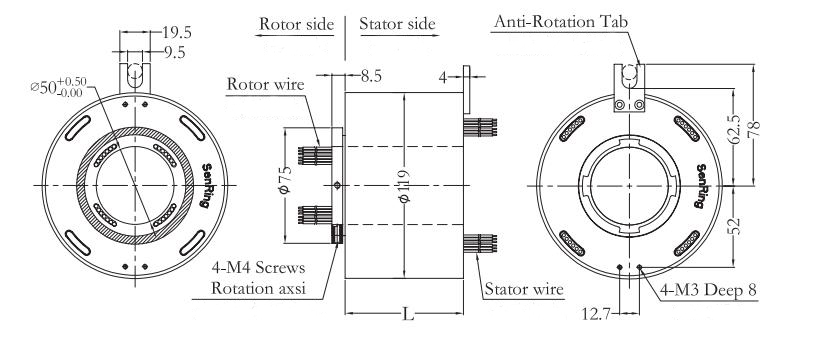

50mm Hole Diameter/119mm Outer Diameter Through Bore Slip Ring Dimension Drawing

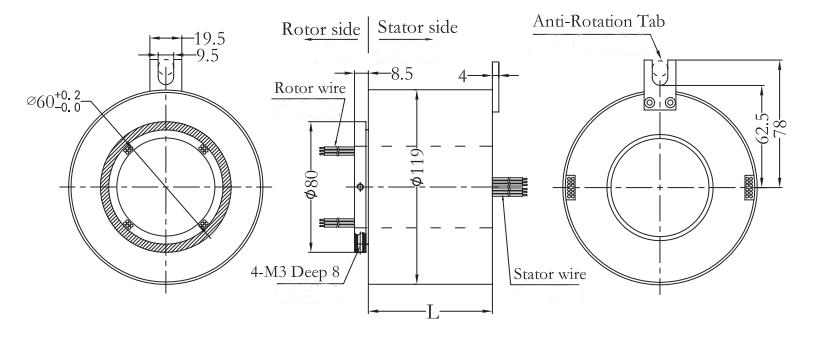

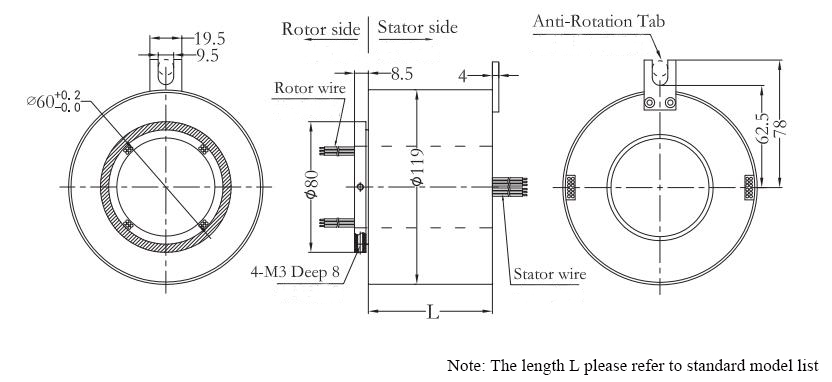

60mm Hole Diameter/119mm Outer Diameter Through Bore Slip Ring Dimension Drawing

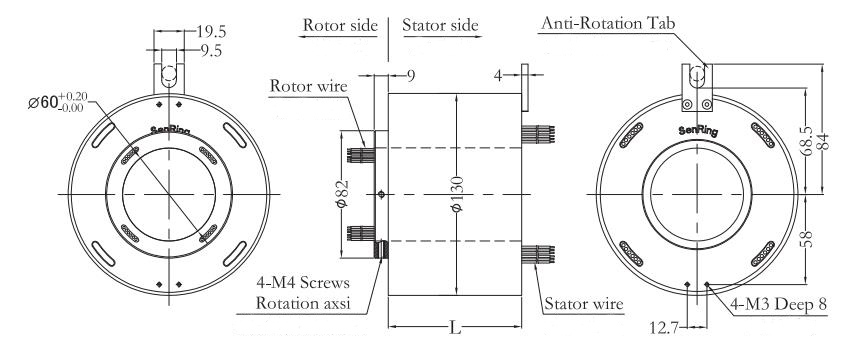

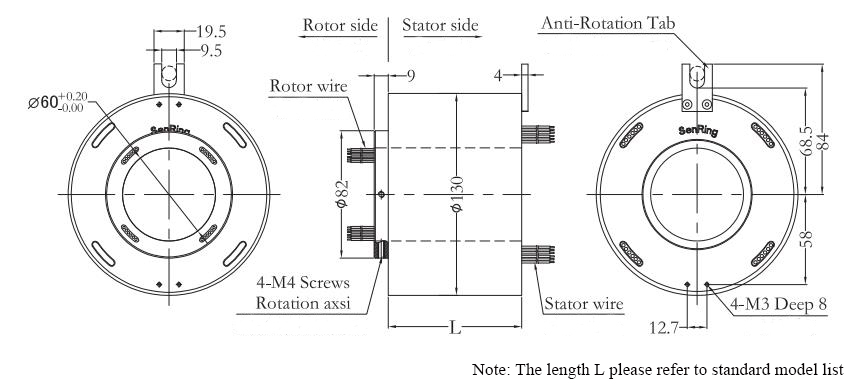

60mm Hole Diameter/130mm Outer Diameter Through Bore Slip Ring Dimension Drawing

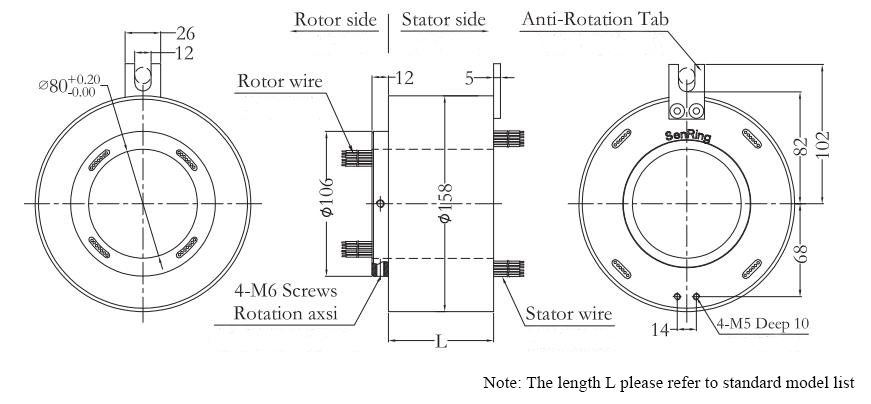

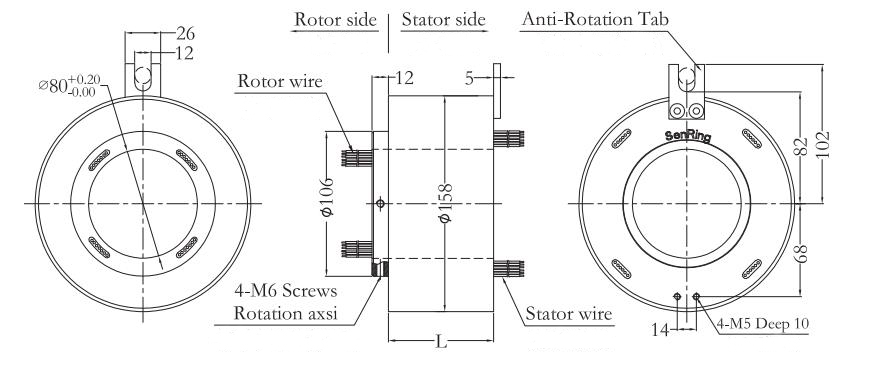

80mm Hole Diameter/158mm Outer Diameter Through Bore Slip Ring Dimension Drawing

Color Code of Lead Wire
ring # |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
color |
BLK |
BLK |
RED |
RED |
YEL |
GRN |
BLU |
PUR |
GRY |
WHT |
PINK |
LGT BLU |
ring # |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
color |
WHT/BLK |
WHT/BRN |
WHT/RED |
WHT/ORG |
WHT/YEL |
WHT/GRN |
WHT/BLU |
WHT/PUR |
WHT/GRY |
BLK/RED |
BLK/BRN |
Transparent |
Through Bore Slip Ring with Anti-Rotation Tab Installation Diagram

Through Bore Slip Ring without Anti-Rotation Tab Installation Diagram

Tips: The slip ring structure and working principle.
According to the medium transmitted by slip rings, slip rings can be divided into power slip ring, hydraulic slip ring, optical slip ring, or can be collectively referred to as rotary connector or slip ring connector. The slip ring is mainly composed of two parts, rotating and stationary, and is usually installed at rotation center of the device. Rotating part connects rotating structure of the device and rotates with it, called the rotor. Static part connects fixed structure of the device, called the stator.
Design of the stator and rotor is a precise superposition of single-passage. Number of superimposed passages is set according to usage requirements. During assembly, make passages of stator in one-to-one correspondence with passages of rotor to form passages between rotor and stator. The electrical performance between each passage must be independent of each other and there should be no interference.
When a passage is formed between stator and rotor, there must be contact between the two. Their contacts are the functional part of entire slip ring and are the carrier of various performances. Therefore, selection for the material of contact portion, rational design, precise production of components, and the like constitute a stable and reliable rotary communication system. Load slip rings on rotating device, through the leads at both ends of the slip ring, then the required signals can be transmitted in a rotating state.
