    Micro Reaction Torque Sensor for Static Torque, 0.5-150 Nm
    Picture of Micro Reaction Torque Sensor for Static Torque, 0.5-150 Nm
    Picture of Micro Reaction Torque Sensor for Static Torque, 0.5-150 Nm
    Picture of Micro Reaction Torque Sensor for Static Torque, 0.5-150 Nm

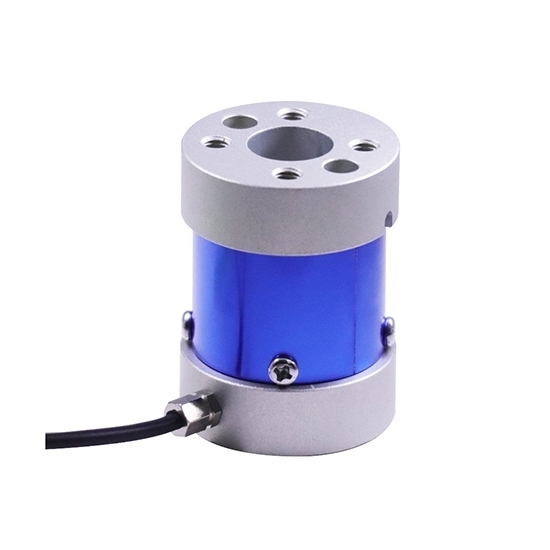

    Micro Reaction Torque Sensor for Static Torque, 0.5-150 Nm

    4.8 out of 5 based on 9 reviews | Write a review
    $175.93
    Micro torque sensor is a reaction torque sensor for static torque measurement. Torque sensor is made of aluminium alloy, 150%FS safety overload, -20°C~+80°C operating temperature, low price. Reaction torque transducers have a capacity range from 0.5 Nm ~ 150 Nm and can measure both forward and reverse torque.
    *
    *
    SKU: ATO-TQS-S04
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Torque sensors have capacity range from 0.5 Nm, 1 Nm, 2 Nm, 10 Nm, 20 Nm, 30 Nm, 100 Nm to 150 Nm. Torque sensor capacity can be customized according to customer requirements. After purchasing one ATO torque sensor, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0~5V, 0~10V, 0~±10V, or 4-20mA.

    Specification

    Model ATO-DYJN-104
    Shipping Weight 1kg
    Capacity Range * 0-0.5 Nm ~ 0-150 Nm
    Output Signal * DC 0-20mV, or equip load cell transmitter ATO-LCTR-OA for output signal DC 0-±5V/0-±10V/4-20mA/0-20mA
    Sensitivity 2.0mV/V
    Zero Balance ±2%FS
    Non-linearity 0.05%FS
    Hysteresis 0.05%FS
    Repeatability 0.05%FS
    Creep 0.05%FS/30min
    Temperature Drift on Zero ＜0.05%F.S/10℃
    Temperature Effect on Output ＜0.05%F.S/10℃
    Operating Temperature -20℃~+80℃
    Humidity 0~90%RH
    Impedance 350Ω
    Insulation Resistance ≥5000MΩ/100VDC
    Stability 0.3%FS/year
    Safety Overload 150%F.S
    Ultimate Overload 200%F.S
    Excitation Voltage DC 5-15V
    Material Aluminium alloy
    Protection Class IP65
    Cable Length 2m (Φ3mm)
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White


    Torque Sensor Dimension (unit: mm)

    Micro reaction torque sensor 0.5Nm to 150Nm dimension

    Feature

    • This micro static torque sensor has high testing accuracy, good long-term stability and large range.
    • Torque sensor made of aluminum alloy, light weight and the use of silicone sealing, long-term corrosion resistance.
    • Sensor all aluminum alloy one-piece structure, solid structure, easy to install, reasonable force.

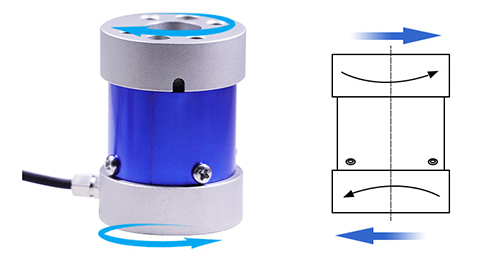

    Micro Reaction Torque Sensor Force Diagram

    Micro reaction torque sensor 150 nm force diagram

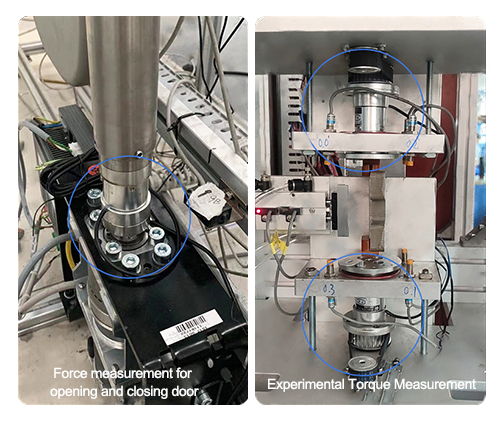

    Application

     Micro reaction torque sensor 150 nm application

    Tips: Torque sensor has abnormal torque or high torque value on torque controller

    When torque sensor is connected with a digital controller (meter), the controller display abnormal torque or high torque value.

    Such a problem is common because of the non-correspondence between the torque meter range parameter and torque sensor range. Firstly check if the torque sensor is OK, disconnect the sensor away from the meter, and check the original signal of the sensor with the oscilloscope or multimeter. Check if the sensor zero point is 10 kHz, and check if the frequency value is normal after loading. If it is normal, the problem lies in the torque meter parameter.

    Check if the meter parameter range adjustment is consistent with the sensor range. For instance, when the reaction torque sensor is in full range 10Nm, the meter parameter range value is 10.

    If the meter display torque is fixed and the L red light on the panel is always ON, the problem lies in the meter alarm parameter settings. The upper limit alarm and lower limit alarm. Check if the meter parameter AL1F and AL2F parameters are 0. 0 is the upper limit alarm, it means to alarm when it is higher than the alarm setting value. 1 is the lower limit alarm, it means to alarm when it is lower than the alarm setting value. If set to 1, as long as the torque setting value is not reached, the meter has always been in the alarm status, and display has no reaction.

    How to calibrate rotary torque sensor?

    Torque sensors have dynamic and static two types. The torque sensor converts the physical change of torque into an accurate electrical signal, such as 4-20mA, 1-5V, 10kHz.

    In this video, ATO will show you top ten most used sensors (sensing technologies).

    Torque sensor analog output wiring

    ATO torque sensor force measurement range is from 0.1Nm~5000N.m, output 0~5V/0~10V/4~20mA/Modbus, etc.

    Torque Sensor Modbus Communication via RS485 Interface

    This video show you how to wire and set a torque sensor in Modbus mode via S484 interface as a walkthrough of one of the applications of ATO torque sensors.

    Digital Torque Sensor Wiring & Setting

    This torque sensor feature a wide capacity range from 0.1/5/300/1000 Nm to 10000 Nm, with optional RS485 as well as other types output signals. Equipped with a 7 pin waterproof circular locking connector and 3m cable, the torque sensor can measure both forward and reverse torque.

    Existing reviews of Micro Reaction Torque Sensor for Static Torque, 0.5-150 Nm
    Moment of inertia
    If possible, can I get the moment of inertia value of the torque sensor?
    From: Agger | Date: 01/04/2025
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Sorry, this torque sensor is for measuring static torque and is not recommended for dynamic rotation. If the rotation angle is small, the moment of inertia of this static torque sensor itself is 0.00395kg.cm².
    The read speed
    What is the read speed from the Micro Reaction Torque Sensor for Static Torque, 0.5-150 Nm? Thank you for your help.
    From: Windy | Date: 26/08/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The output signal response rate of this static torque sensor is about 5-10k. This acquisition speed also depends on the acquisition speed of the instrument or transmitter you use later.
    Doubt
    Does the toque sensor measure torque in both directions?

    Thanks in advance
    From: Adrian | Date: 29/03/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, it can measure torque in both directions.
    What is the maximum axial load?
    What is the maximum axial load your sensor can tolerate?
    I'm asking about your model ATO-TQS-S04
    With 3Nm FS
    I need a new one
    From: logan | Date: 08/01/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The maximum axial load the sensor can bear is 50kg.
    How to connect a shaft to the torque sensor?
    I had a question regarding how a shaft could be connected to the micro torque sensor. Is the sensor hole a through hole? If so can a shaft run through the sensor so that you input the shaft through one end of the shaft and it exits the other end of the sensor?
    From: Shane | Date: 13/11/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, the sensor is through-hole. A rotational force is applied in the opposite direction (or a relative force is generated) through the fixing holes on the end faces of both sides of the fixed sensor, and the sensor outputs an analog signal.
    Is there a manual of torque sensor you can share?
    I recently purchased the 0.5 Nm version of this torque sensor.  I'm get involved in calibration and testing. Is there a manual you can share? I know there are calibration set screws for zeroing and gain.
    From: Rebecca | Date: 27/06/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The static torque sensor you purchased only needs to be calibrated at the acquisition end (data collector or transmitter connected to the sensor).
    Calibration instructions are Not included with the sensor unless you purchased a data collector or transmitter.
    Do you provide calibration certifcate for this type of torque sensor?
    I am interested in buying a 10 N-m reaction torque sensor. What will be the accuracy? Do you provide a calibration certificate for this product?
    From: shangcheng | Date: 28/04/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The accuracy is about 0.03%, and a calibration certificate is provided after shipment.
    I would like more information on the signal outputs EXC /- and SIG /-.
    I need a better understanding of the signal outputs of the 0.5-150 Nm Micro Reaction Torque Sensor in our application. I would like more information on the signal outputs EXC /-  and SIG /-. Is the range 0 to 20mV for each, and what does each signal represent?  We are looking to design our own electrical interface circuit for processing the output. If you have an example electrical interface app note it would be very helpful.
    From: Marz | Date: 12/12/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Regarding the signal wiring, EXC+/- is the excitation voltage; SIG+/- is the output signal line, and the default output signal is 0-20mv. If you would like to measure forward and reverse, it is recommended to configure the sensor with a transmitter to output 0-±5V, or 4-12-20ma for measuring forward and reverse torque. See transmitter specifications: https://www.ato.com/load-cell-transmitter-output-0-5v-4-20ma
    Connection of 0.5-150Nm micro torque sensor
    Can your micro torque sensor be set up such that one end is connected to the motor while the other end is connected to nothing? What sort of reading will I get if this is the case?
    From: Deck | Date: 14/05/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Unfortunately, can't be connected like this, because if the other end is not connected, there will be no data to compare between the input and output, and the reading will be abnormal.
    Load more reviews...
    Write your review for Micro Reaction Torque Sensor for Static Torque, 0.5-150 Nm
    • Only registered users can write reviews
    • Bad
    • Excellent
