    Reaction Torque Sensor for Torque Wrench Calibration, 5-200 Nm

    Reaction Torque Sensor for Torque Wrench Calibration, 5-200 Nm

    5 out of 5 based on 2 reviews | Write a review
    $165.61

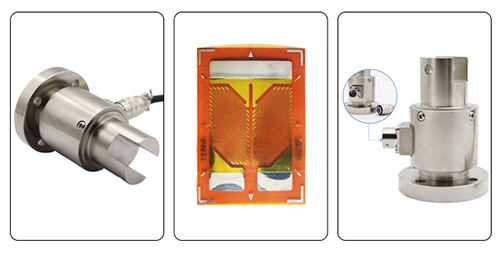

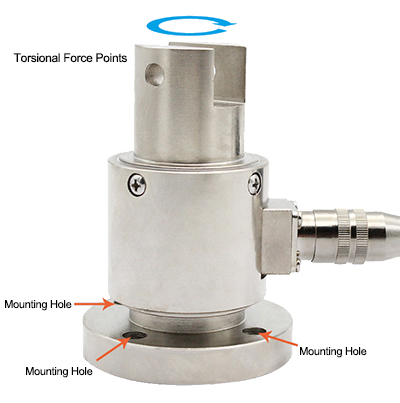

    Reaction torque sensor is a special static torque sensor for torque wrench calibration. Torque sensor has one end of flange and the other end of square groove. Reaction torque transducers have a capacity range from 5 Nm/10 Nm/20 Nm/50 Nm/100 Nm to 200 Nm, 120%FS safety overload, and can measure both forward and reverse torque.
    *
    *
    SKU: ATO-TQS-S02
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Torque sensors have capacity range from 5 Nm, 10 Nm, 20 Nm, 50 Nm, 100 Nm to 200 Nm. Torque sensor capacity can be customized according to customer requirements.
    After purchasing one ATO torque sensor, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0~5V, 0~10V, 0~±10V, or 4-20mA.

    Specification:

    Model ATO-TQS-DYJN-102
    Shipping weight 2kg
    Capacity range * 0-5 Nm ~ 0-200 Nm
    Sensitivity 1.0-2.0mV/V
    Zero balance ±2%FS
    Non-linearity 0.2%FS
    Hysteresis 0.05%FS
    Repeatability 0.05%FS
    Creep 0.05%FS/30min
    Temperature drift on zero ＜0.05%F.S/10℃
    Temperature effect on output ＜0.05%F.S/10℃
    Operating temperature -20℃~+80℃
    Humidity 0~90%RH
    Impedance 350Ω
    Insulation resistance ≥5000MΩ/100VDC
    Stability 0.3%FS/year
    Safety overload 120%F.S
    Ultimate overload 150%F.S
    Excitation voltage DC 5-15V
    Material Alloy steel
    Protection class IP65
    Electrical connection 5 pin circular connector (Packing included)
    Cable length 3m (Φ3mm) (Packing included)
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

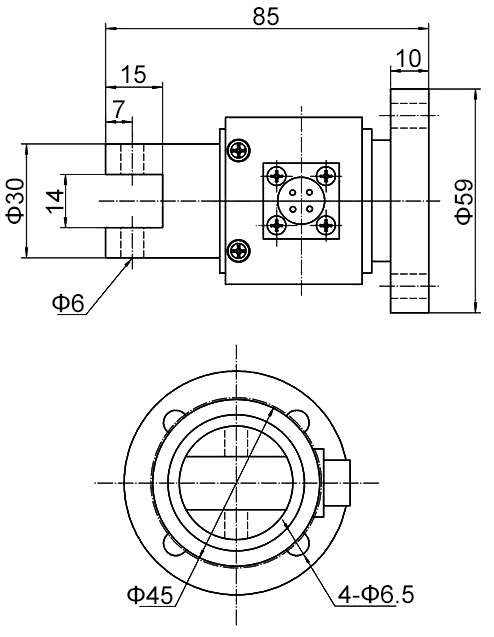

    Torque sensor dimension (unit: mm):

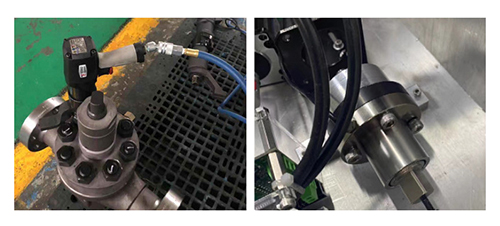

    Reaction torque sensor for torque wrench calibration 20-500 Nm
    Tips: Torque sensor fails to return to zero after unloading
    There are two conditions if the torque sensor fails to return to zero after installation or unloading the load. The first is the torque sensor connection. The second is overload.
    If the reaction torque sensor still displays the value of 0.1-1 Nm after loading and unloading, it is usually caused by the inconsistent stopping positions of the power terminal and load terminal in the measurement process. Remove the torque sensor and inspect the sensor signal zero point. If it is normal, it is indeed caused by the inconsistent stopping positions of the power terminal and load terminal.
    If the sensor zero point fails to go back to zero when the torque sensor is overloaded, the torque display is inaccurate in the measurement process, and the zero point still doesn't go back to zero after dismantling the sensor, such a condition can be basically confirmed to be caused by the overloaded sensor. The fundamental reason is that the selected range of the sensor is inaccurate or smaller. In normal conditions, in selecting the sensor range, it should be 1.5 times-2 times of the maximum torque value on site. For instance, if the on-site power terminal is the motor, the motor power is 6Kw and the revolving speed is 1500, then the torque should be 38.19N.m after the conversion, and the torque sensor range should be 1.5 times to 2 times of the maximum torque value, because the moment torque in starting the motor is very high, generally higher than the rated torque of the motor.

    Existing reviews of Reaction Torque Sensor for Torque Wrench Calibration, 5-200 Nm
    Looking forward to your reply to my question.
    With reference to the quote you sent me.
    What is the smallest resolution for the 20Nm rotary sensor?
    What is the smallest resolution for the 30Nm rotary sensor?
    Why did you recommend 30 Nm sensor over 20Nm if the max torque is below 10Nm? Please explain.
    Will the converter board I am buying have USB output? If so, will it work with the software I am buying?
    Looking forward to your reply,
    Craig Coad
    GiG, LLC
    From: Yurs | Date: 04/01/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. The capacity of the torque sensor is generally recommended to use 2 times of the range, because the torque force has impact, the measurement range of the sensor should have a margin will be better.
    2. Yes, we will provide software, including a USB-485 communication cable.
    Minimum resolution of torque sensor
    My name is Erlantz Otaola and write on behalf of added value solutions, a company devoted to develop mechantronic equipment for big science and space. Currently, we are looking for a torque meter for a bench we are developing. This torque meter should measure up to 300 Nm with a minimum resolution of 0.1Nm. Looking at your page, we have come across with the digital rotary torque sensor, which seems to fit our purpose. However, we would very much appreciate your assessment on this. Besides, we would like to know the price and lead time for the digital rotary torque sensor or any other you consider that fits better our application.
    From: Brucem | Date: 31/08/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, our ATO-TQS-D03 torque sensor be able to measure up to 300 Nm with a minimum resolution of 0.1Nm when the measuring range is 0.1Nm.
