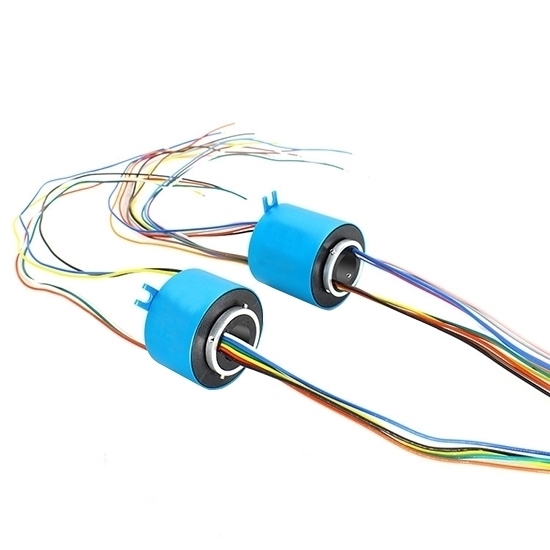

    High Speed Electrical Slip Ring, Through Hole, 1500rpm

    $152.92
    High speed slip ring is a high speed rotary conductive device designed for high-speed rotating equipment. It is more wear-resistant and has higher electrical conductivity than traditional slip rings. Max speed 1500rpm, hole size ranges from 0~20mm, outer diameter 56mm, optional 6~12 circuits 10A current.
    SKU: ATO-THSR-2056
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Features

    • Rotating speed is up to 1500 rpm. Customizable speed, hole diameter, circuits wires number, current and other specifications.
    • High performance permanent lubricated bearings, high wear resistance and lifetime maintenance free.
    • Key materials are made of world advanced technology, high-quality gold-plated rings, ensure reliable transmission of power and signals.
    • Low torque, low loss, high stability, long service life.

    Specification

    Model ATO-THSR-2056
    Inner Diameter 20mm
    Outer Diameter 56mm
    Rotating Speed 1500rpm
    Working Temp. -30℃~80℃
    Working Humidity 0~85% RH
    Contact Material refer to slip ring grade table
    Housing Material aluminum alloy
    Torque 0.05N.m (+0.02N.m/6 circuits)
    Rated Voltage 0~440VAC/VDC
    Insulation Resistance ≥1000mΩ/500VDC
    Lead Wire Spec. AWG17#UL Teflon
    Lead Wire Length standard 300mm (can be customized)
    Certification CE, RoHS
    Dielectric Strength 800VAC@50Hz,60s
    Electrical Noise <0.01Ω
    IP Grade IP51

    Product Grade Table

    Grade code Max rotating speed Working life Contact material
    C: standard 250rpm 20 millisons revolutions gold alloy
    D: industrical 600rpm 60 millions revolutions precious metal
    H: high quality 1000rpm 150 millisons revolutions precious metal

    Standard Model List

    Model Circuits (10A) Length L (mm)
    ATO-THSR-G2056-06 6 circuits 34
    ATO-THSR-G2056-12 12 circuits 52

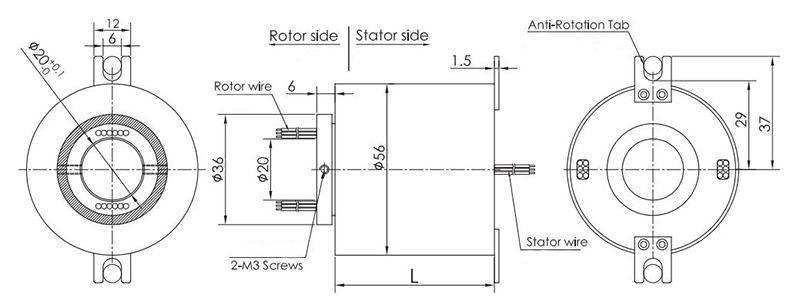

    High Speed Electrical Slip Ring Dimension Drawing

    High Speed Electrical Slip Ring Dimension Drawing

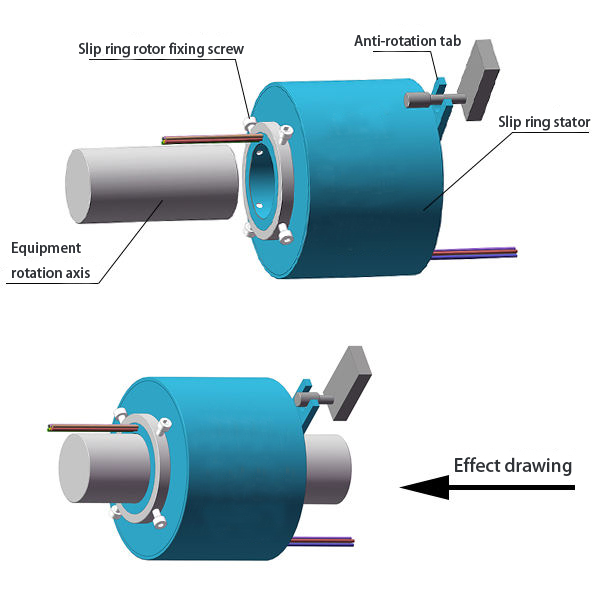

    High Speed Through Hole Slip Ring with Anti-Rotation Tab Installation Diagram

    High Speed Through Hole Slip Ring with Anti-Rotation Tab Installation Diagram

    High Speed Through Hole Slip Ring without Anti-Rotation Tab Installation Diagram

    High Speed Through Hole Slip Ring without Anti-Rotation Tab Installation Diagram

    Tips: What are the advantages of electrical slip rings?

    In the industrial age, any manufacturer hopes to improve product quality and reduce production costs through system equipment. Production equipment must require a various of parts guarantee during operation. Electrical slip ring transmission is one of them. So what are the advantages of slip rings?

    First, electrical slip ring is very resistant to interference, especially noise interference. When a machine is running, its signal transmission is likely to be disturbed by noise, which reduces speed or accuracy of signal transmission and affects normal use of the machine. However, if install electrical slip ring connectors to the machine, this problem does not occur because it is very resistant to noise. No matter how much noise the machine makes during operation, it will have no effect on signal transmission of slip rings.

    Second, electrical slip ring connector has a long service life. If a device internal functions are always faulty or damaged during production process, it will affect operation of the entire machine system, then affect production of the entire plant. With technology advancement, slip ring now has a very good guarantee of wear resistance and service life while enhancing transmission signal function. Therefore, adding an electrical slip ring connector to production system does allow for better protection of different motors during operation.
