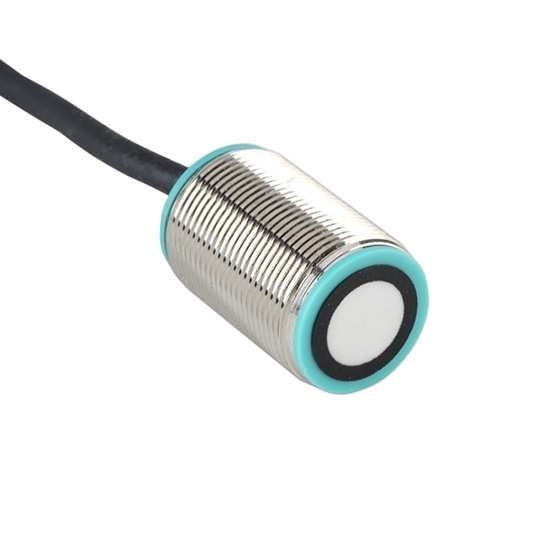

    Ultrasonic Distance Sensor, 100-700 mm

    5 out of 5 based on 5 reviews | Write a review
    High frequency ultrasonic transducer (sensor) for sale online, 100-700mm detection distance in ultrasonic power transducer. Small ultrasonic transducer consumption current less than 50mA, IP67 waterproof grade for protection, is designed to deliver good performance and efficiency at an economical price.
    SKU: ATO-UDS-700
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Ultrasonic transducer (sensor) with low cost, use nickel copper alloy as shell material, working temperature between -20 ℃ to 60 ℃. High frequency ultrasonic transducer with switching output or analog output.


    Model ATO-UDS-700
    Detection Distance 100mm-700mm
    Blind Area 100mm
    Standard Detector 100x100mm
    Supply Voltage 24V DC±10%
    Consumption Current Less than 50mA
    Response Time 48ms (min)
    Detection Accurancy ±0.25% FS
    Working Temperature -20 ℃—+60 ℃
    Storage Temperature -25 ℃—+70 ℃
    Vibration Frequency 10-55Hz
    Withstand Voltage 100VAC 50/60Hz
    Shell Material Nickel Copper Alloy (plastic part is PBT)
    Protection Level IEC IP67
    Line Length 2m
    Certification CE
    Warranty 12 months

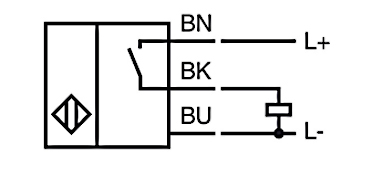

    Electrical Connection:

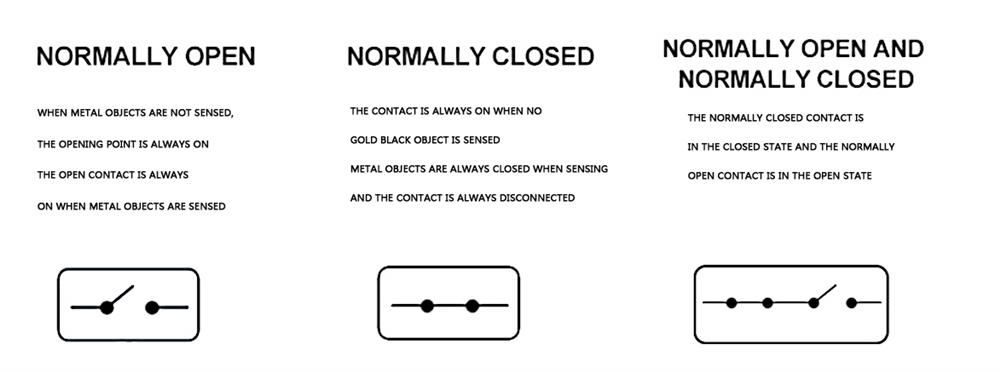

    100-700mm ultrasonic sensor electrical connectionHow to Distinguish:

    100-700mm ultrasonic sensor distinguishApplication:

    100-700mm ultrasonic sensor applicationTips: Application of Ultrasonic Sensor

    • The ultrasonic sensor can detect the container condition. An ultrasonic sensor mounted on top of a plastic melt tank or plastic pellet chamber can be used to analyze the container's status, such as full, empty or half-full, when it sends sound waves into the container.
    • It can be used to detect transparent objects, liquids, any surface rough, smooth, light dense materials and irregular objects. But not suitable for outdoor, hot environment or pressure tanks and foam objects.
    • Ultrasonic sensor can be used in food processing plants to realize the closed-loop control system of plastic packaging inspection. With the new technology can be in the wet ring such as bottle washing machine, noise environment, extreme temperature change environment for detection.
    • Ultrasonic transducer can be used to detect liquid level, detect transparent objects and materials, control tension and measurement distance, mainly for packaging, bottle making, material moving inspection coal equipment transport, plastic processing and automotive industry. Ultrasonic sensors can be used for process monitoring to improve product quality, detect defects, determine presence, and other aspects.
