Ultrasonic Distance Sensor, 150-2000 mm

Waterproof ultrasonic distance sensor with IP67 waterproof grade, robust rectangular metal housing with thread on the side. Ultrasonic measurement can reach 2000mm. Switch output bright and dark can be set on the small ultrasonic sensor.

Specification: (If you need dual output, please contact us.)

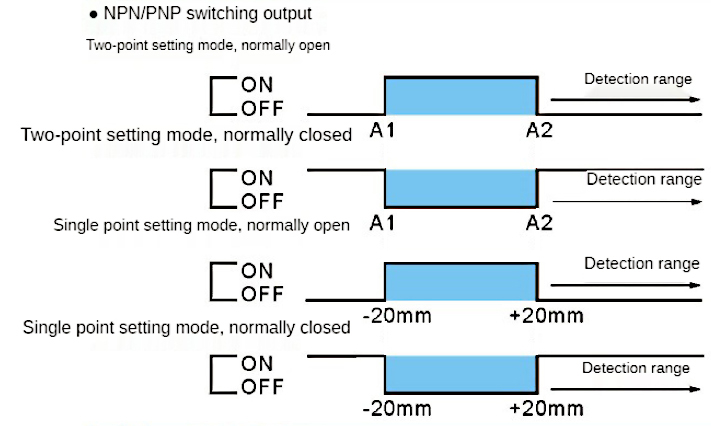

Action Mode Diagram:

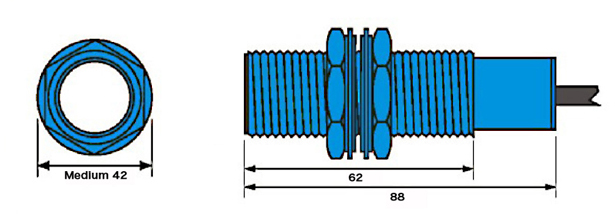

Dimension (mm):

Application:

Tips: The System Composition of Ultrasonic Sensor

The ultrasonic sensor is mainly composed of the following four parts:

• Transmitter. Through the vibrator (generally ceramic products, diameter of about 15 mm) vibration to produce ultrasonic waves and radiation to the air.
• Receiver. When the oscillator receives the ultrasonic wave, it produces the corresponding mechanical vibration according to the ultrasonic wave, and converts it into electrical energy as the output of the receiver.
• Control part. Through the integrated circuit control transmitter ultrasonic transmission, and judge whether the receiver received the signal (ultrasonic), and has received the size of the signal.
• Power supply. Ultrasonic sensors are usually powered by external DC power supply with voltage of DC12V ± 10% or 24V ± 10%, which is supplied to sensors by internal voltage regulator circuit.
