    USB to RS485 Converter, 2 Port

    5 out of 5 based on 1 reviews | Write a review
    2 port USB to RS485 converter with 300bps-115.2Kbps baud rate, 5000m (9600bps) transmission distance, rated power 9-30VDC/ 350mA, DB9 female to 10-pin terminal block connector. It is generally used in mechanical control systems, access control systems, industrial automation, industrial control, security monitoring, equipment debugging, upgrades, etc.
    SKU: ATO-UT-502
    This product has a minimum quantity of 2
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Cost-effective two port USB to RS485 adapter cable with asynchronous half-duplex working mode, -40℃ to 85℃ operating temperature.


    Model UT-502
    Standards RS-232, RS-485, RS-422 TIA/EIA
    Port Automatic traffic direction control, no need external flow control signal (RTS), real TXD/RXD/GND communication
    Baud rate 300bps-115.2Kbps
    Connector Allows connecting 128 sets RS-485 or RS-422 device
    Transmission distance 5000m (9600bps)
    Power 9-30VDC/350mA
    Working mode asynchronous half-duplex (RS-485)
    Isolation 2.5KVrms/500VDC enhanced isolation, special DC/DC module
    Protection RS-485/ 422 provides each wire with 600W lighting,surge & ±15KV ESD protection
    Connector DB9 female to 10-pin terminal block
    Transmission media Twisted-pair or shielded cable
    Dimension (L*W*H) 117mm*80mm*25mm
    Operating temperature -40℃ to 85℃
    Relative humidity 5% to 95%

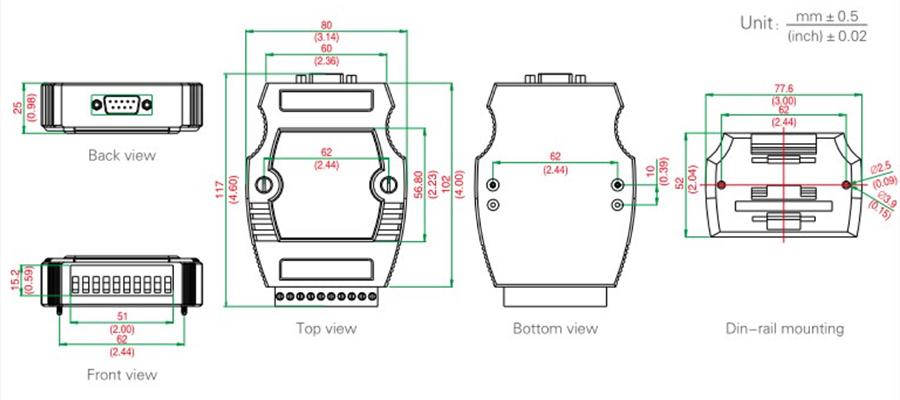

    Dimension (mm)

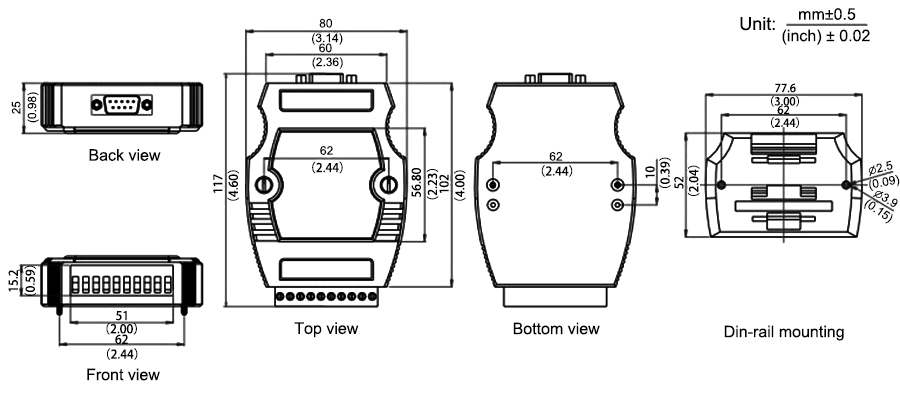

    Dimension of 2 port  USB to RS485 converter

    Tips: The difference between RS232 and RS485 Converter.

    The difference of the communication line of the interface:
    RS232 generally uses three-core twisted pair, three-core shielded wire, etc.
    RS485 uses two-core twisted pair, two-core shielded wire, etc. Ordinary twisted-pair cables can be used in low-speed, short-distance, and interference-free situations. On the contrary, in high-speed and long-term transmission, RS485 dedicated cables with impedance matching (usually 120Ω) must be used. Should use armored twisted-pair shielded cable.
    Generally speaking, RS232 has not many advantages, and the transmission distance is only 15 meters, but it is very useful. For example, it may be used in monitoring, upgrades and debugging of other equipment, and the function is more hand-over with USB, so there is now a USB conversion port. , Not only to obtain a higher transmission speed, but also to solve the shortcomings that the USB interface cannot be transmitted over long distances.
