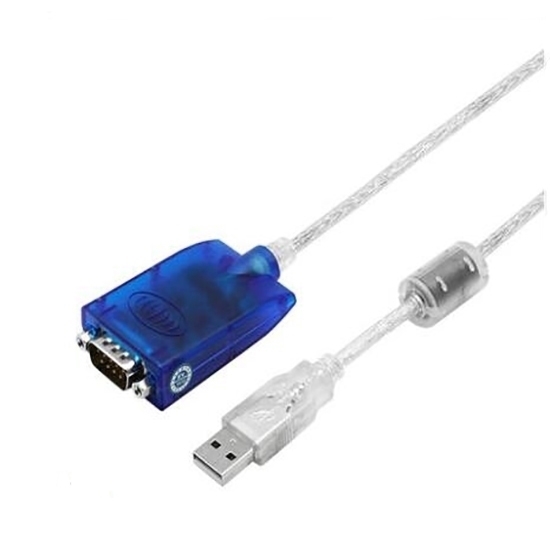

    USB to RS232 Converter, 0.5m/ 1.5m/ 3m

    $58.57
    Cheap price USB to RS232 converter online for sale, with 0.5m/ 1.5m/ 3m length for selection, asynchronous/ point to point two working modes, -25℃ to 70℃ operating temperature. It is generally used in mechanical control systems, access control systems, industrial automation, industrial control, security monitoring, equipment debugging, upgrades, etc.
    SKU: ATO-UT-880
    *
    *
    This product has a minimum quantity of 2
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Factory price USB to RS232 converter cable with VCC, DATA-, DATA+, GND, FG USB signal, DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI RS-232 signa, transmission distance 5m for RS-232 port, no more than 5m for USB port.

    Specification

    Model UT-880
    USB signal VCC, DATA-, DATA+, GND, FG
    RS-232 signal DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI
    Length 0.5m/ 1.5m/ 3m
    Working mode Asynchronous, point to point
    Direction control Adopts traffic direction auto-control technology
    Baud rate 300-460,800bps auto-detect serial signal
    Load capacity Support point-to-point communication
    Transmission distance 5m for RS-232 port, no more than 5m for USB port
    Port protection ±15KV ESD protection
    Port USB-A male, DB9 male
    Signal indication LEDs for indicating PWR TXD, and RXD activity
    Transmission media Twisted-pair or shielded cable
    Operating temperature -25℃ to 70℃
    Relative humidity 5% to 95%
    Supports Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux
    Outer size (L*W*H) 1500mm*36mm*16mm
    Weight 1kg
    Certificate RoHS, CE, FC
    Warranty 12 months

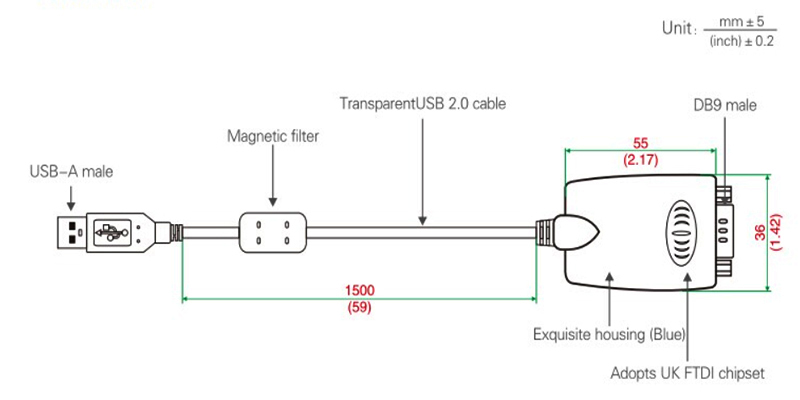

    Dimension (mm)

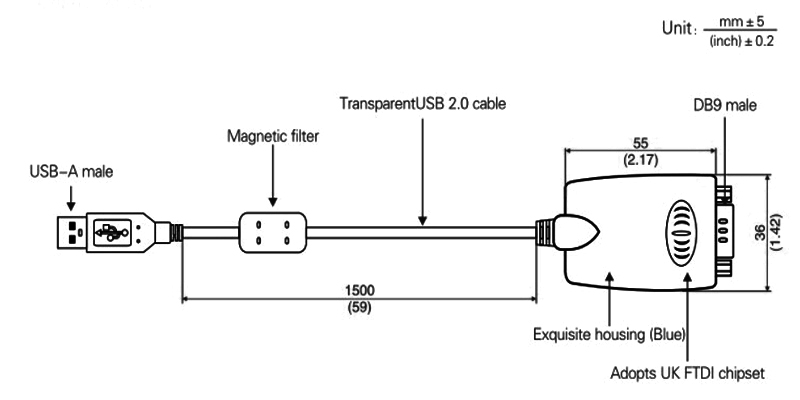

    Dimension of USB to RS232 converter

    Tips: What is USB Converter?

    USB to Rs232 serial port is to realize the conversion between the computer's USB interface to the universal serial port. It provides a fast channel for computers without a serial port, and the use of a USB-to-serial device is equivalent to turning a traditional serial device into a plug-and-play USB device. As the most widely used USB interface, one of the indispensable communication interfaces for every computer, its biggest feature is to support hot plugging, plug and play. The transmission speed is fast. In order to simplify the complicated problem, you can use the USB to serial port module. This module can be regarded as a USB2.0 protocol converter, which converts the computer's USB2.0 interface into a transparent parallel bus, just like a microcontroller bus.
