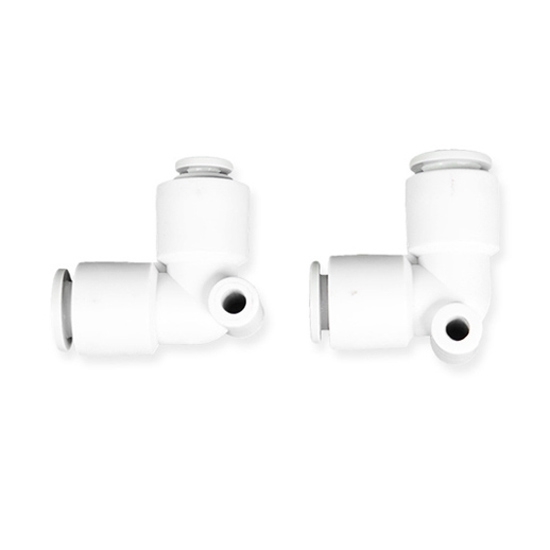

Water Line Quick Connector, Intubation Type

5 out of 5 based on 3 reviews | Write a review

$3.36

Competitive price water line quick connector with 04~16 mm input cannula diameters. It is also a garden hose connect, and can quickly connect to hoses without tools. Perfect water quick connector is used for pressure washers, RVs, campers, faucets, lawn sprinklers, spigots, and faucets.

Input/Output Cannula Diameter *

SKU: ATO-QC-I06

This product has a minimum quantity of 50

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Quick Connector Dimensions

Well sealed quick connector can connect to hoses in seconds. It is an intubation type, supply for water and air. The wear-resistant plastic shell makes quick connect fitting more smooth. 04~16 mm input cannula diameters for selection. Faster connectors are widely used for all kinds of watering equipment, such as sprinklers, sprayers, sprinklers, etc.

Specifications

Model	ATO-KQ2L
Fluid	Air/Water
Material	Brass
Maximum operating pressure	1.0MPa
Operating vacuum pressure	-100kPa
Proof pressure	3.0MPa
Ambient and fluid temperature	Air:-5~60°C, Water:0~40°C
Tubing material	Nylon, Soft nylon, Polyurethane
Tubing O.D.	Φ4, Φ6, Φ8, Φ10, Φ12, Φ16

Quick Connector Details

Applicable tubing O.D (mm)	Model	Weight (g)
Φ4	ATO-KQ2L04-00	6
Φ6	ATO-KQ2L06-00	6
Φ8	ATO-KQ2L08-00	10
Φ10	ATO-KQ2L10-00	17
Φ12	ATO-KQ2L12-00	21
Φ16	ATO-KQ2L16-00	29

Tips: How to use the air hose quick contact?

After cutting off the air hose and removing the burr, insert one end of the air hose into the connector socket(which must be inserted to the bottom)to achieve a solid connection and seal.
When disassembling the tubing, use your thumb to press the connector ferrule in and pull out the tubing.
After repeatedly pulling out the tubing, the end of the tubing should be cut off. The worn end should be cut off. Repair and continue to use.
After installation of the end pipe fittings such as right angle, tee, four-way, etc., only rotate the fitting body to adjust the receiver direction of the fitting.

Quick Connector Dimensions

Existing reviews of Water Line Quick Connector, Intubation Type

Convenient installation

The water pipe was broke in my basement recently, prompting concerns about potential leaks. To address the issue, I decided to try out different brands of water line quick connectors for comparison. Turns out, there is no need to worry. It not only effectively withstood water pressure but also seamlessly matched the layout of my basement. There is good value for this little fitting kit. What can I say? Worked as excepted.

From: Demi | Date: 23/04/2024

Was this review helpful? Yes No (0/0)

Makes work easier

I am using my pressure washer and hose. These quick connectors are necessary and will make everything you do with your pressure washer much easier.

From: Dian | Date: 30/05/2022

Was this review helpful? Yes No (0/0)

Buying a set for every hose

I didn't know about these quick connectors until I saw them at my neighbor's house. It's really useful. I found these necessary for any use of garden hoses and nozzles. The more hoses you use, the more you need this product.

From: Freudenberg | Date: 29/05/2022

Was this review helpful? Yes No (0/0)
