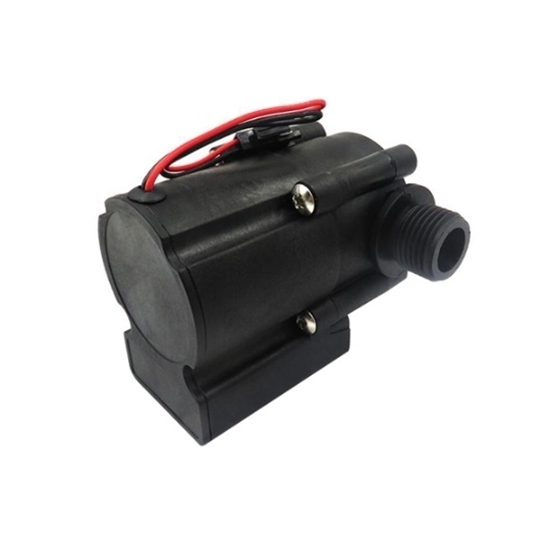

Small Water Turbine Generator for Home, 6V DC, 4L/min

The small water turbine generator has a 1/2" (G1/2) interface, starts at 2 L/min flow (working pressure <2 kg), delivers max 1.4 A, 6 V DC, 210 mW at 4 L/min, and reaches 8 V DC max. With 700 mAh polymer lithium battery, IP4 waterproofing, and 20 L/min max flow tolerance (2 kg pressure), it suits home energy-saving, sensor faucets, and bathroom fixtures.

Specification

Feature

1. High Power Output: The miniature hydroelectric generator enables efficient energy generation despite its small size.
2. Compact & Durable: This small water turbine electric generator has a small form factor and robust build for long-term reliability.
3. Wide Application: Fits household use, bathroom systems, and small-scale energy needs.
4. Wear-Resistant: Premium materials let it withstand continuous operation.
5. Eco-Friendly: Made with sustainable materials.
6. High Sensitivity: Delivers reliable performance even with minimal water flow.

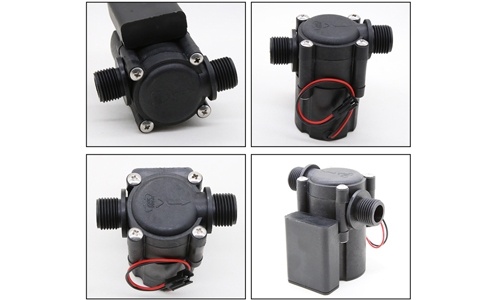

Details

1. Durable Nylon Glass Fiber: Constructed with strong, corrosion-resistant nylon fiberglass for long-term use.
2. Great Sealing: Excellent sealing prevents water leakage, ensuring stable operation.
3. Easy Installation: Simple to set up, ideal for household bathrooms or compact spaces.
4. Compact Design: Space-saving size for easy integration in tight areas.
5. Efficient Power: The mini water turbine generator delivers 6V DC output with 4L/min water flow, saving energy.

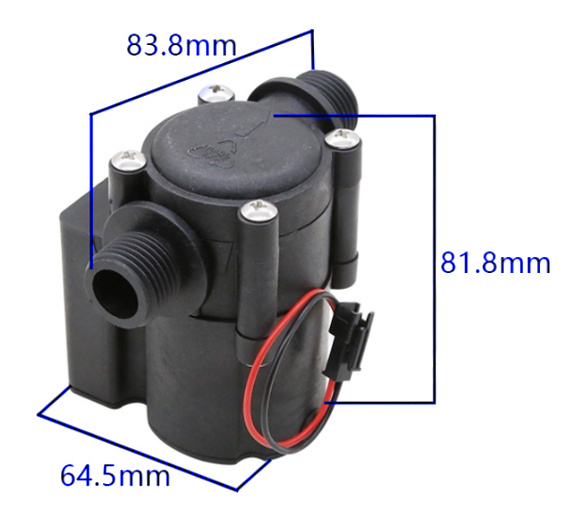

Dimension Drawing

Application

Tips: What occurs if the water pressure or flow rate is too low?

The small water turbine generator cannot maintain stable voltage if the flow is too low, which may lead to efficiency loss or operational failure. If the flow exceeds 20 L/min, the system may become overloaded. Maintaining the flow within this range ensures optimal performance.
