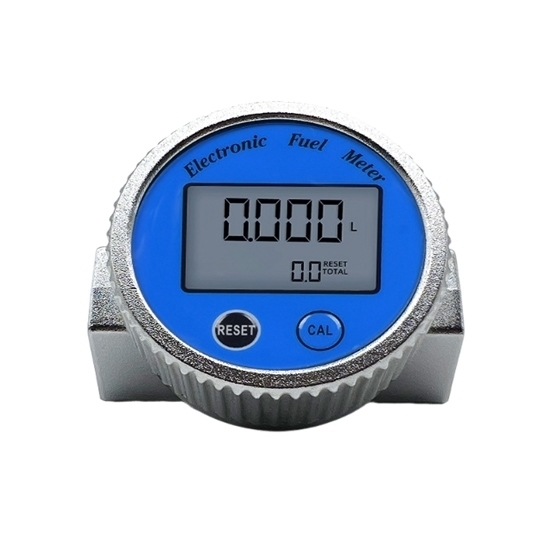

    Waterproof Turbine Flow Meter for Diesel/Fuel/Gas/Water

    $82.89
    Digital turbine flow meter available in two nominal diameters, 3/4 inch and 1 inch, equipped with a digital display, this stainless steel turbine flow meter offers real-time, easy-to-read measurements. The waterproof digital turbine flow meter is the ideal solution for accurate and reliable flow measurement in various industrial applications.
    *
    SKU: ATO-FLOW-KW24
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The waterproof digital turbine flow meter has flow rates of 4-50L/min (3/4 inch), 9-100L/min (1 inch), and it is a versatile tool that can meet a wide range of flow measurement needs.

    Specification

    Model ATO-FLOW-KW24
    Nominal Diameter 3/4 inch 1 inch
    Connection Female threaded connection
    Measuring Accuracy ±1%
    Measuring Unit QTS, PTS, L, GAL, m3
    Measuring Medium Diesel, gasoline, kerosene, methanol, water, etc.
    Flow size 4-50L/min 9-100L/min
    Component Material Stainless steel, aluminum alloy
    Maximum Working Pressure 0.6Mpa
    Single Flow Rate Range 99999
    Cumulative Counting Range 29999999
    Weight 0.325kg 0.321kg

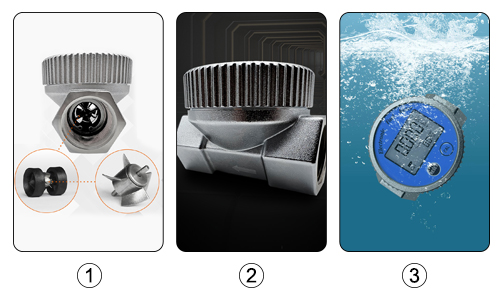

    Feature

    Waterproof turbine flow meter feature

    1. IP67 Level Waterproof: Able to work normally underwater, the whole machine is fully sealed, excellent waterproof performance.
    2. Aluminum Alloy Material: Compact structure, high quality aluminum alloy process manufacturing, strong and durable.
    3. High-performance Turbine: Accurate measurement of large flow rate, not easy to be clogged.

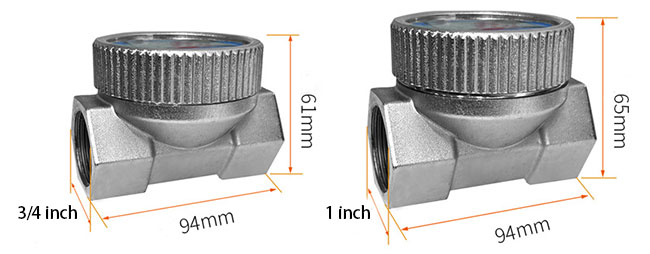

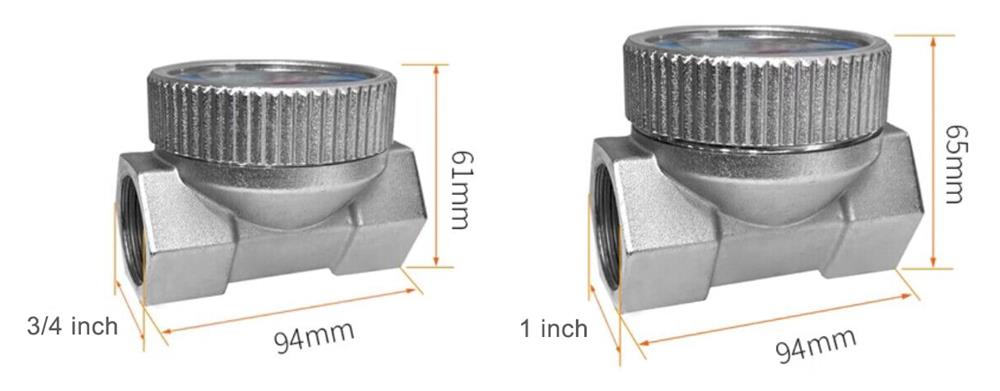

    Dimension (unit: mm)

    Waterproof turbine flow meter size

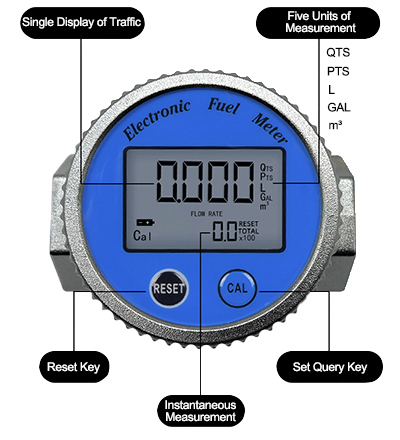

    Detail

    Waterproof turbine flow meter detail

    Applications

    Waterproof turbine flow meter applications

    Tips: Is the waterproof digital turbine flow meter suitable for outdoor applications?

    Yes, the waterproof digital turbine flow meter is specifically designed to withstand outdoor conditions. Its waterproof rating ensures reliable operation even in wet or damp environments, making it suitable for outdoor applications such as irrigation systems and wastewater management.

    However, it's essential to consider the environmental conditions of the specific outdoor application where you intend to use the flow meter. Factors such as temperature fluctuations, exposure to direct sunlight, dust, and other environmental elements can affect the performance and lifespan of the flow meter.
